Atomization Inspection

Inspect the atomization status.
- If not normal, replace the fuel injector. (See FUEL INJECTOR REMOVAL/INSTALLATION .)

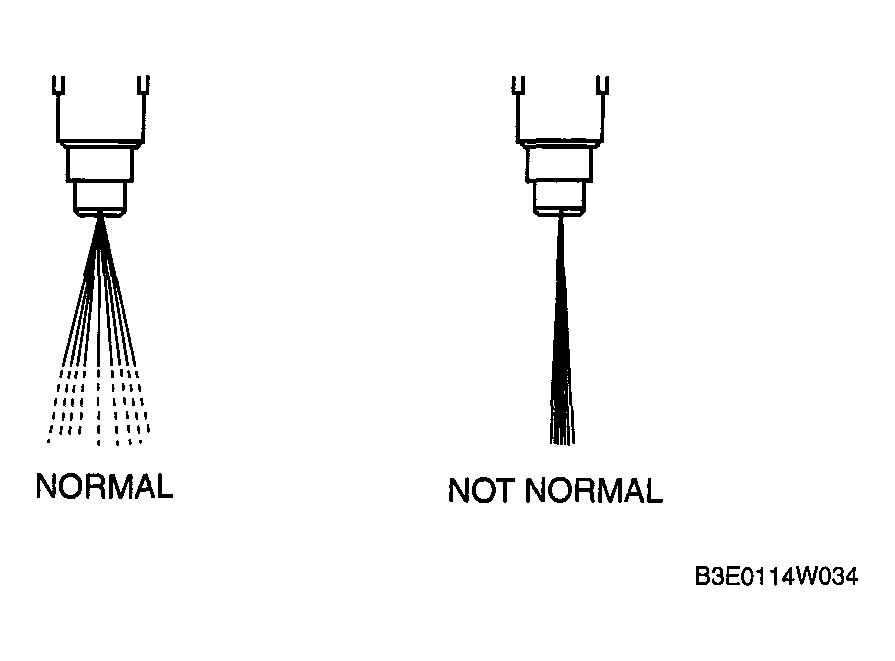

Fig 1: Inspecting Atomization Status
Courtesy of MAZDA MOTORS CORP.
