Quick Diagnostic Table

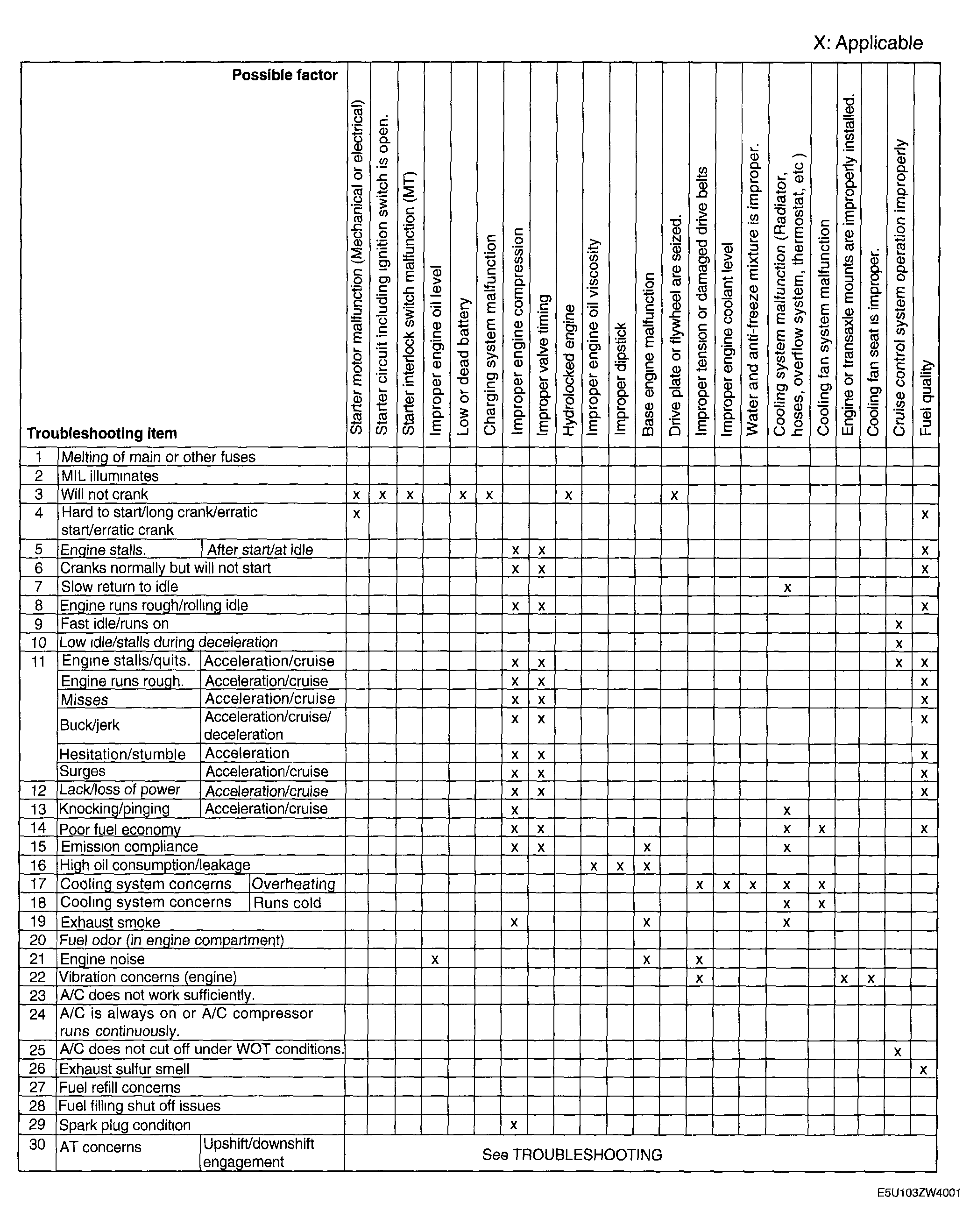

Fig 1: Quick Diagnostic Table (1 Of 4)
G04317755Courtesy of MAZDA MOTORS CORP.

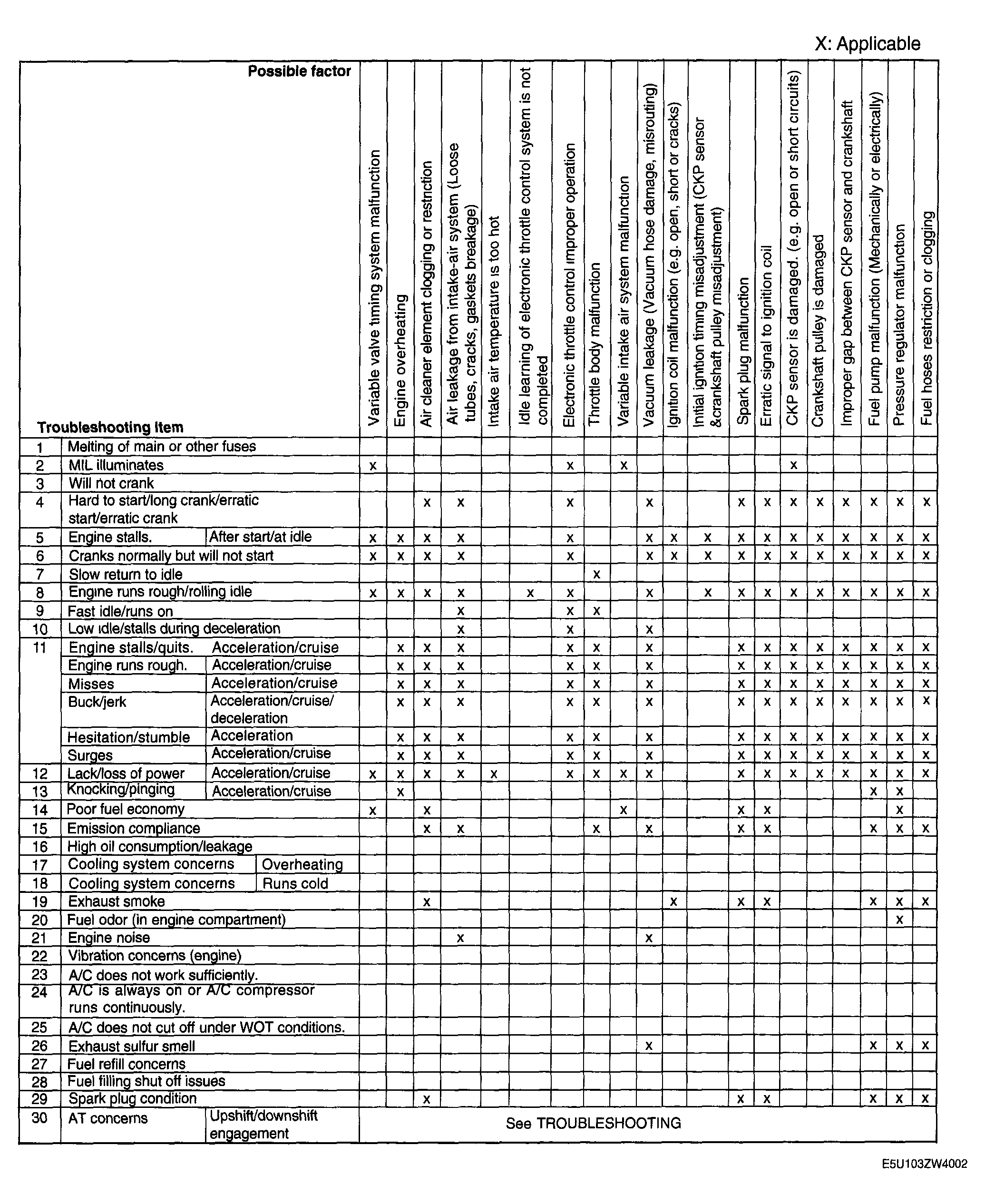

Fig 2: Quick Diagnostic Table (2 Of 4)
G04317756Courtesy of MAZDA MOTORS CORP.

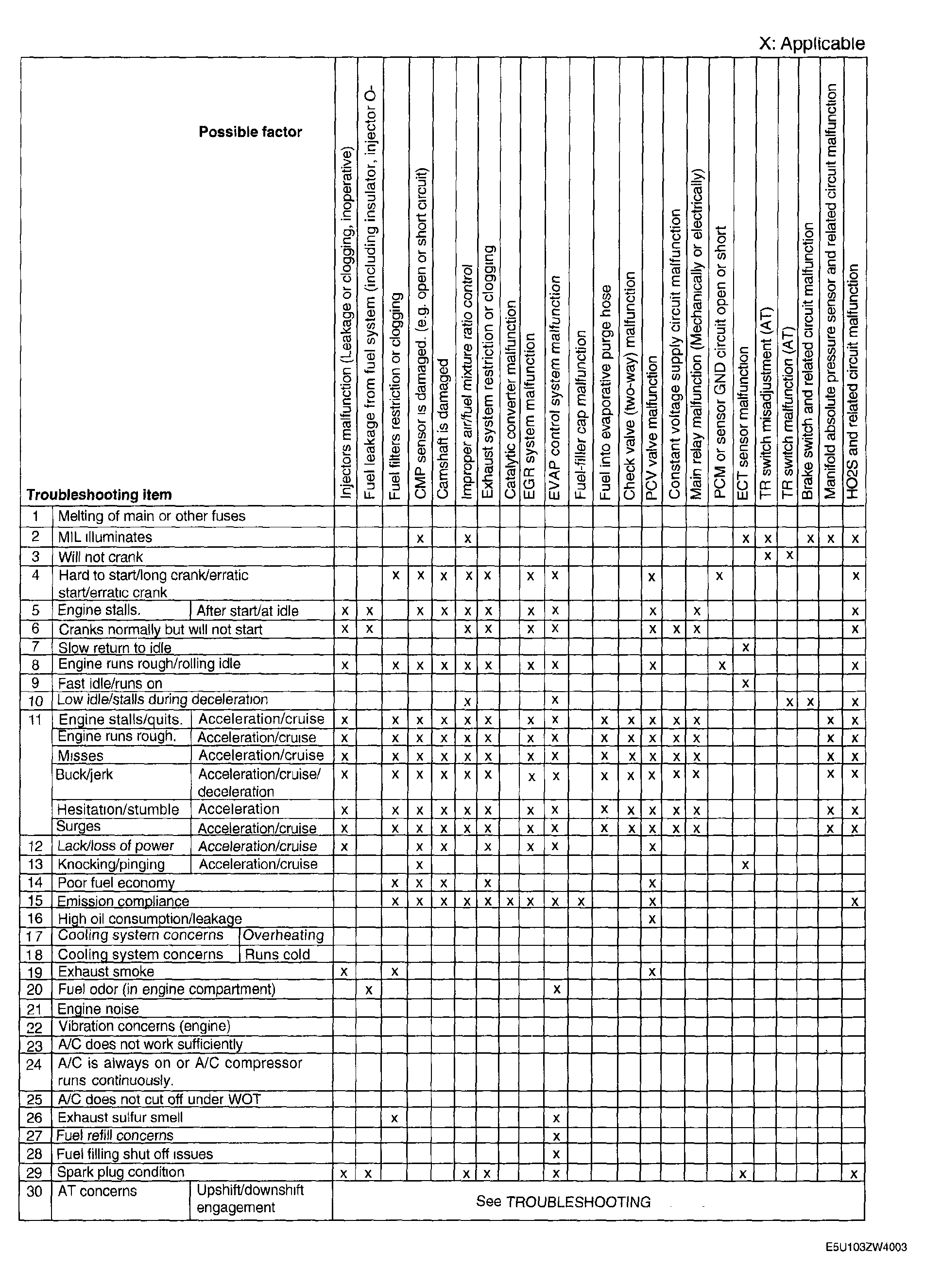

Fig 3: Quick Diagnostic Table (3 Of 4)
G04317757Courtesy of MAZDA MOTORS CORP.

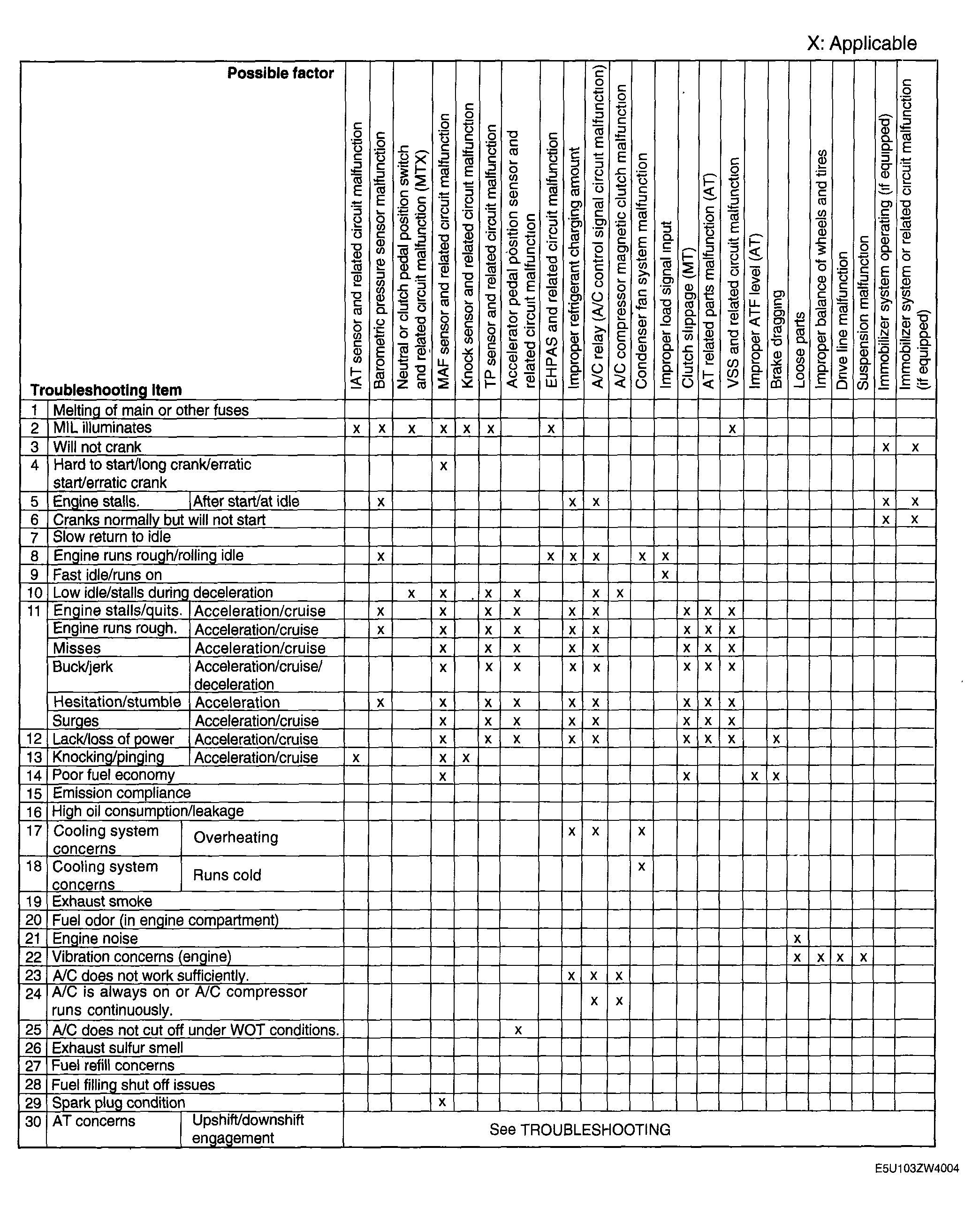

Fig 4: Quick Diagnostic Table (4 Of 4)
G04317758Courtesy of MAZDA MOTORS CORP.
