Lead Terminal Repair

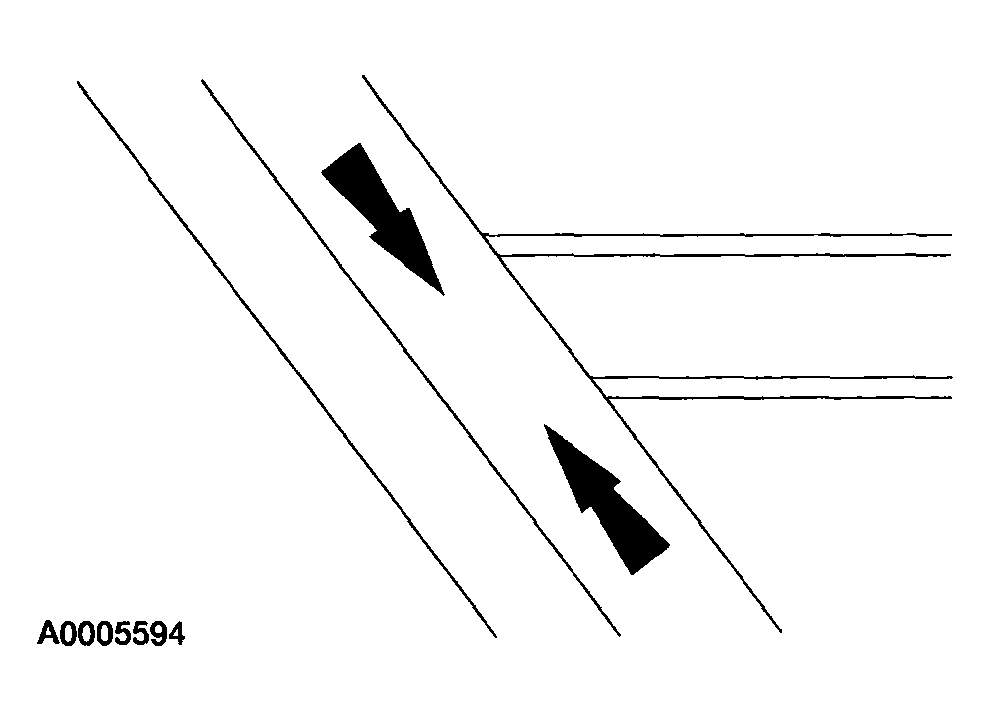

Fig 1: Cleaning Bus Bar Area

Courtesy of MAZDA MOTORS CORP.

NOTE:

Clean the bus bar in the area to be repaired with steel wool (3/0 to 4/0 grade).

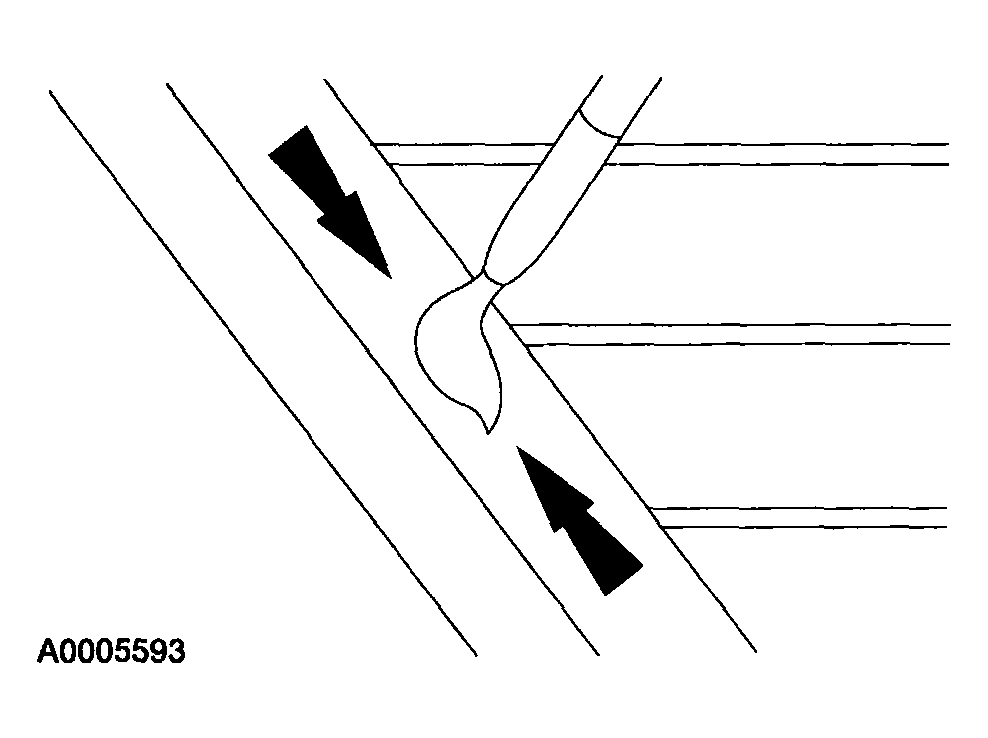

Fig 2: Applying Coats Of Rear Window Defroster Repair To Surface
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Allow 10 minutes of drying time between the coats.
Apply three coats of rear window defroster repair to the surface.

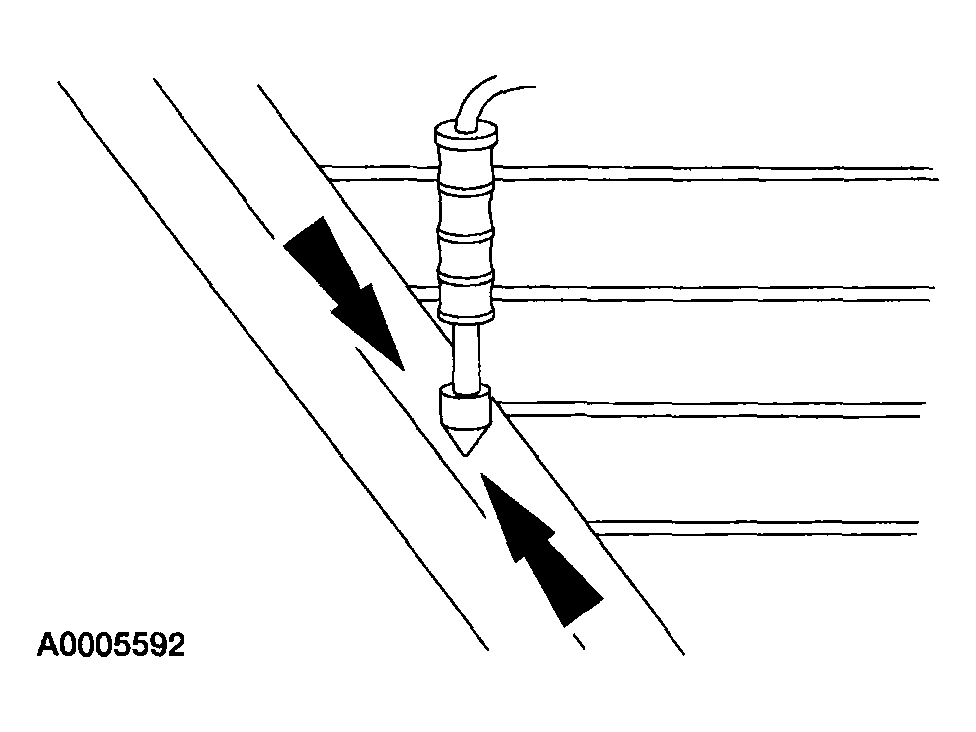

Fig 3: Identifying Tin Bus Bar Repair Area With Solder
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not overheat the rear window glass or damage to the rear window glass may occur.
Tin the bus bar repair area with solder.
CAUTION:
- To prevent overheating the rear window glass, remove the soldering gun as soon as the solder flows.

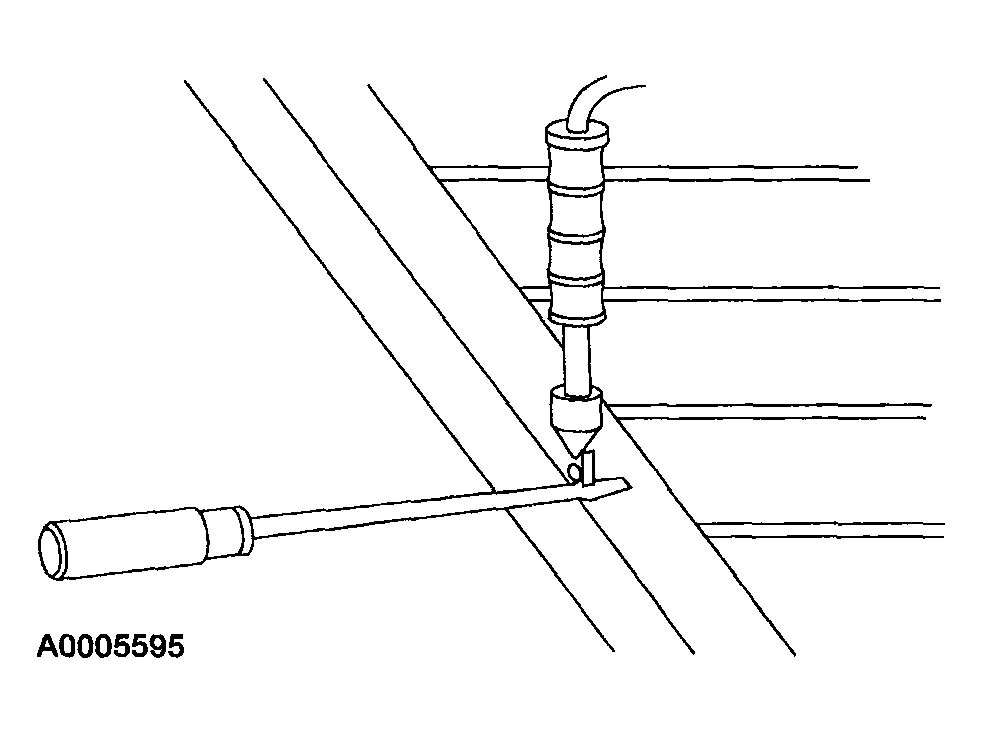

Fig 4: Preheating Rear Window Glass In Area To Be Repaired Using Special Tool

Courtesy of MAZDA MOTORS CORP.

Preheat the rear window glass in the area to be repaired using the special tool and solder the terminal to the bus bar.
NOTE:
- Turn the heated rear window switch ON for five minutes prior to the final inspection of the repair.
Apply rear window defroster repair to the area as needed.
