Home >> Mazda >> 2006 >> Tribute s, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator - 2.3L >> Notes

Generator - 2.3L: Notes

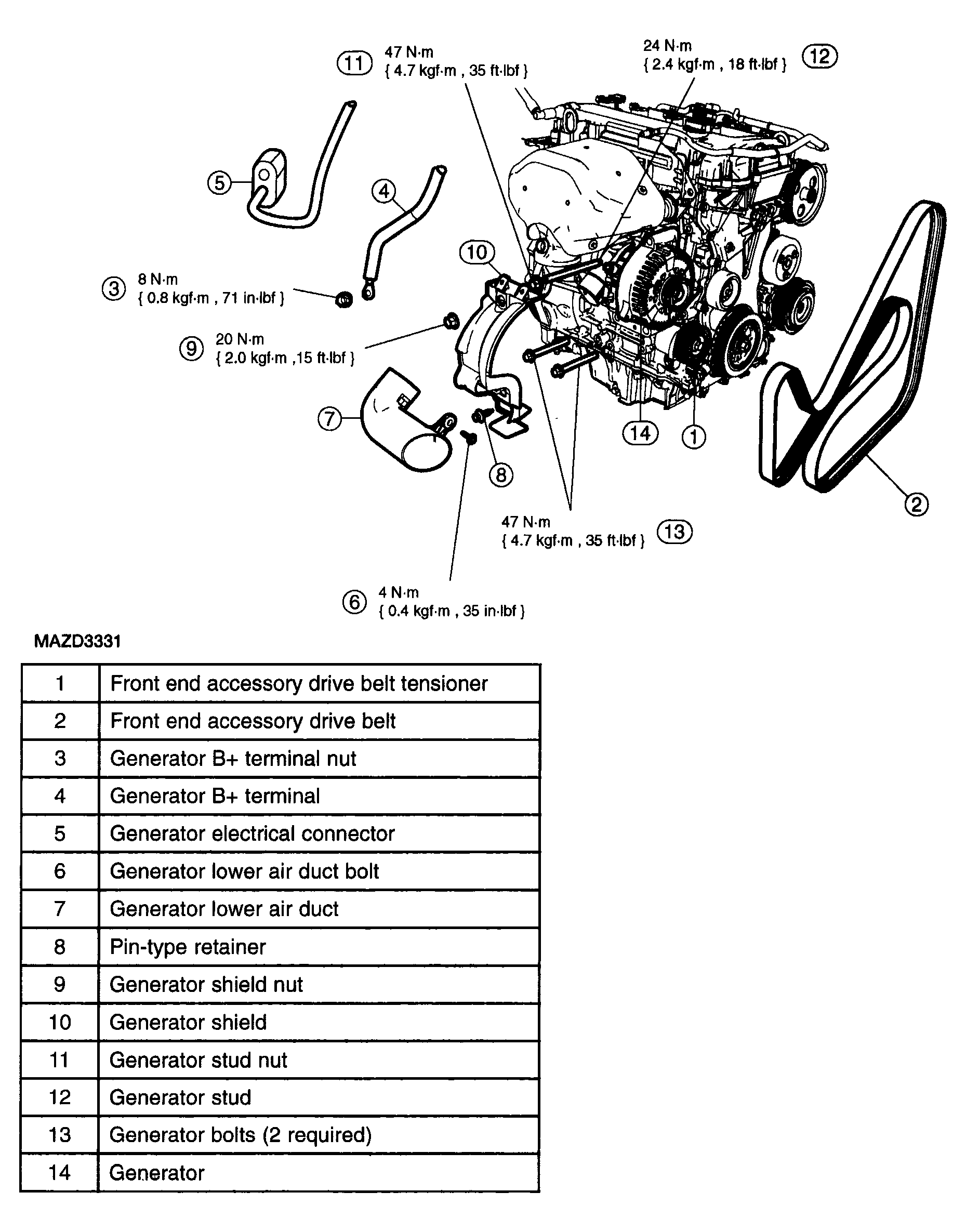

Fig 1: Removing/Installing Generator With Torque Specifications - 2.3L

G04320237

Courtesy of MAZDA MOTORS CORP.
