Home >> Mazda >> 2006 >> Tribute s, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Camshaft Position (CMP) Sensor - 2.3L >> Notes

Camshaft Position (CMP) Sensor - 2.3L: Notes

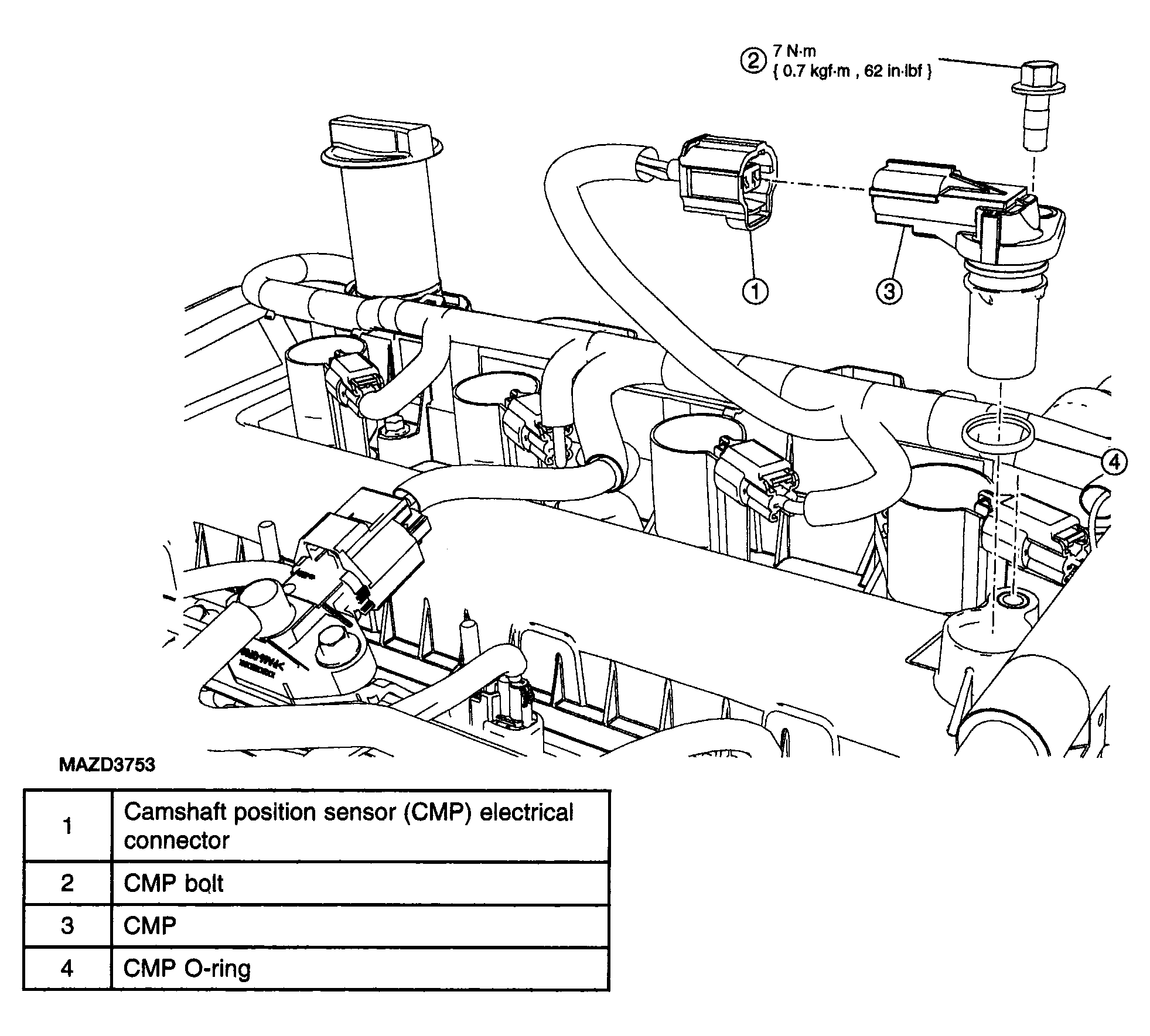

Fig 1: Removing/Installing Camshaft Position (CMP) Sensor With Torque Specifications - 2.3L

G04320310

Courtesy of MAZDA MOTORS CORP.
