Control System Wiring Diagram

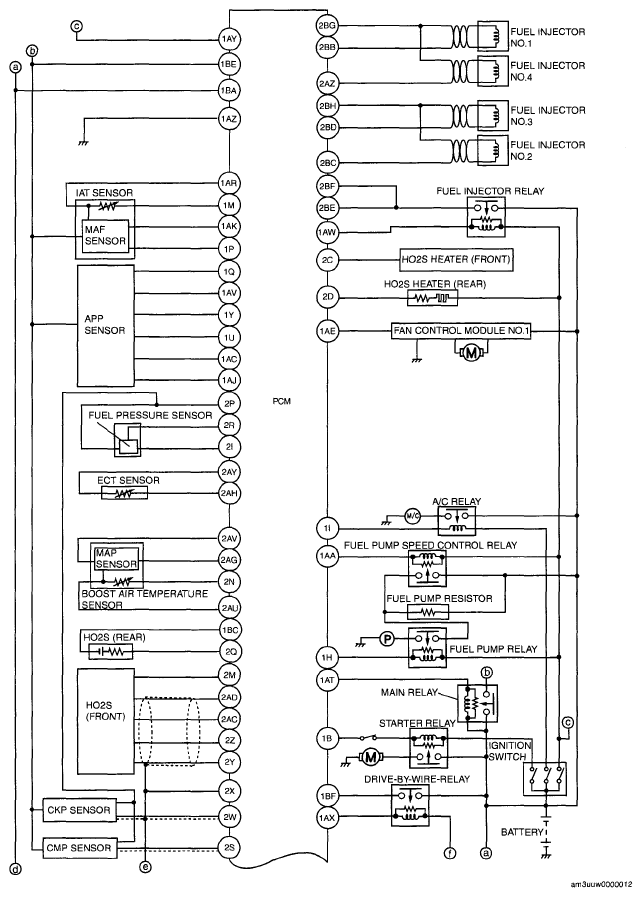

Fig 1: Control System Wiring Diagram (1 Of 2)

G04955292

Courtesy of MAZDA MOTORS CORP.

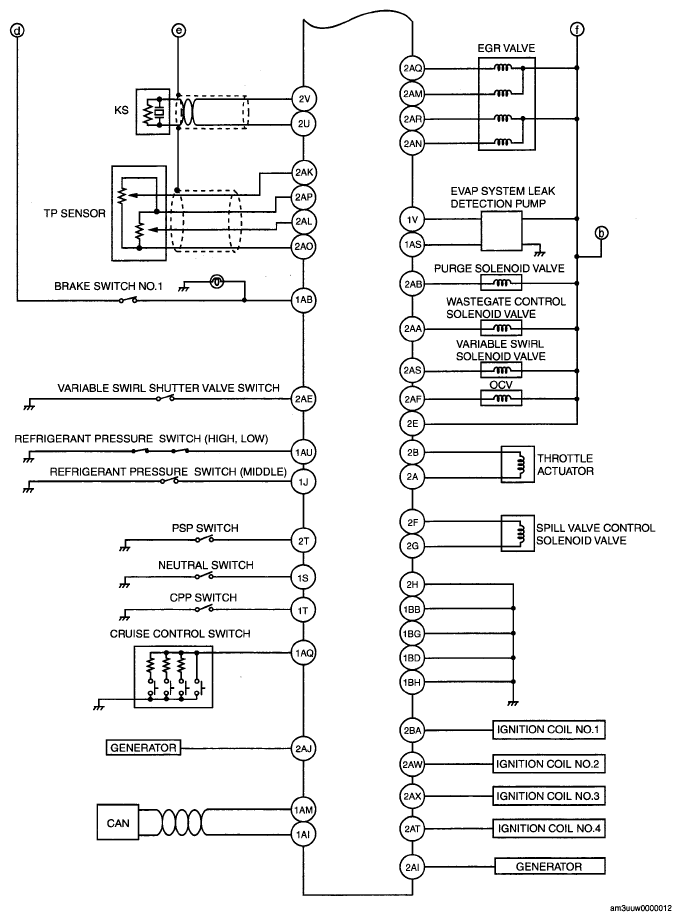

Fig 2: Control System Wiring Diagram (2 Of 2)

G04954336

Courtesy of MAZDA MOTORS CORP.
