Engine Control System (LF, L3)
>>
Control System Diagram
>>
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

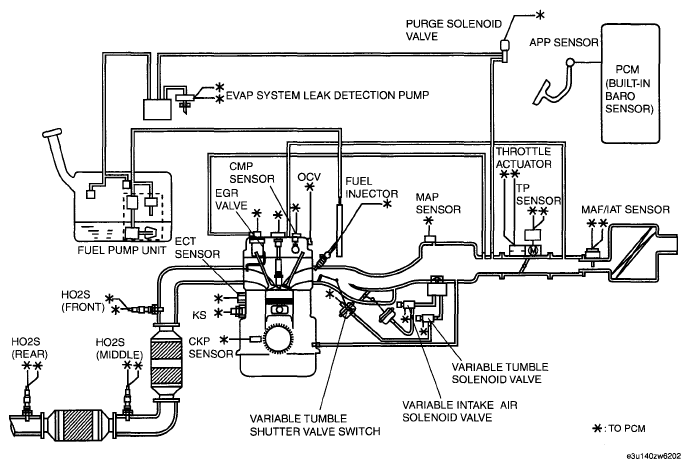

Fig 1: Control System Diagram - California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
