Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION. )
  3. Remove the front door speaker. (See FRONT DOOR TRIM REMOVAL/INSTALLATION. )
  4. Remove the screws.
  5. Disconnect the connector.
  6. Remove the keyless beeper from the speaker installation hole.

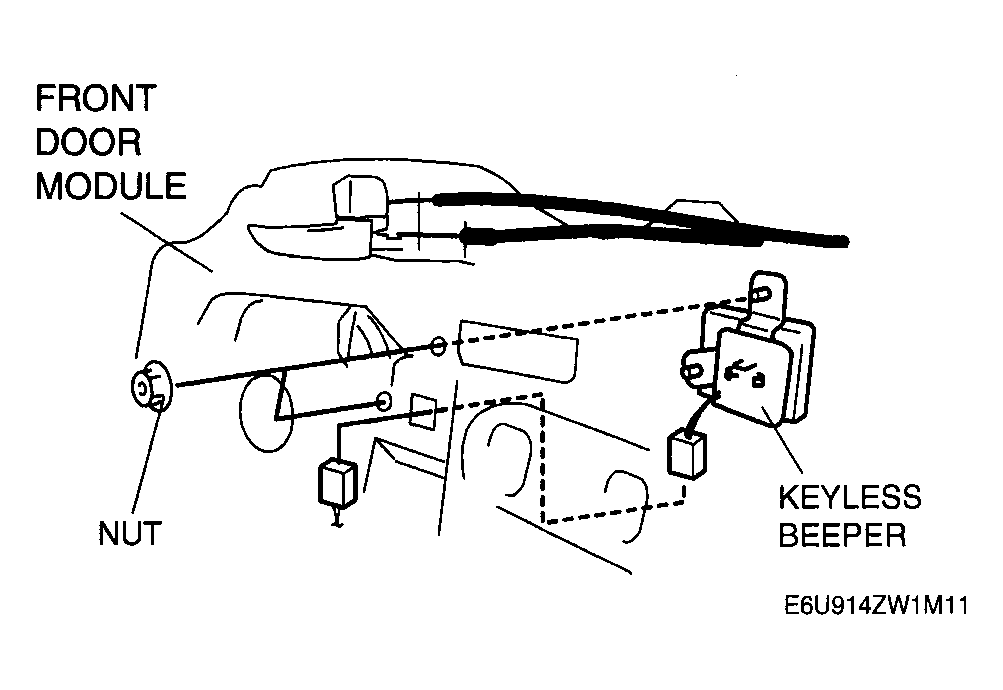

    Fig 1: Keyless Beeper & Front Door Module
    G04327344Courtesy of MAZDA MOTORS CORP.
