Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION. )
  3. Disconnect the keyless receiver module connector.
  4. Remove the nut, then remove the keyless receiver.
  5. Install in the reverse order of removal.

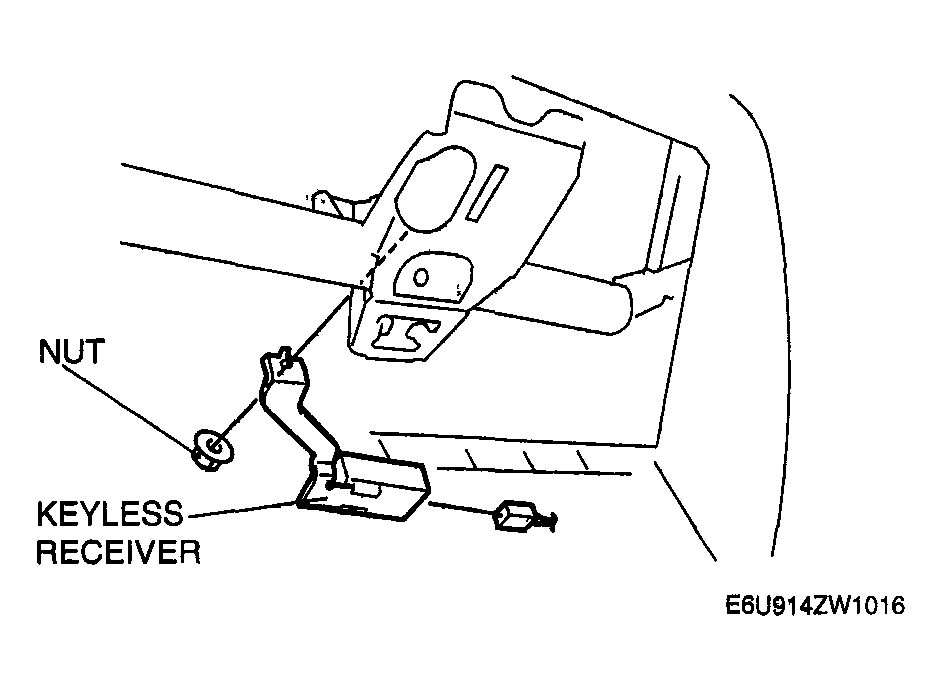

    Fig 1: Keyless Receiver
    G04327337Courtesy of MAZDA MOTORS CORP.
