Request Switch Inspection

  1. Inspect for continuity between request switch terminals A and B.
    • If not as specified, replace the request switch.

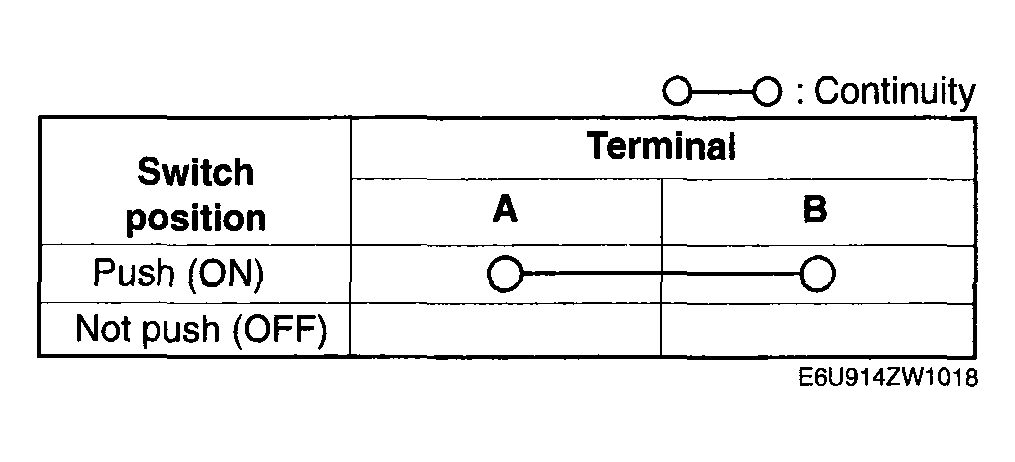

      Fig 1: Continuity Table
      G04327347Courtesy of MAZDA MOTORS CORP.

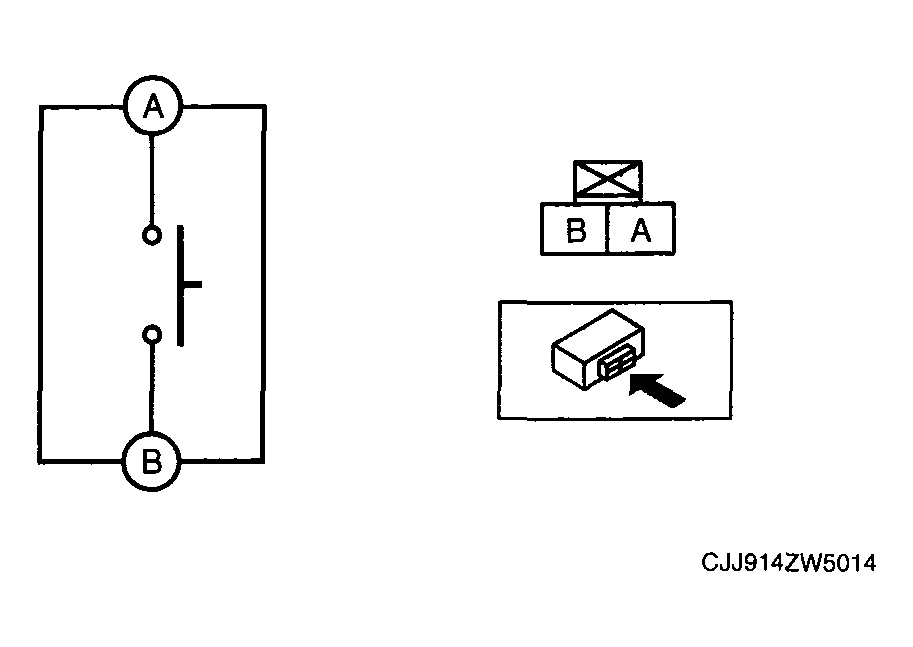

      Fig 2: Identifying Request Switch Connector
      G04327348Courtesy of MAZDA MOTORS CORP.
