Home >> Mazda >> 2007 >> 6 Mazdaspeed >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Power Systems >> Main Fuse Removal/Installation >> Notes

Main Fuse Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

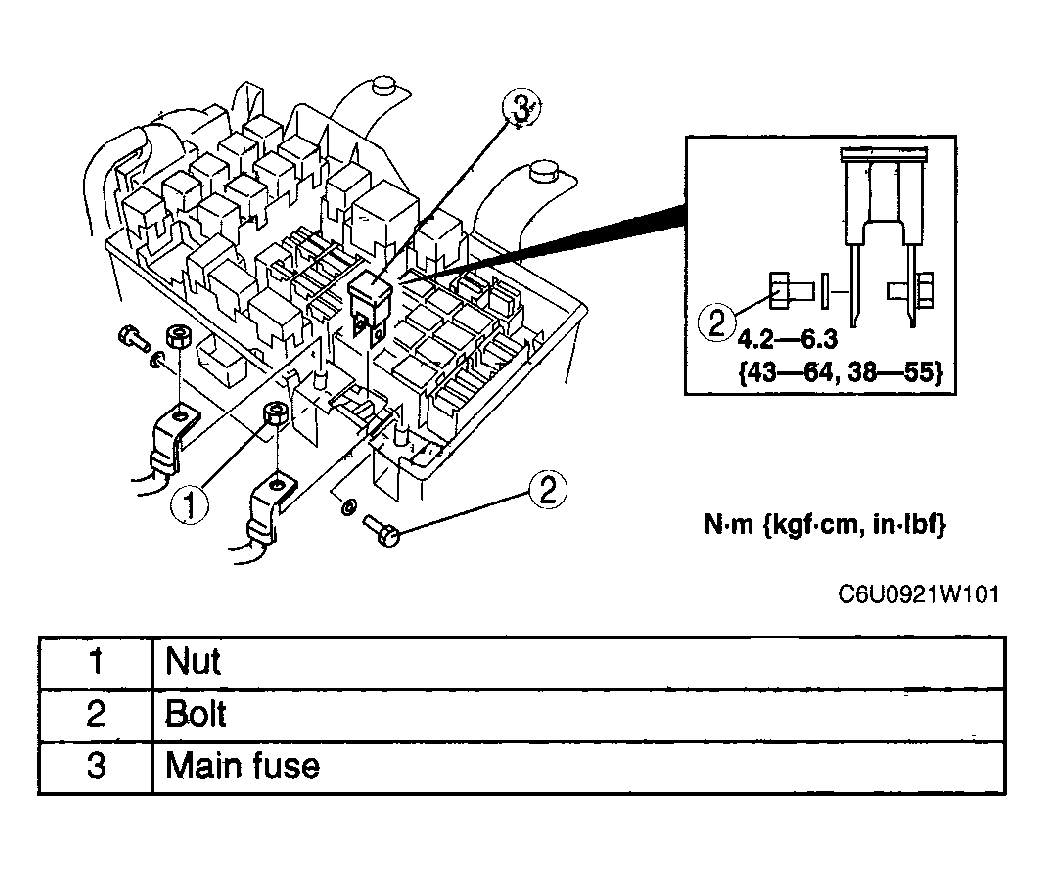

    Fig 1: Main Fuse Block & Torque Specification
    G04327702Courtesy of MAZDA MOTORS CORP.
