Home >> Mazda >> 2007 >> 6 Mazdaspeed >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Power Outer Mirror Disassembly/Assembly >> Cover Disassembly Note

Cover Disassembly Note

  1. Pull off the tab A with a screwdriver and press the tab B downward.

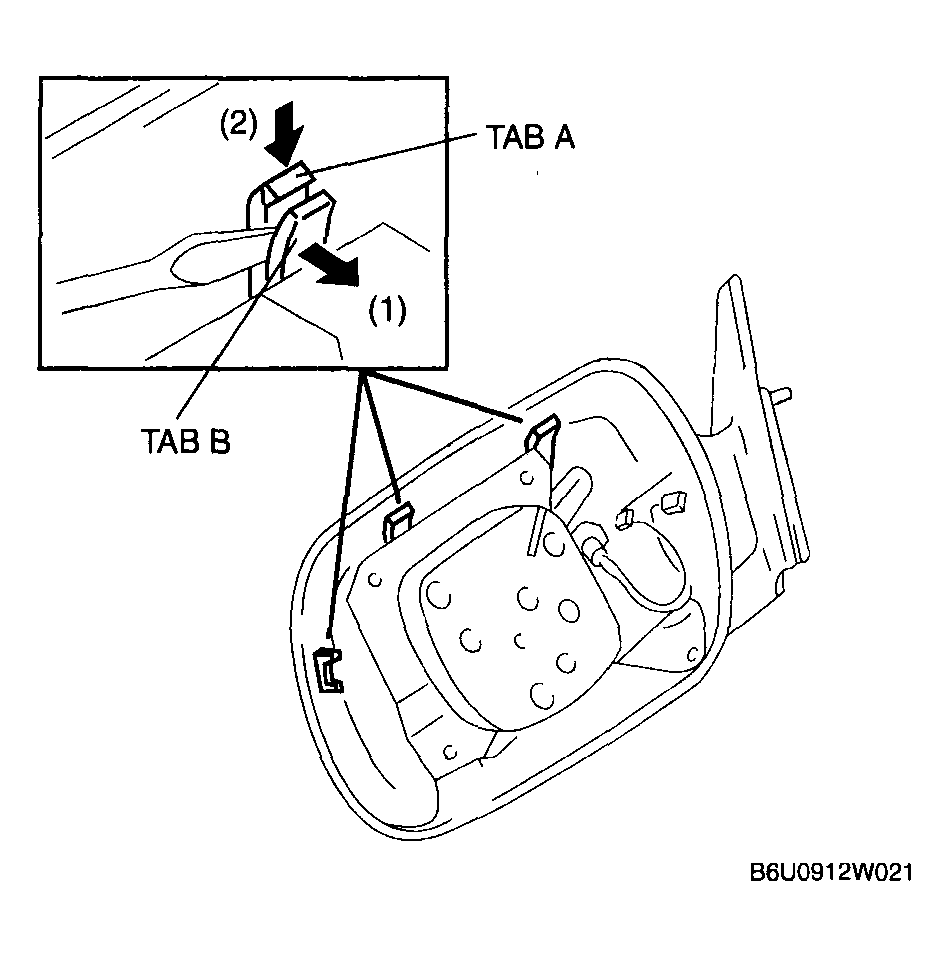

    Fig 1: Pulling Off Tab With Screwdriver
    G04327226Courtesy of MAZDA MOTORS CORP.
