Brake Pipe Installation Note

  1. When installing the brake pipe, align the marks made before removal with the ABS/TCS HU/CM as shown in the figure.

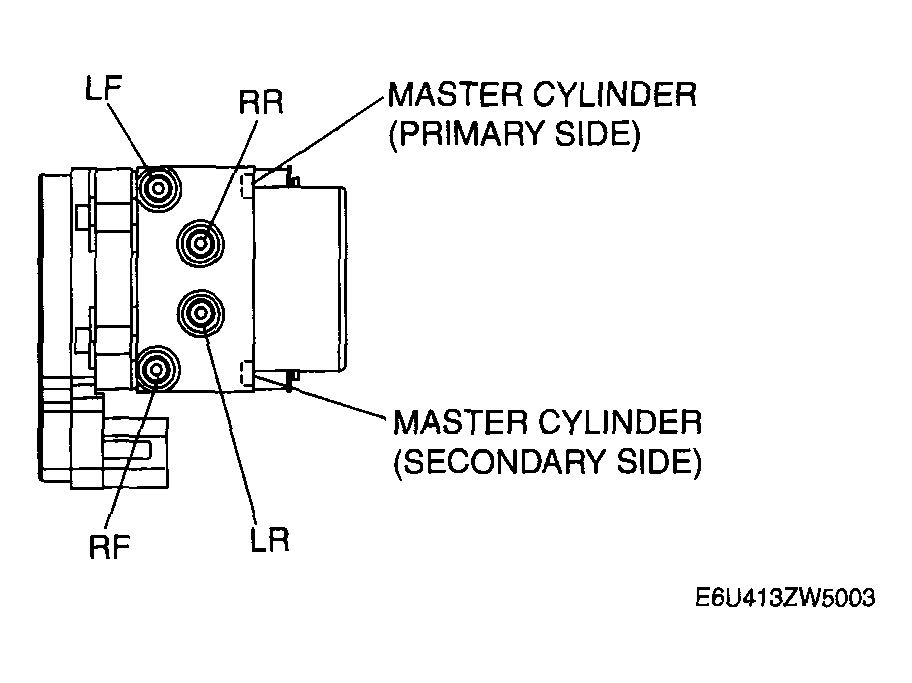

    Fig 1: Installing Brake Pipe
    G04325962Courtesy of MAZDA MOTORS CORP.
