Information Display Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the center panel module. (See CENTER PANEL UNIT REMOVAL/INSTALLATION. )
  3. Remove the center box.
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

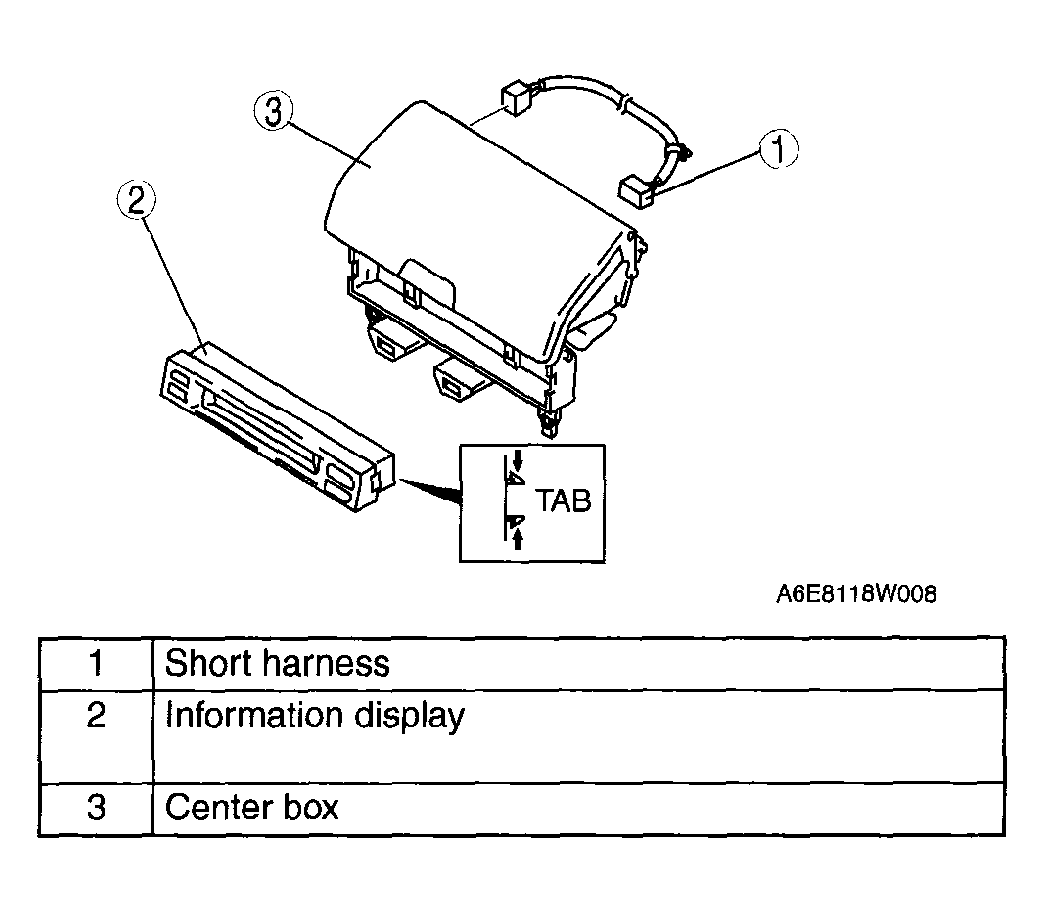

    Fig 1: Removing Information Display
    G04327801Courtesy of MAZDA MOTORS CORP.
