Check code 01

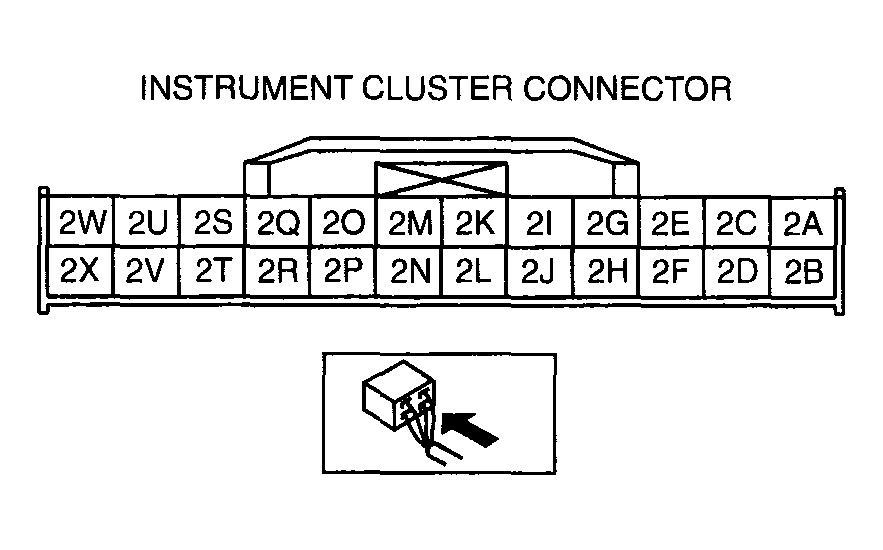

CHECK CODE 01 REFERENCE (BUCKLE SWITCH - DRIVER'S SIDE)

Check code 01 Buckle switch (driver's side) on/off signal
G04327728
CHECK CODE 01 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION

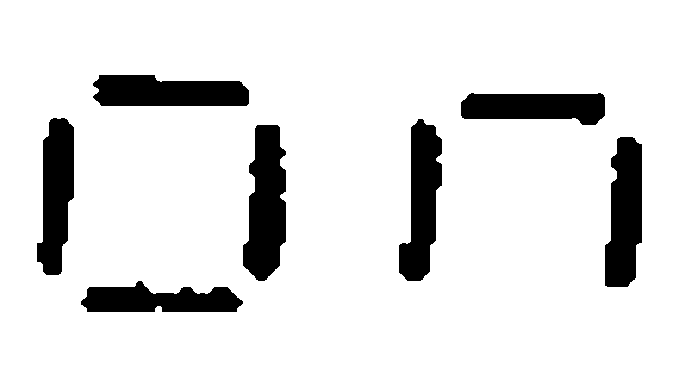

1 Unfasten driver's side seat belt. (Buckle switch on).
G04327729
 Go to next step.

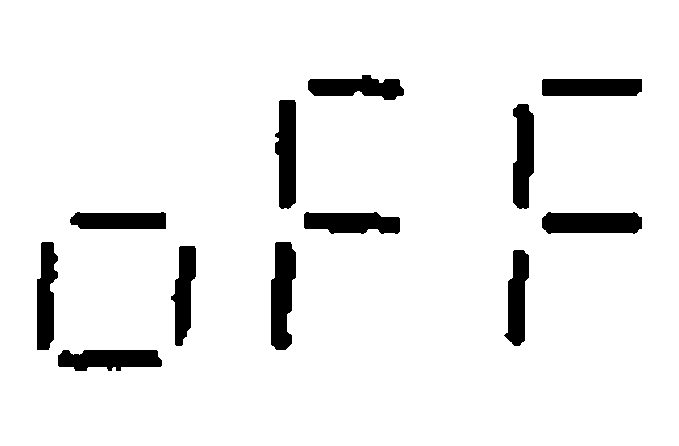

G04327730
 Measure voltage at instrument cluster terminal 2G. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Buckle switch
    • Wiring harness (Buckle switch-SAS control module-instrument cluster)

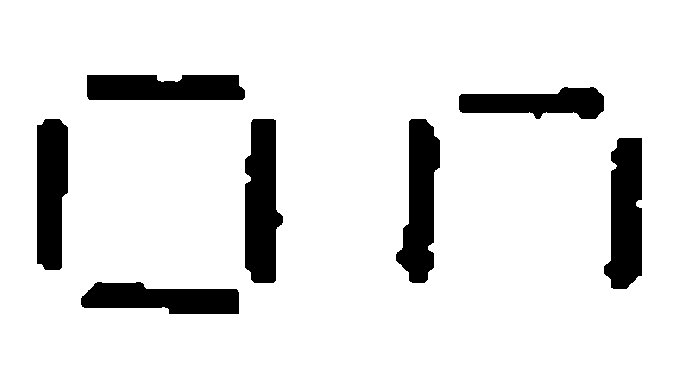

2 Fasten driver's side seat belt. (Buckle switch off).
G04327731
 Measure voltage at instrument cluster terminal 2G. Is voltage B+  ?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Buckle switch
    • Wiring harness (Buckle switch-SAS control module-instrument cluster)

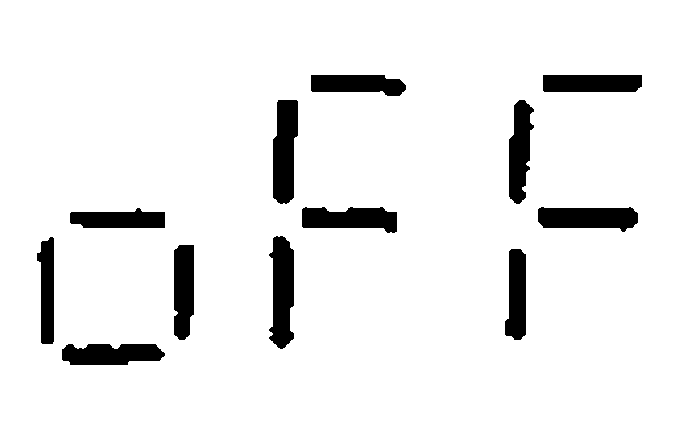

G04327732
 Input signal to instrument cluster is okay.
