Check code 04

CHECK CODE 04 REFERENCE (DOOR SWITCH)

Check code 04 Door switch on/off signal

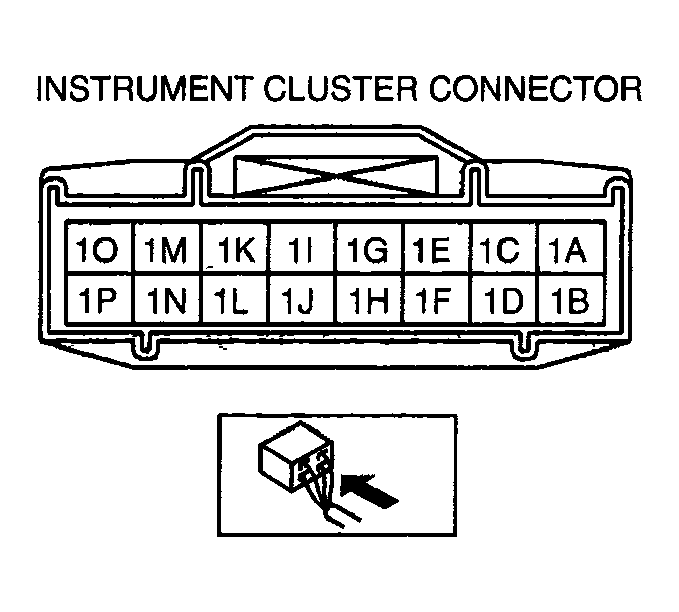

G04327733
CHECK CODE 04 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION
1 Open driver-side door. (Door switch on).

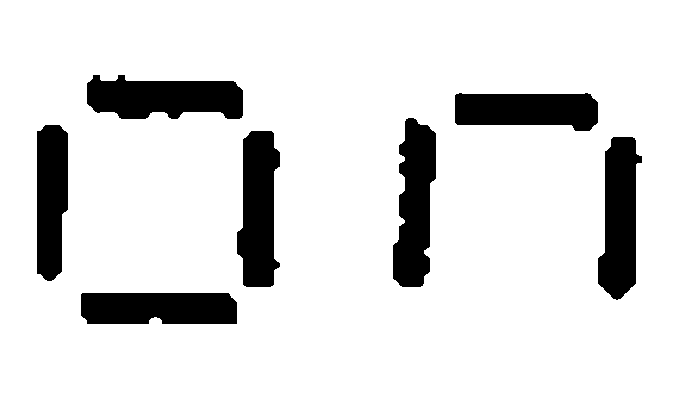

G04327734

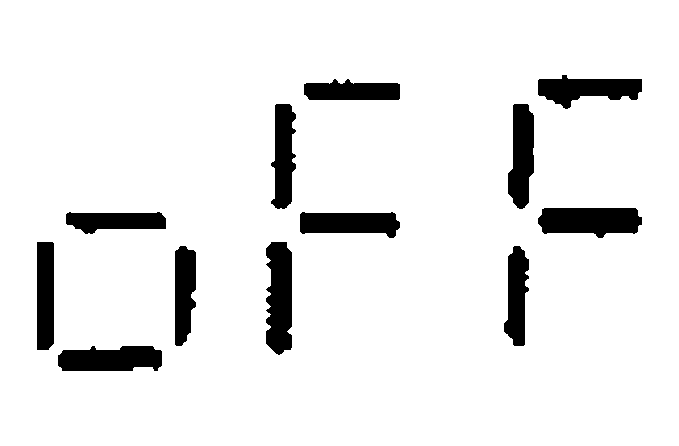

 Close driver-side door, then go to next step.
G04327735
 Measure voltage at instrument cluster terminal 1 J. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Door switch
    • Wiring harness (Instrument cluster-BCM-door switch)
2 Close driver-side door. (Door switch off).

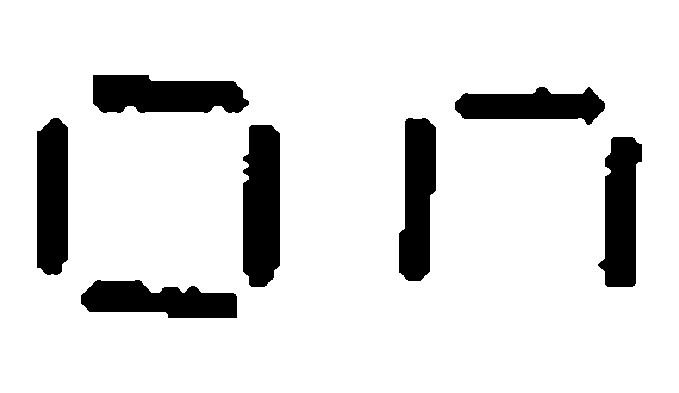

G04327736
 Measure voltage at instrument cluster terminals 1J. Is voltage B+  ?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Door switch
    • Wiring harness (Instrument cluster-BCM-door switch)

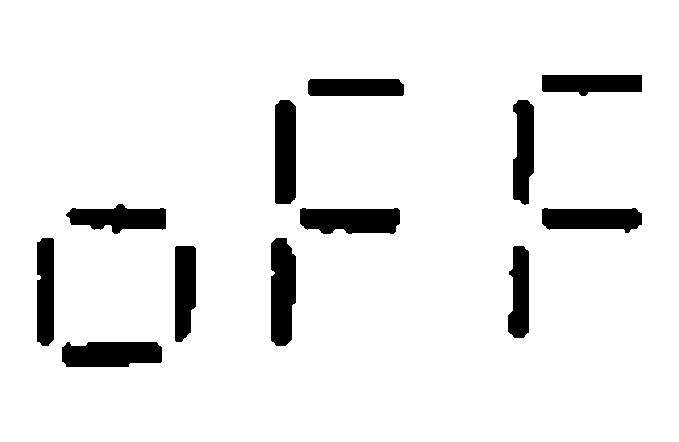

G04327737
 Input signal to instrument cluster is okay.
