Check code 08

CHECK CODE 01 REFERENCE (TNS RELAY)

Check code 08 TNS relay on/off signal

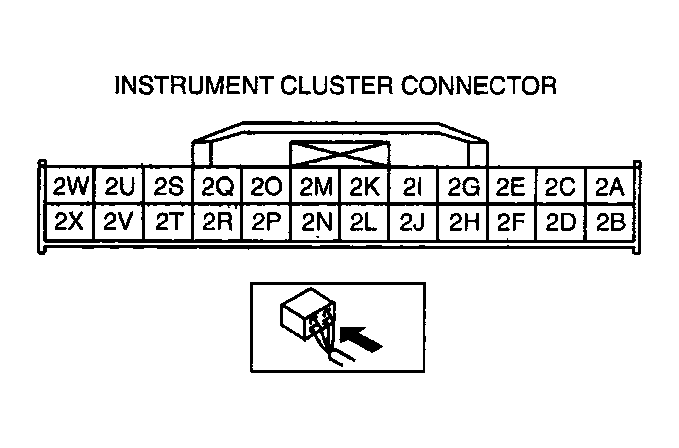

G04327738
CHECK CODE 08 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION
1 Turn headlight switch to TNS position. (TNS relay on).

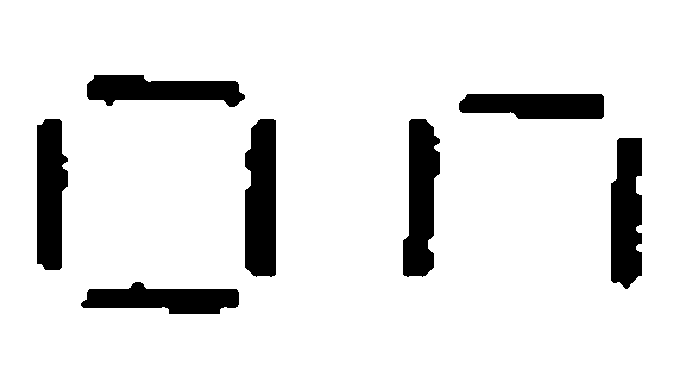

G04327739
 Go to next step.

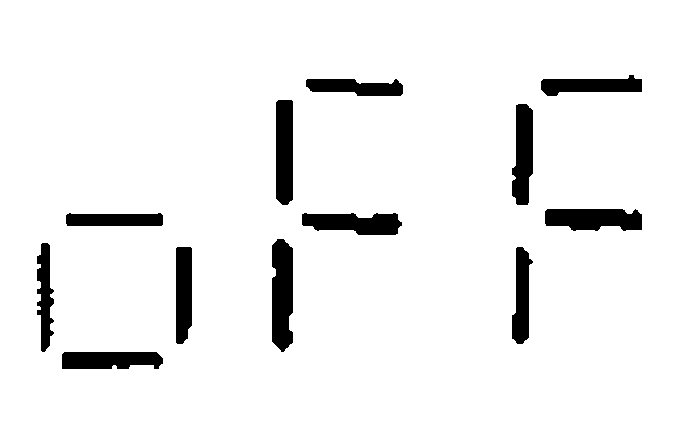

G04327740
 Measure voltage at instrument cluster terminal 2K. Is voltage B+  ?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • TNS relay
    • Wiring harness (Battery-TNS relay-instrument cluster)
2 Turn headlight switch off. (TNS relay off).

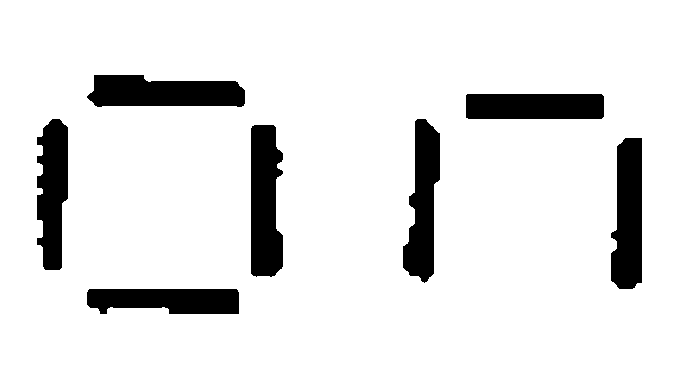

G04327741
 Measure voltage at instrument cluster terminal 2K. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • TNS relay
    • Wiring harness (TNS relay-instrument cluster)

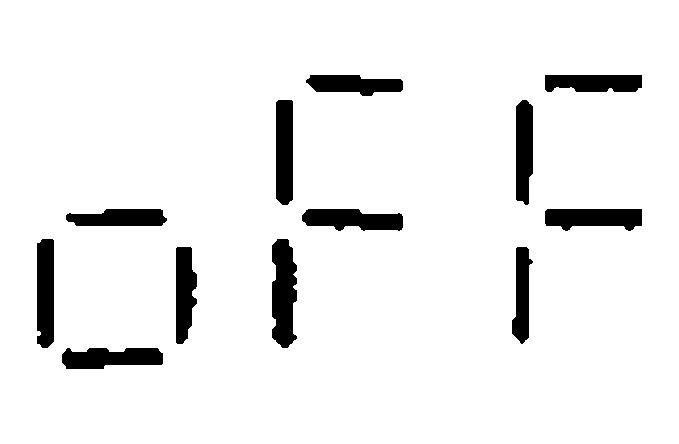

G04327742
 Input signal to instrument cluster is okay.
