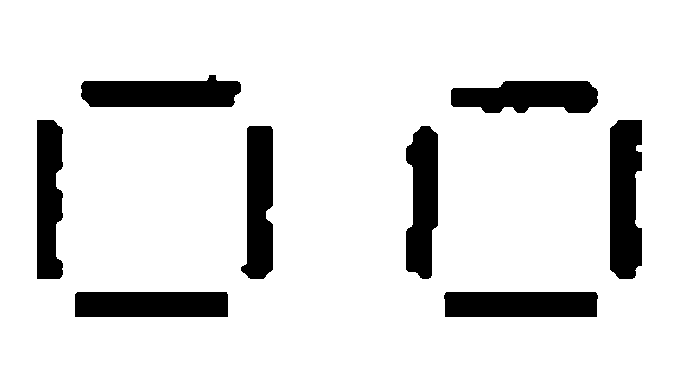

Check code 12
CHECK CODE 12 DIAGNOSTIC PROCEDURE
| Check code 12 | Operation signal to speedometer | ||
|---|---|---|---|
| INSPECTION | INDICATION | SITUATION | ACTION |
| Wait for 2 seconds after selecting check code 12. | Speedometer needle moves full scale then returns to 60 km/h or 60 MPH. | Speedometer is okay. | |
| Other than stated above. | Replace instrument cluster. | ||
| - | |||
