Check code 23

CHECK CODE 23 DIAGNOSTIC PROCEDURE

Check code 23  Operation signal to fuel gauge
INSPECTION INDICATION SITUATION ACTION
Wait for 2 seconds  after selecting check code 23.

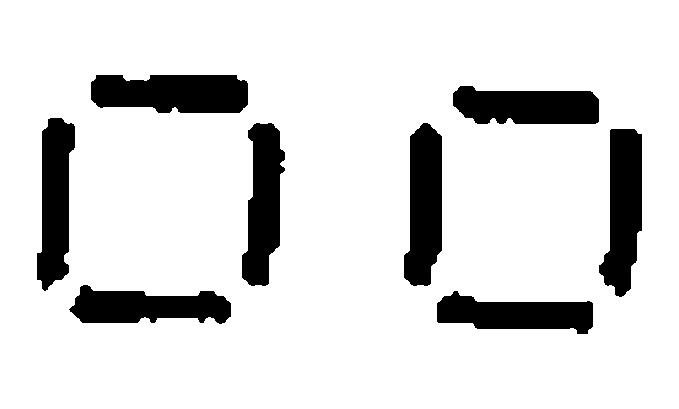

G04327755
 Fuel gauge indicates in following order every 2 seconds.
  • F --> 1/2 --> E --> F (fixed)
 Fuel gauge is okay.
Other than stated above. Replace instrument cluster.

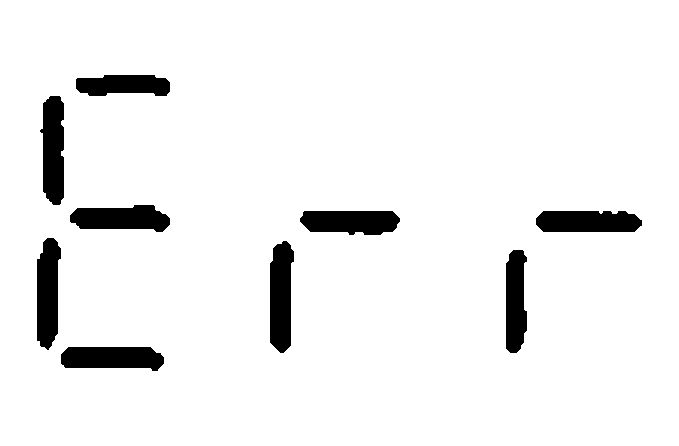

G04327756
 Replace instrument cluster.
