Check code 25

CHECK CODE 25 DIAGNOSTIC PROCEDURE

Check code 25  Operation signal to water temperature gauge
INSPECTION INDICATION SITUATION ACTION
Wait for 2 seconds  after selecting check code 25.

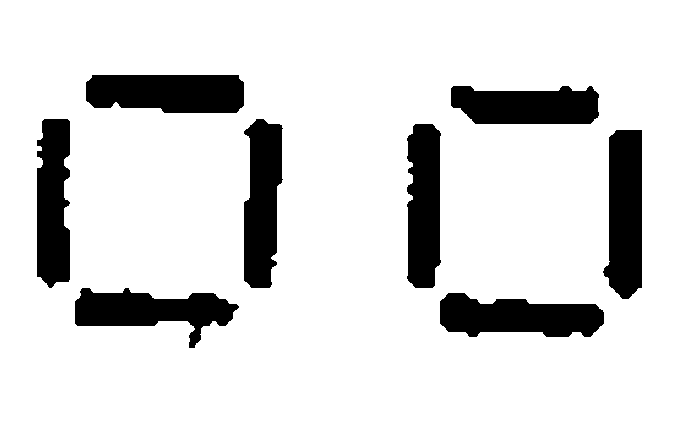

G04327757
 Water temperature gauge indicates in following order for every 2 seconds.
  • H --> Center --> C --> H (fixed)
 Water temperature gauge is okay.
Other than stated above. Replace instrument cluster.

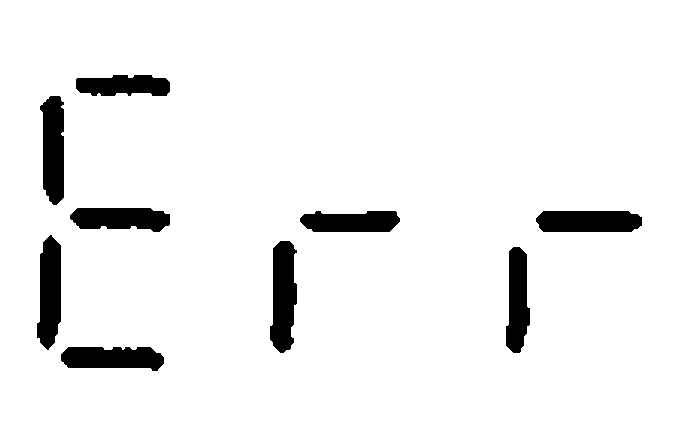

G04327758
 Replace instrument cluster.
