Check code 31

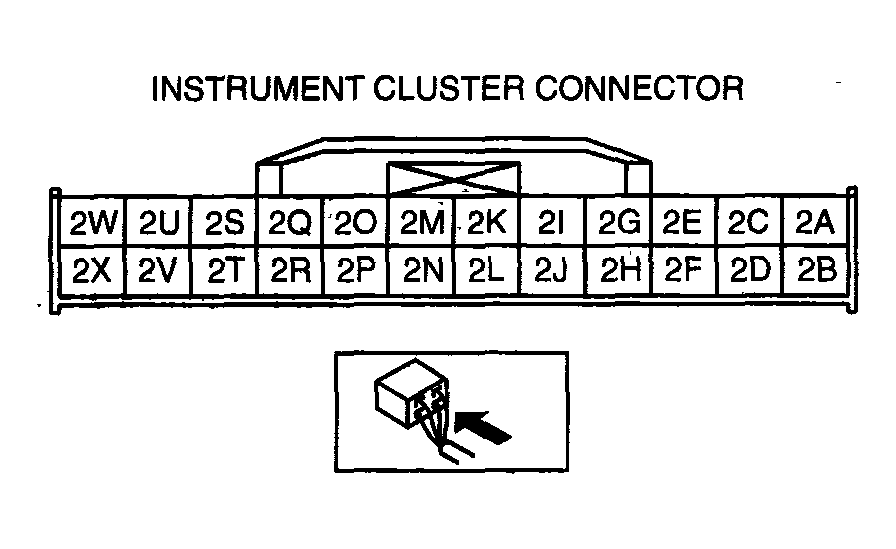

CHECK CODE 31 REFERENCE (KEY REMINDER)

Check code 31 Key reminder on/off signal
G04327760
CHECK CODE 31 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION

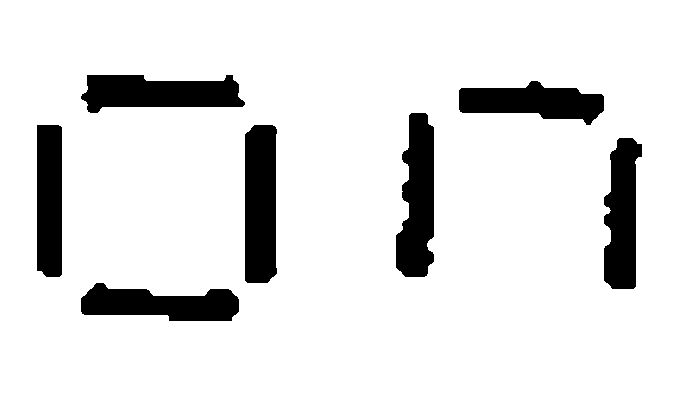

1 Remove key from steering lock and then insert key into steering lock after selecting check code 31. (Key reminder switch on).
G04327761

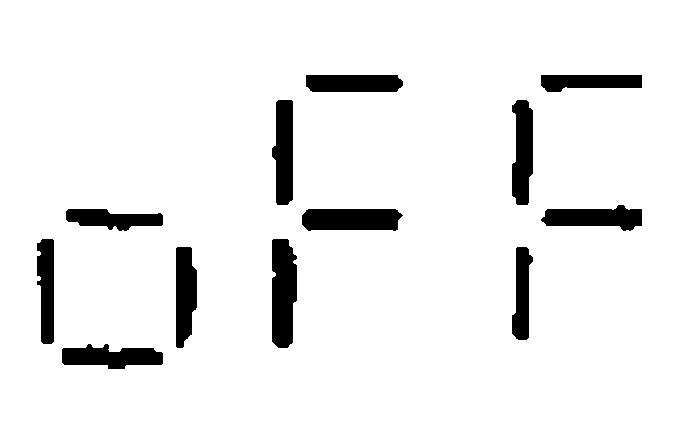

 Go to next step.
G04327762
 Measure voltage at instrument cluster terminal 2B. Is voltage B+?
  • If as specified, replace instrument cluster.
  • If not as specified, replace following parts.
    • Key reminder switch
    • Wiring harness (Battery-key reminder switch-instrument cluster)

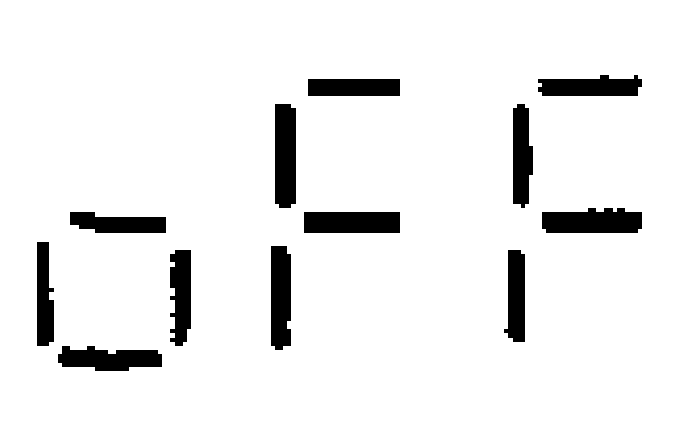

2 Remove key from steering lock (Key reminder switch off).
G04327763
 Measure voltage at instrument cluster terminal 2B. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Key reminder switch
    • Wiring harness (Key reminder switch-instrument cluster)
G04327764
 Input signal to instrument cluster is okay.
