Check code 55

CHECK CODE 55 REFERENCE (DIMMER CANCEL SWITCH)

Check code 55 Dimmer cancel switch on/off signal

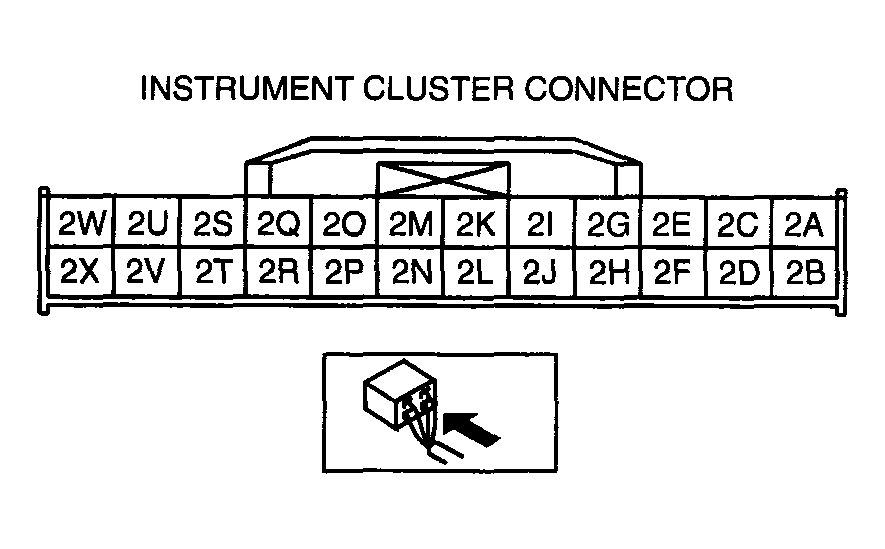

G04327770
CHECK CODE 55 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION
1 Turn the panel light control switch to the dimmer cancel position after selecting check code 55.

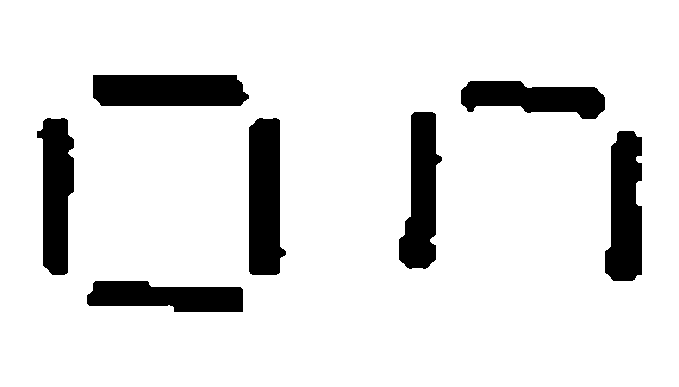

G04327771
 Go to next step.

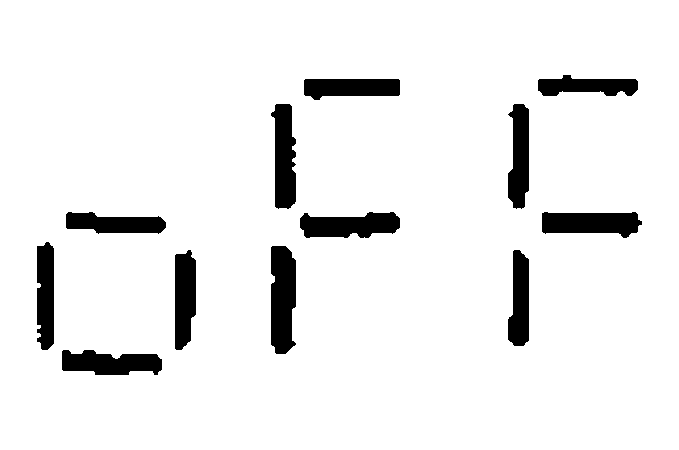

G04327772
 Measure voltage at instrument cluster terminal 2A. Is voltage 4 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Panel light control switch
    • Wiring harness (Panel light control switch-instrument cluster)
2 Turn the panel light control switch to the other position.

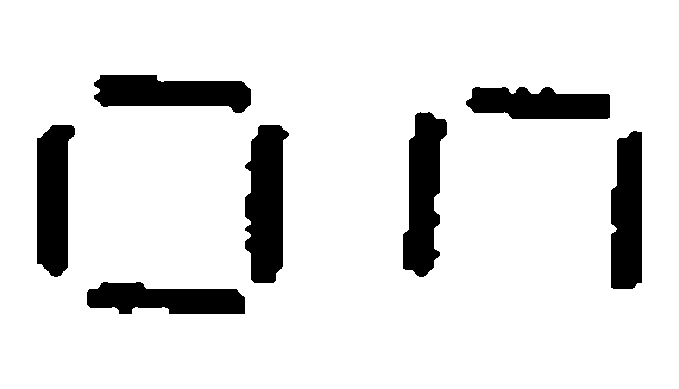

G04327773
 Measure voltage at instrument cluster terminal 2A. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Panel light control switch
    • Wiring harness (Panel light control switch-instrument cluster)

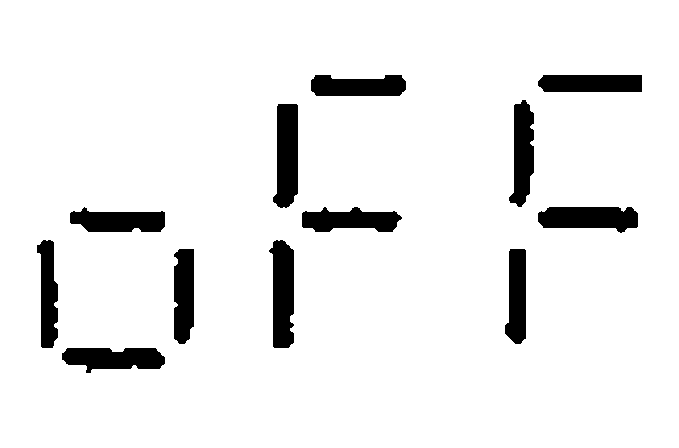

G04327774
 Input signal to instrument cluster is okay.
