Check code 58

CHECK CODE 58 REFERENCE (BUCKLE (PASSENGER'S SIDE) SWITCH)

Check code 58 Buckle (passenger's side) switch on/off signal

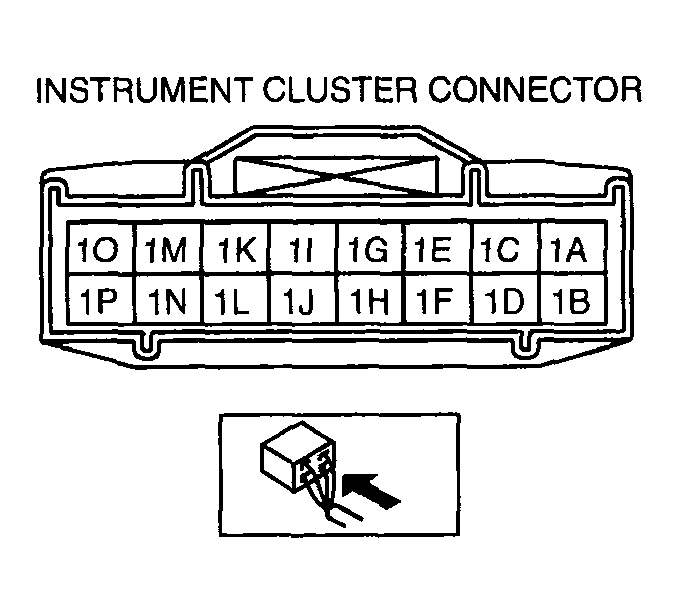

G04327775
CHECK CODE 58 DIAGNOSTIC PROCEDURE

STEP INSPECTION INDICATION ACTION
1 Seat one person in the passenger's seat, and unfasten passenger-side seat belt. (Seat weight sensor and buckle switch ON)

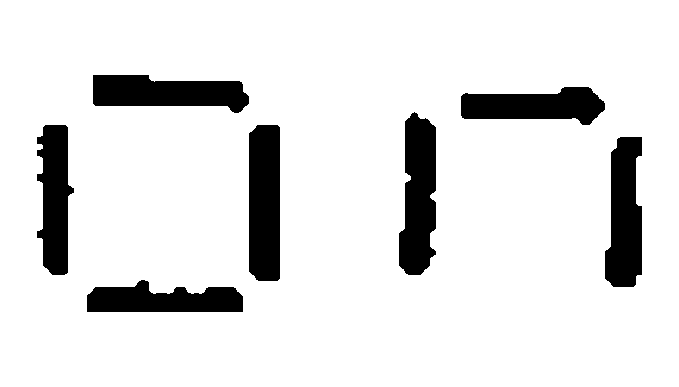

G04327776
 Go to next step.

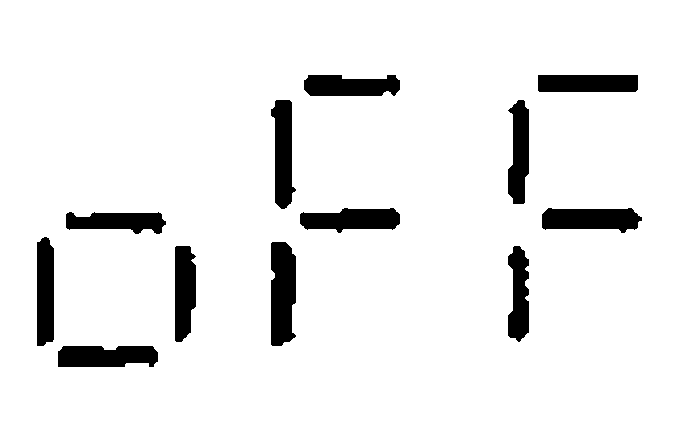

G04327777
 Measure voltage at instrument cluster terminal 1 A. Is voltage 0 V?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Buckle switch (passenger's side)
    • Seat weight sensor control module
    • Seat weight sensor
    • SAS control module
    • Wiring harness (Buckle switch (passenger's side)-SAS control module, seat weight sensor-Seat weight sense control module-SAS control module)
2 Seat one person in the passenger's seat, and fasten passenger-side seat belt. (Seat weight sensor ON and buckle switch OFF) Seat no person in the passenger's seat, and unfasten passenger-side seat belt. (Seat weight sensor OFF and buckle switch ON) Seat no person in the passenger's seat, and fasten passenger-side seat belt. (Seat weight sensor and buckle switch OFF)

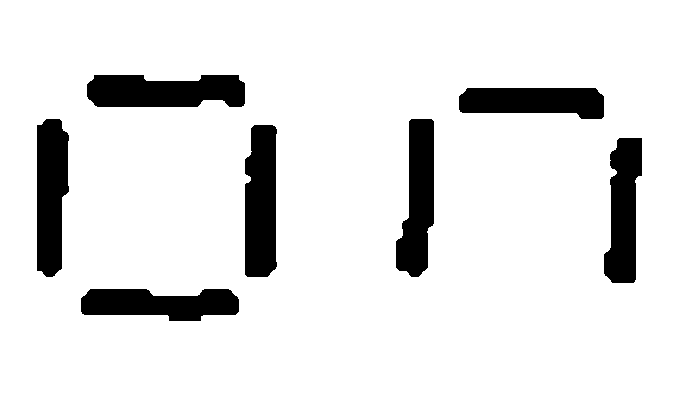

G04327778
 Measure voltage at instrument cluster terminal 1 A. Is voltage B+?
  • If as specified, replace instrument cluster.
  • If not as specified, inspect following parts.
    • Buckle switch (passenger's side)
    • Seat weight sensor control module
    • Seat weight sensor
    • SAS control module
    • Wiring harness (Buckle switch (passenger's side)-SAS control module, seat weight sensor-Seat weight sense control module-SAS control module)

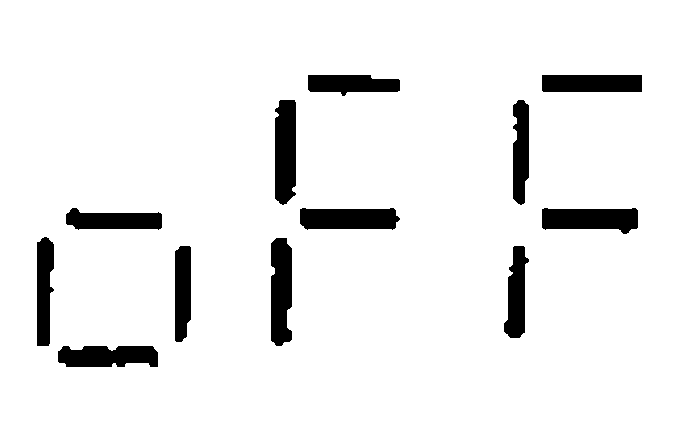

G04327779
 Input signal to instrument cluster is okay.
