Check code 59
CHECK CODE 59 DIAGNOSTIC PROCEDURE
| STEP | INSPECTION | INDICATION | ACTION |
|---|---|---|---|

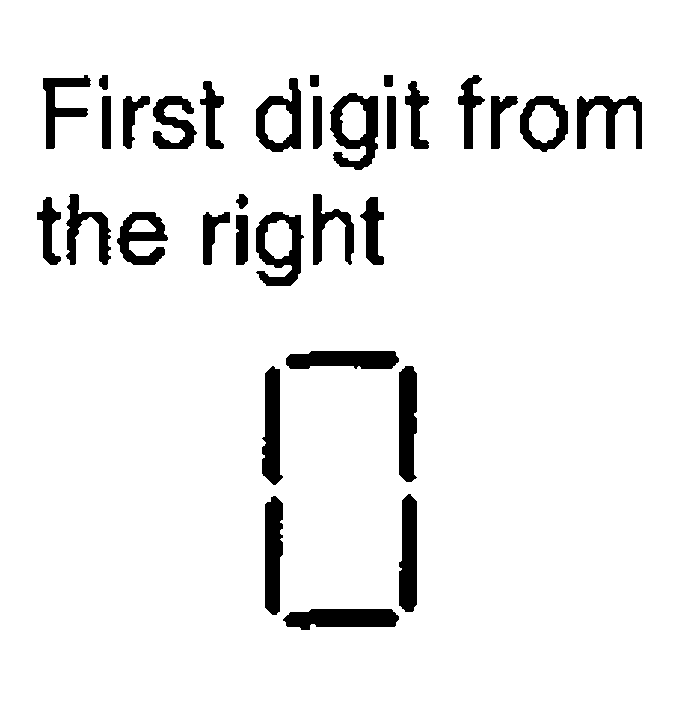

| 1 | The three digits number is indicated after selecting check code 59. Confirm the first digit from the right. | The CAN system is okay. Go to next step. |
|

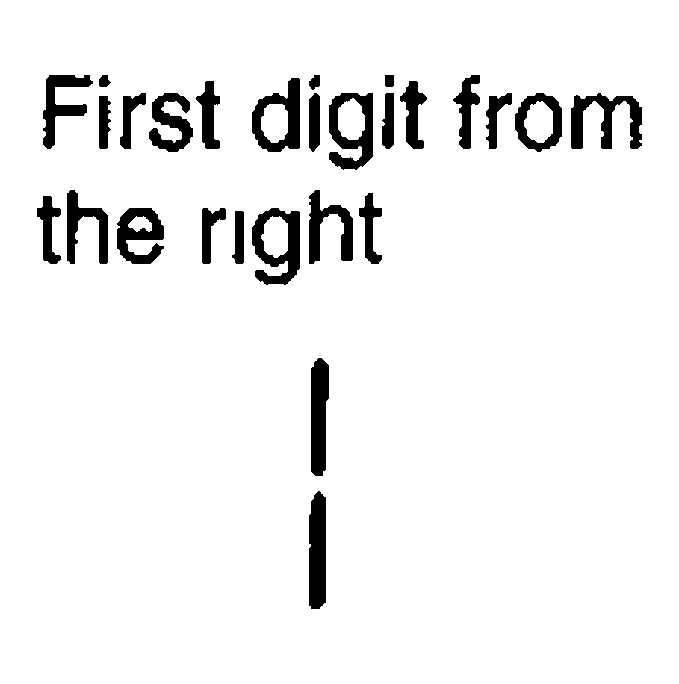

| The DTC of CAN system is detected. Perform the DTC inspection. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM (L3 WITH TC)]. ) (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM (L3, AJ)]. )
Go to next step. |
|||

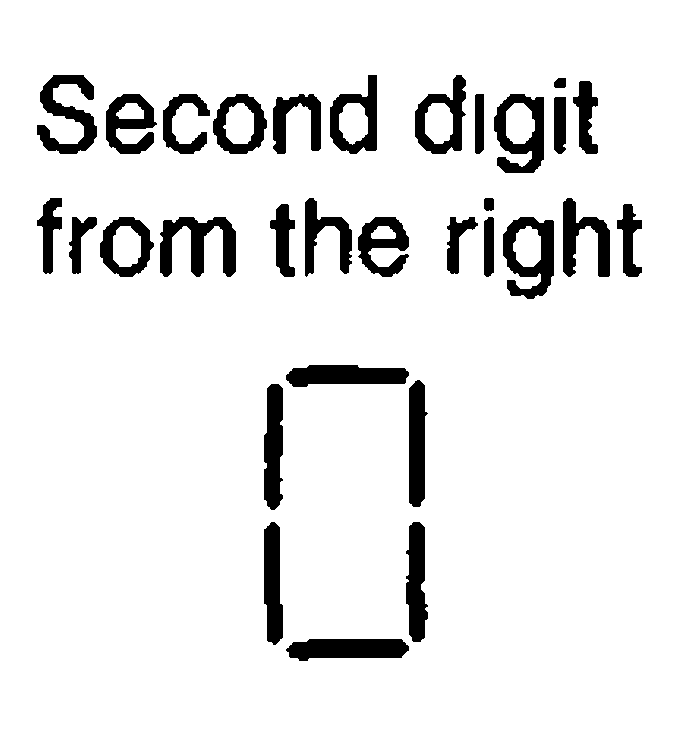

| 2 | Confirm the second digit from the right. | The wiring harnesses between the fuel gauge sender unit and instrument cluster are okay. Go to next step. |
|
Inspect following parts.
Go to next step. |
|||

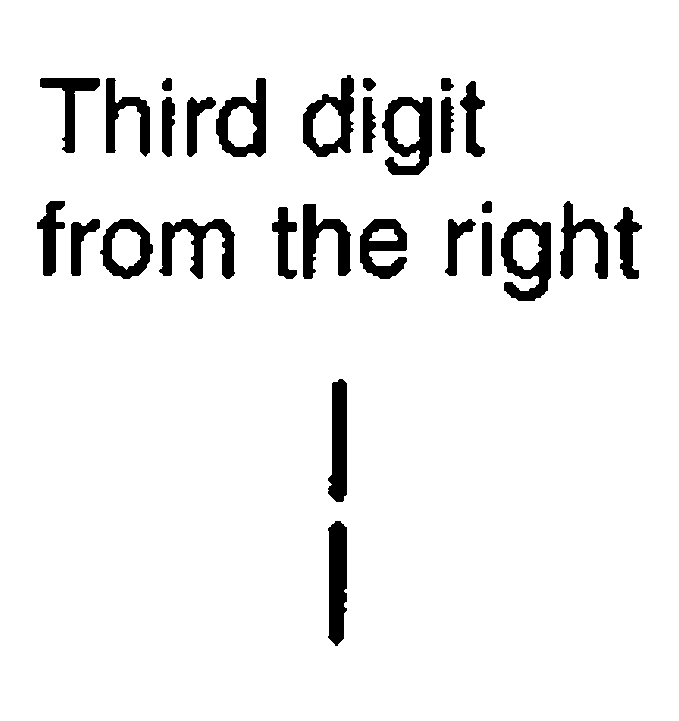

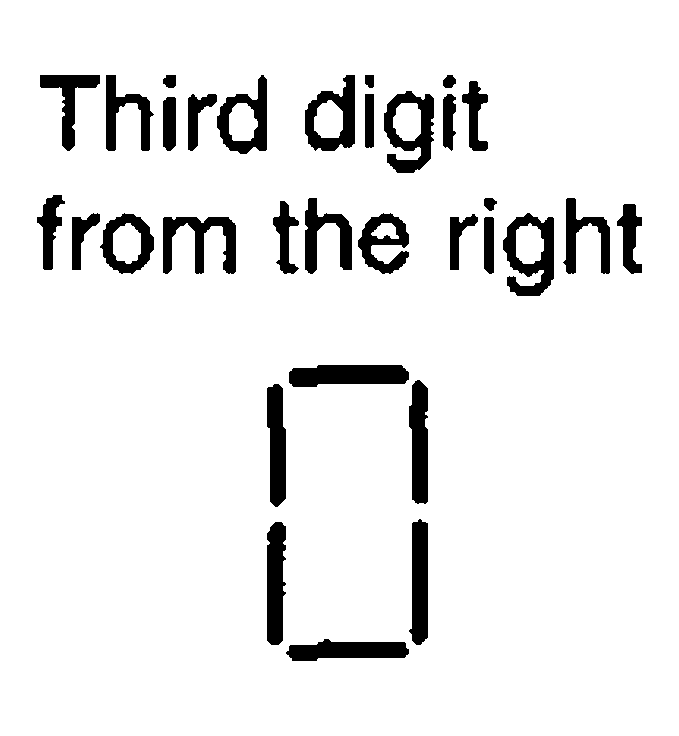

| 3 | Confirm the third digit from the right. | The fuel pulse signal from the PCM is okay. | |
| Inspect the PCM. (See DTC TABLE [L3]. ) (See DTC TABLE [L3 WITH TC]. ) (See DTC TABLE [AJ]. ) (See PCM INSPECTION [L3]. ) (See PCM INSPECTION [L3 WITH TC]. ) (See PCM INSPECTION [AJ]. )
|
