Engine Control System (L3)
>>
Control System Component Location Index
Control System Component Location Index

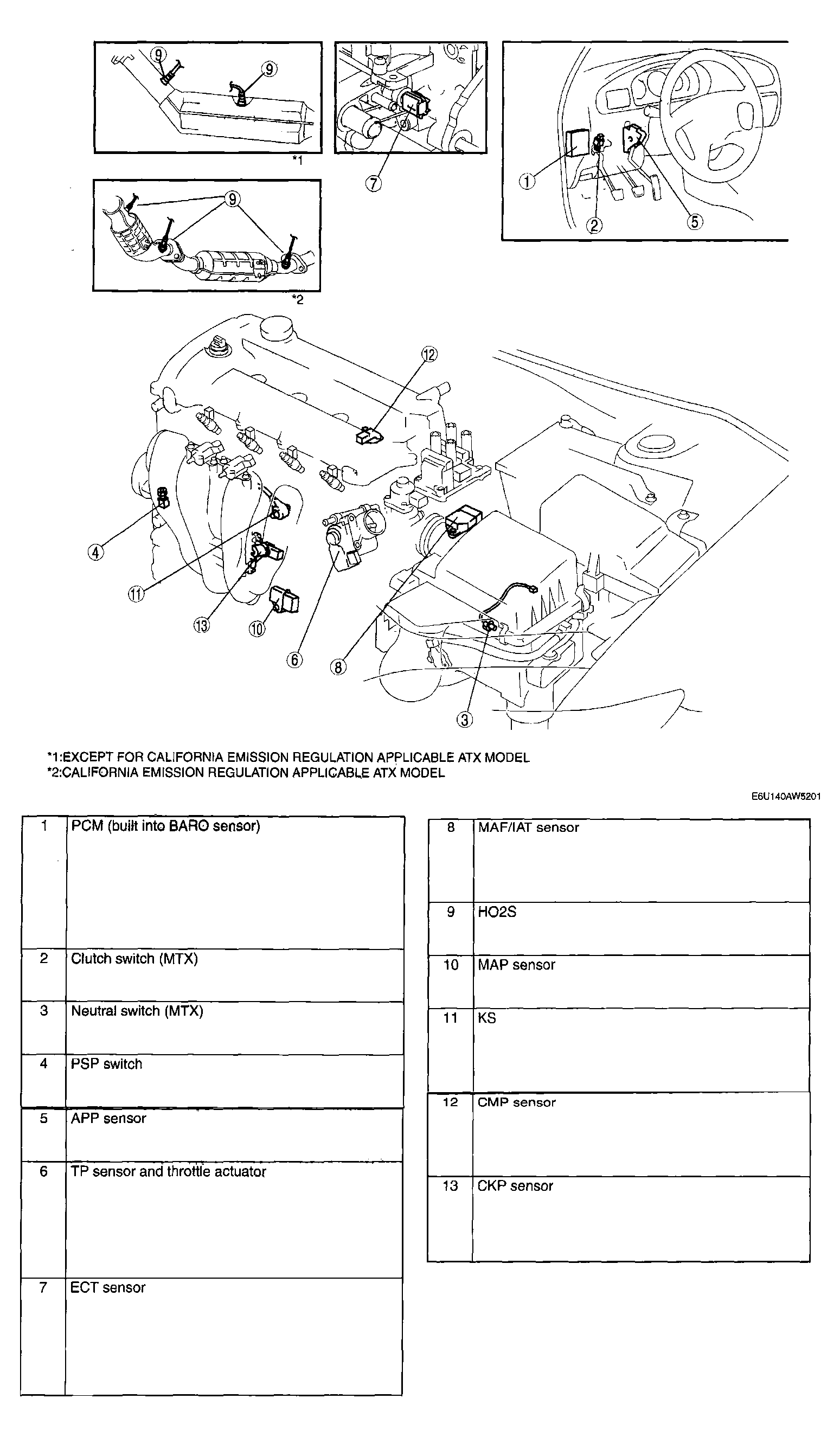

Fig 1: Identifying Control System Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
