Engine Control System (L3)
>>
Neutral Switch Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the harness.
Neutral switch terminal B and PCM terminal 1X
Neutral switch terminal A and body GND

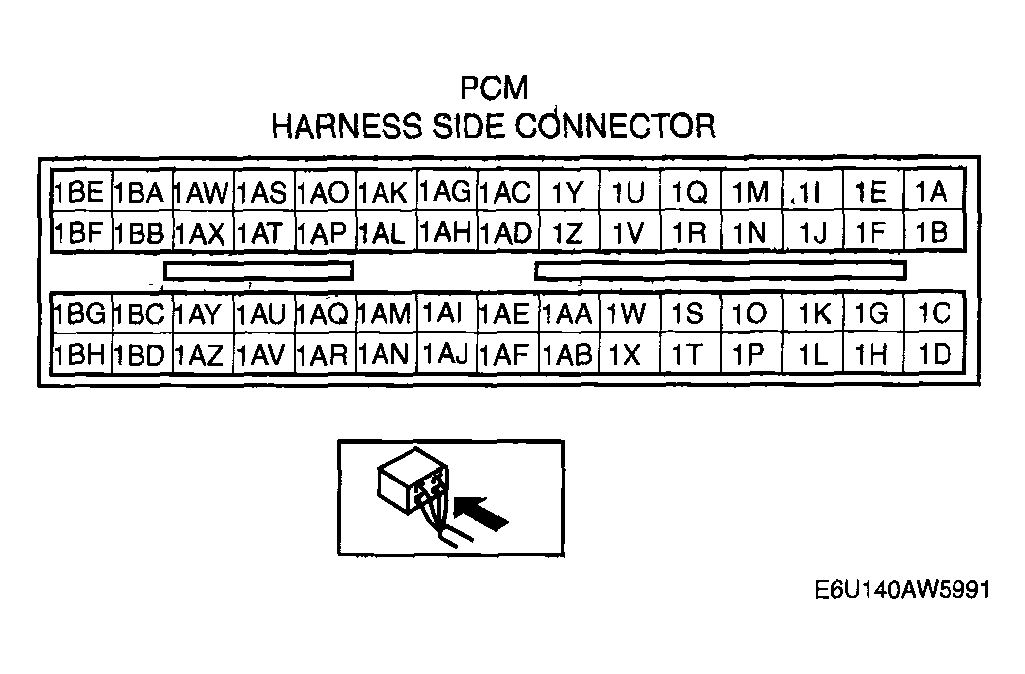

Fig 1: PCM Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
