Pcm Removal/Installation

NOTE:
  • For PCM replacement, setup the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION ).
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

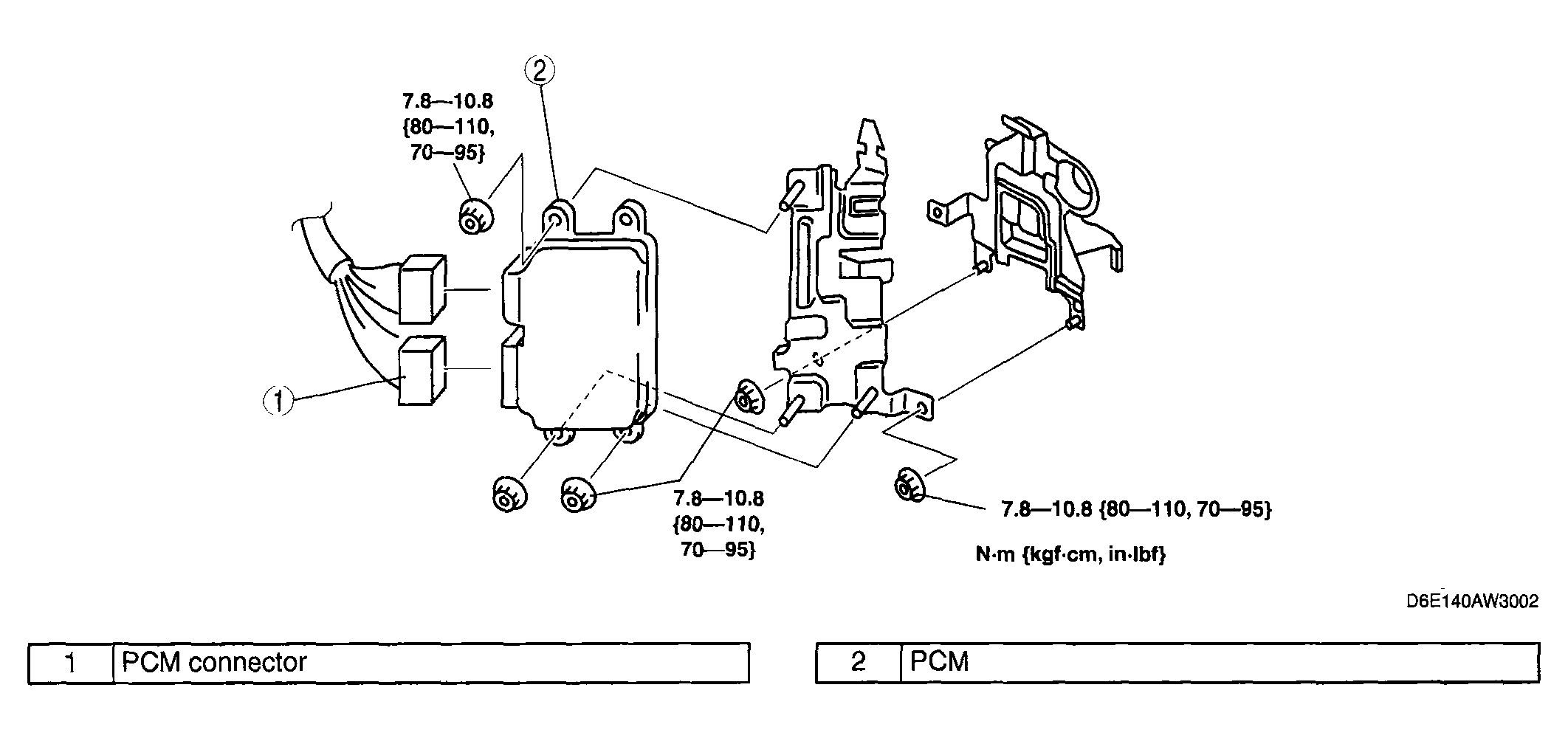

    Fig 1: PCM Mounting & Torque Specification
    G04325118Courtesy of MAZDA MOTORS CORP.
