Pcm Removal/Installation

NOTE:
  • To replace the PCM, connect the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION ).
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

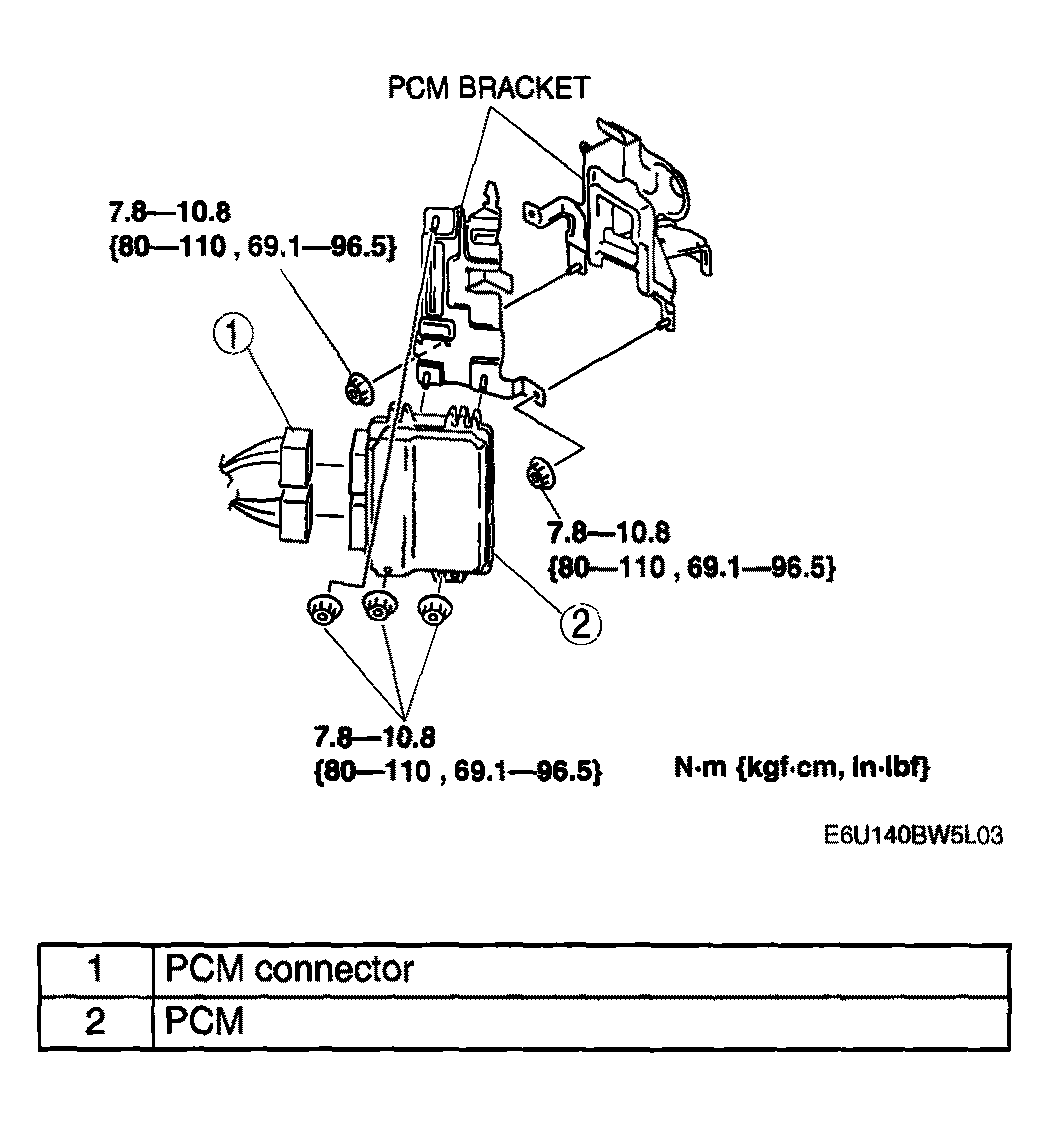

    Fig 1: PCM Bracket & Torque Specification
    G04325285Courtesy of MAZDA MOTORS CORP.
