Console Disassembly/Assembly
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

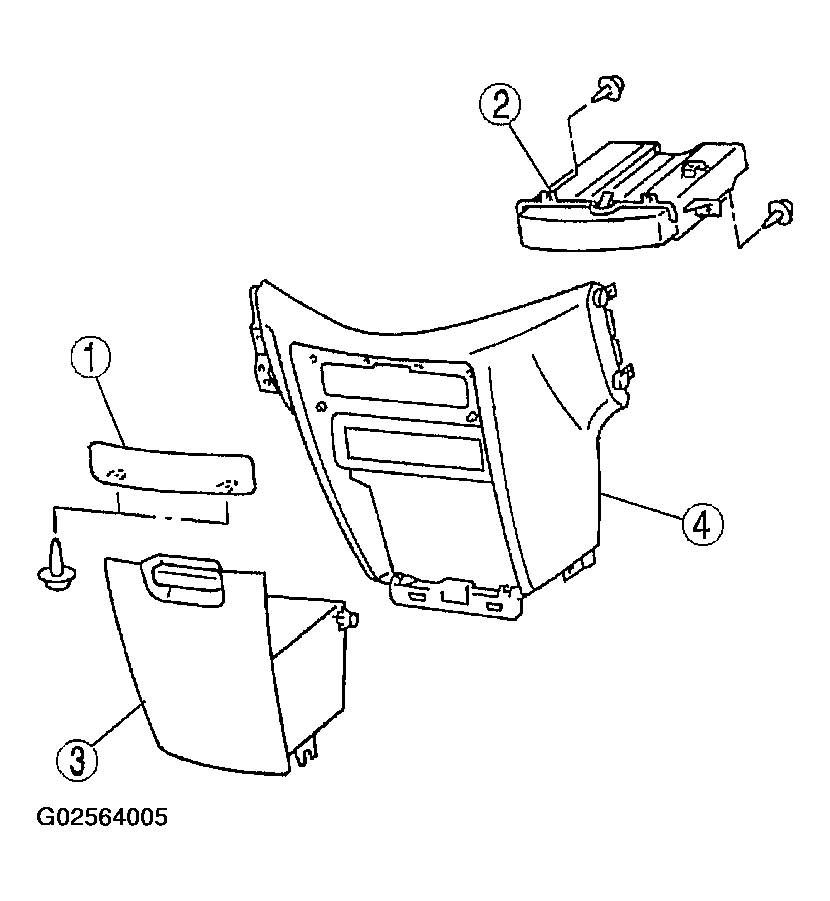

- Disassemble in the order indicated in the figure.
DISASSEMBLING/ASSEMBLING CONSOLE
| Component/Step No. |
Component Description |
| 1 |
Knob |
| 2 |
Cup holder |
| 3 |
Box |
| 4 |
Console |
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
