Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the upper side of lower panel downward, then disengage clips A and pins B from the dashboard.

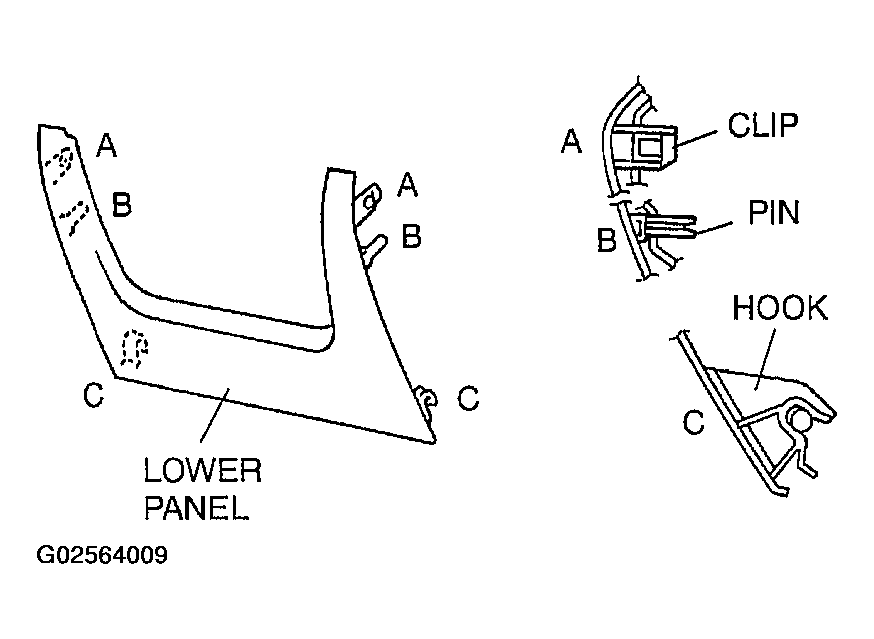

    Fig 1: Locating Lower Panel Clips & Hooks
    G02564009Courtesy of MAZDA MOTORS CORP.
  2. Pull the lower panel toward you, then disengage hooks C from the dashboard, and remove the lower panel.
  3. Install in the reverse order of removal.
