Rear Window Glass: Removal

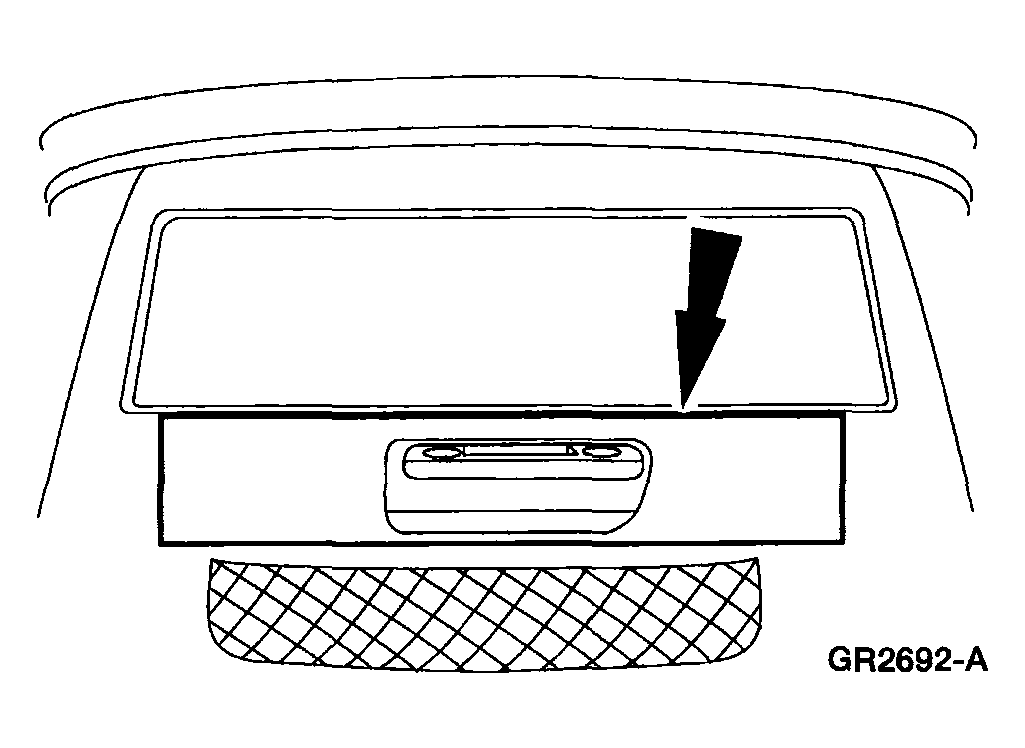

Fig 1: Removing Rear Window Glass Garnish Moulding
G04310247Courtesy of MAZDA MOTORS CORP.
  1. Remove the rear window glass garnish moulding.
  2. Remove the headliner. See HEADLINER .
  3. Remove the rear window glass nuts.
    NOTE:
    • Use only a plastic windshield setting tool to slide under the rubber seal to separate the foam butyl from the glass. Once the glass starts to separate from the body, constant hand pressure will break the seal and the glass can be removed. Failure to use a plastic windshield setting tool can damage the body and the rubber seal.
  4. Remove the rear window glass.
