Removal and Installation

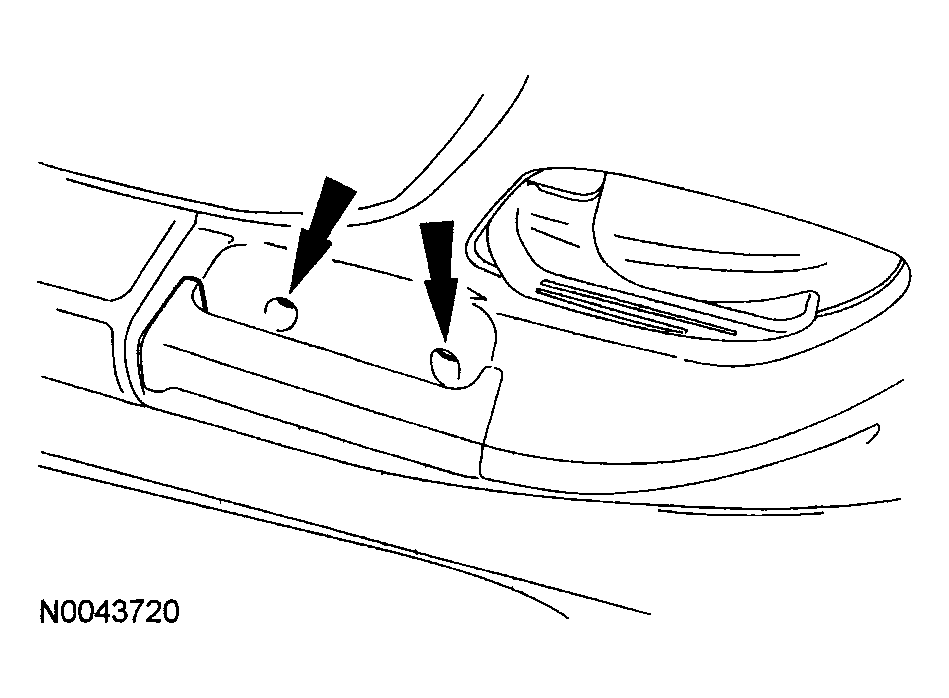

Fig 1: Removing Door Trim Panel Finish Panel Screws
G04310249Courtesy of MAZDA MOTORS CORP.
  1. Remove the 2 door trim panel finish panel screws.

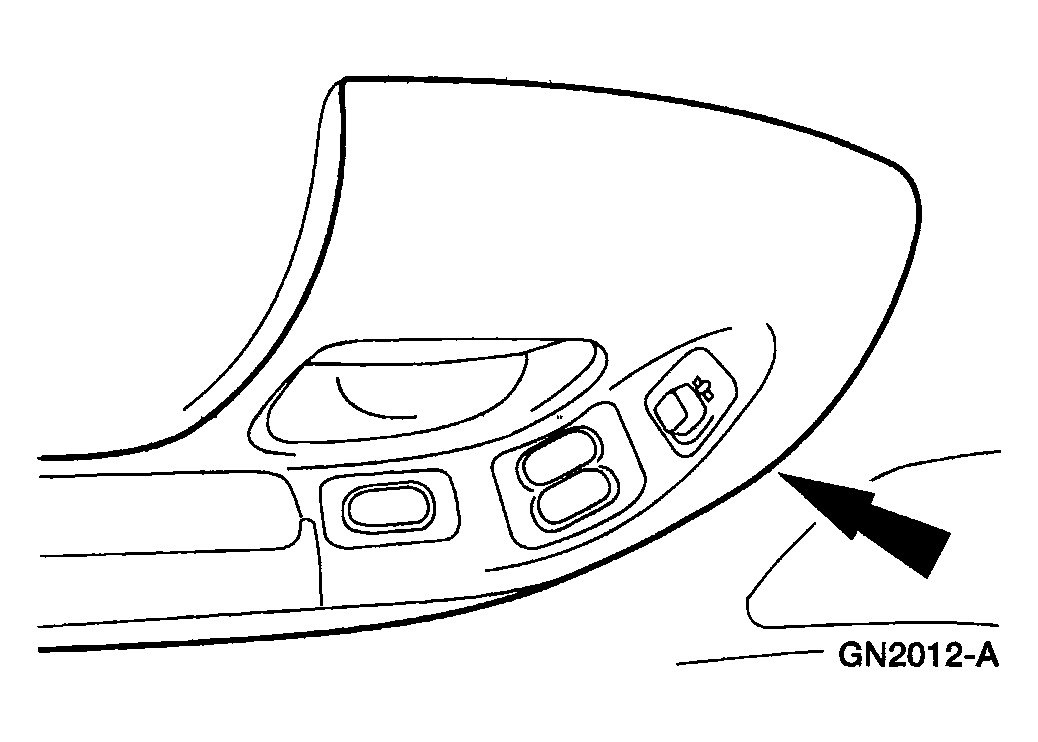

    Fig 2: Positioning Door Trim Panel Finish Panel
    G04310250Courtesy of MAZDA MOTORS CORP.
  2. Reposition the door trim panel finish panel.

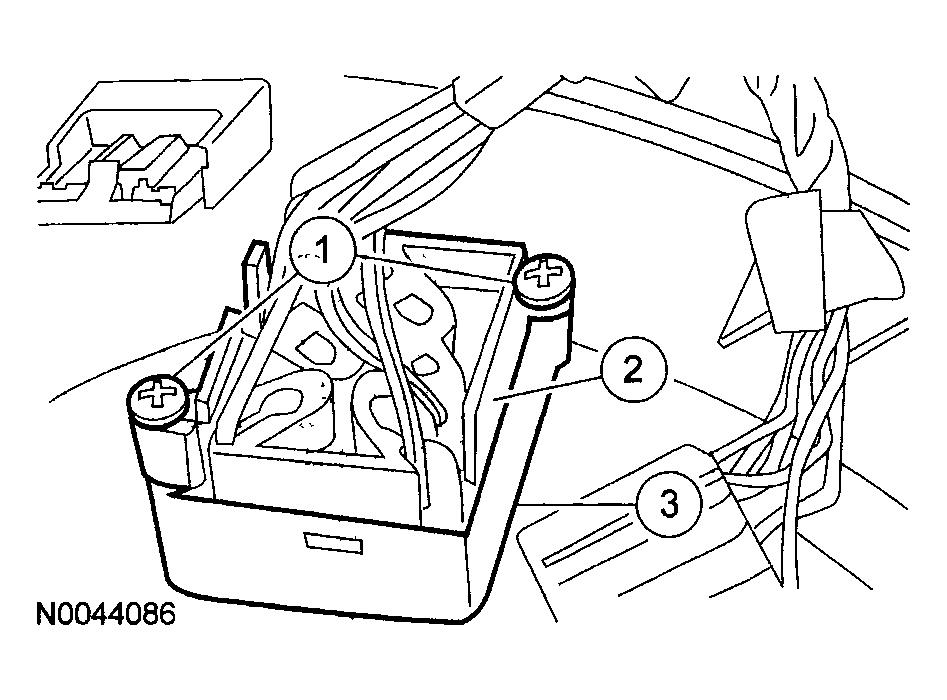

    Fig 3: Removing Window Control Switch From Door Trim Panel Finish Panel
    G04310251Courtesy of MAZDA MOTORS CORP.
  3. Remove the Window control switch from the door trim panel finish panel.
    1. Remove the 2 screws.
      • To install, tighten to 3 N-m (0.3 kgf-m, 27 in-lbf).
    2. Remove the window control switch plate from the switch.
    3. Remove the window control switch.
  4. To install, reverse the removal procedure.
