Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator Removal / Installation - 3.0L >> Notes

Generator Removal / Installation - 3.0L: Notes

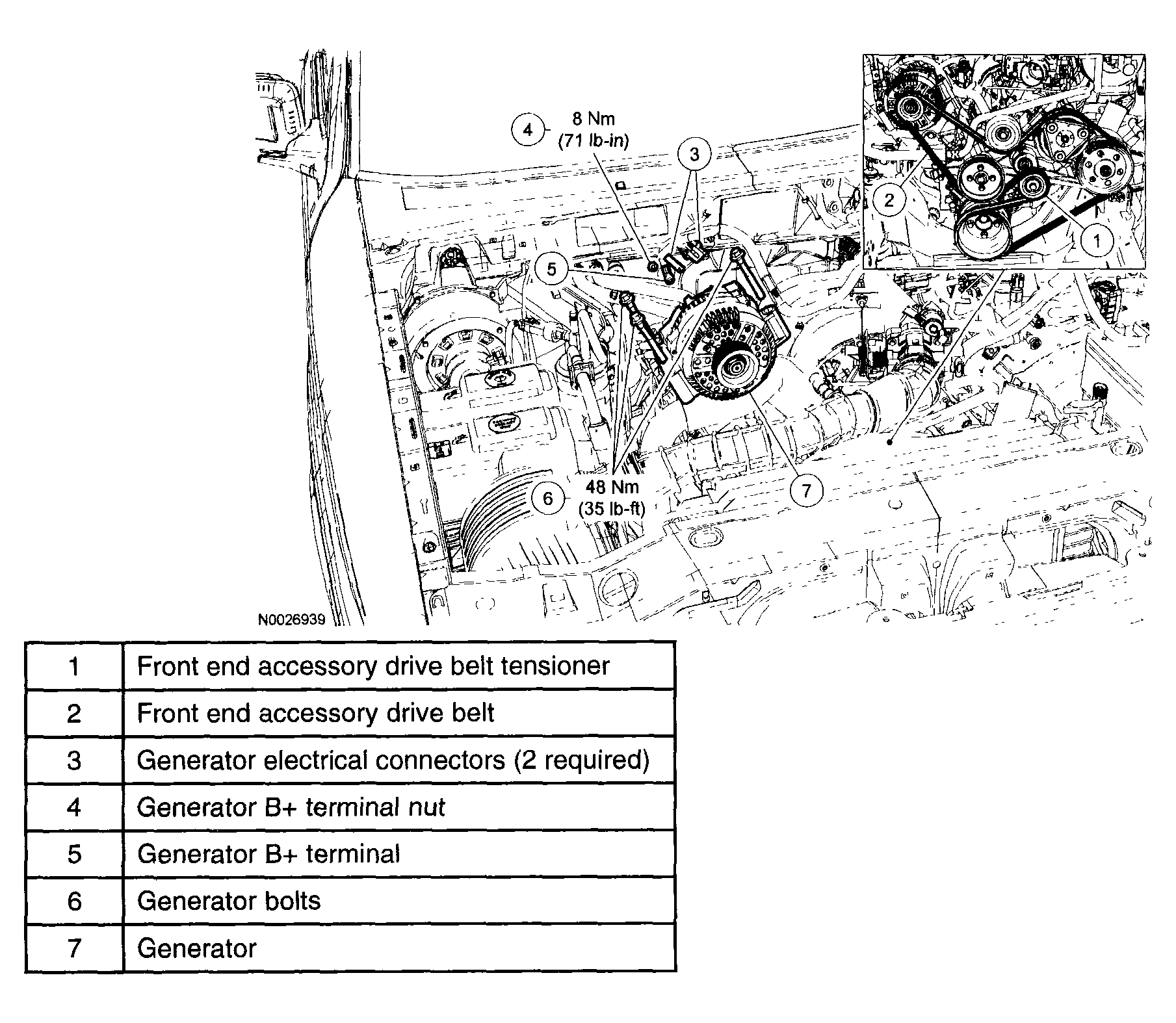

Fig 1: Generator - 3.0L With Torque Specifications

G04308284

Courtesy of MAZDA MOTORS CORP.
