Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

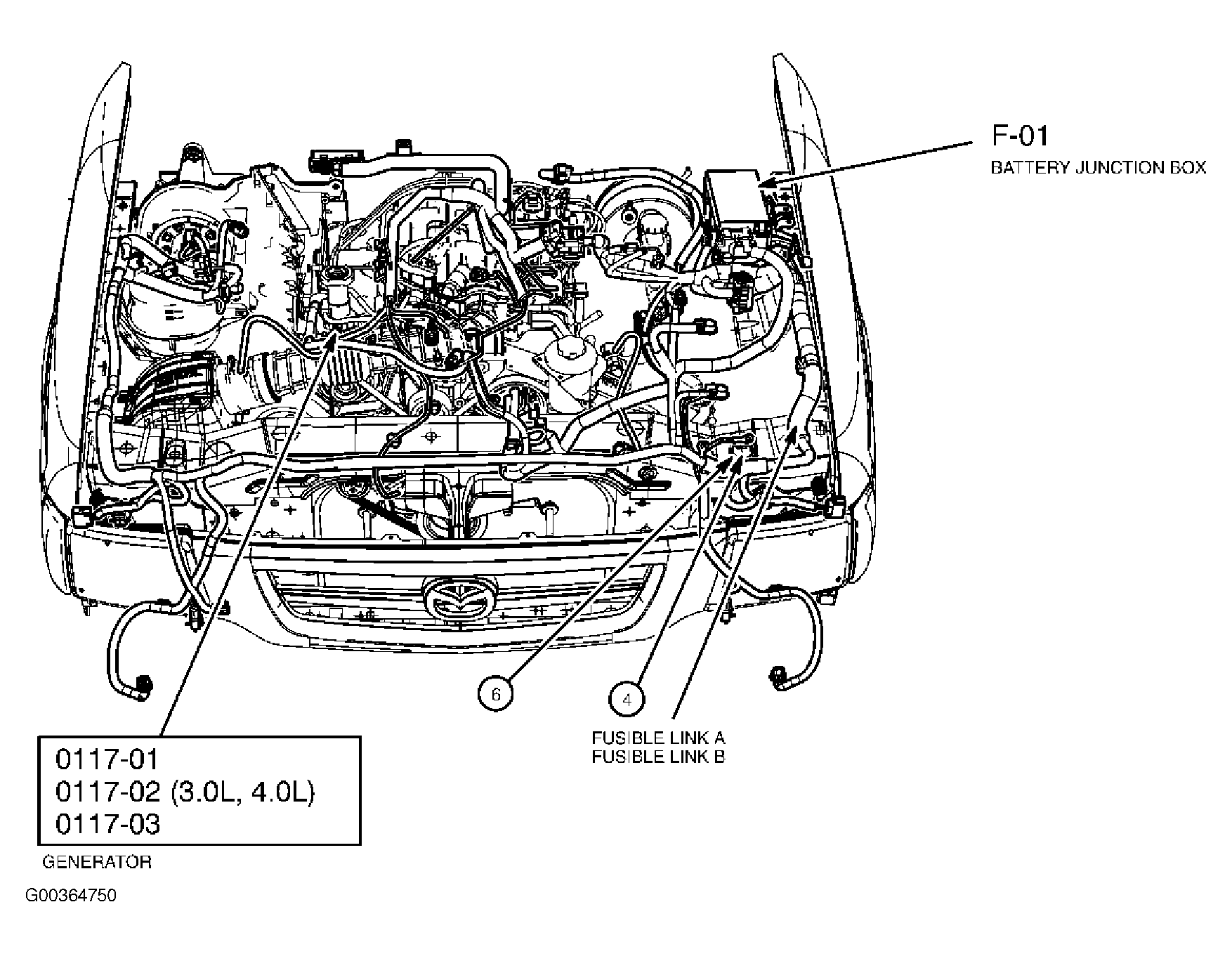

| Battery Junction Box |
Left rear of engine compartment. See Figure. |
| Fusible Link A |
Left front of engine compartment. See Figure. |
| Fusible Link B |
Left front of engine compartment. See Figure. |

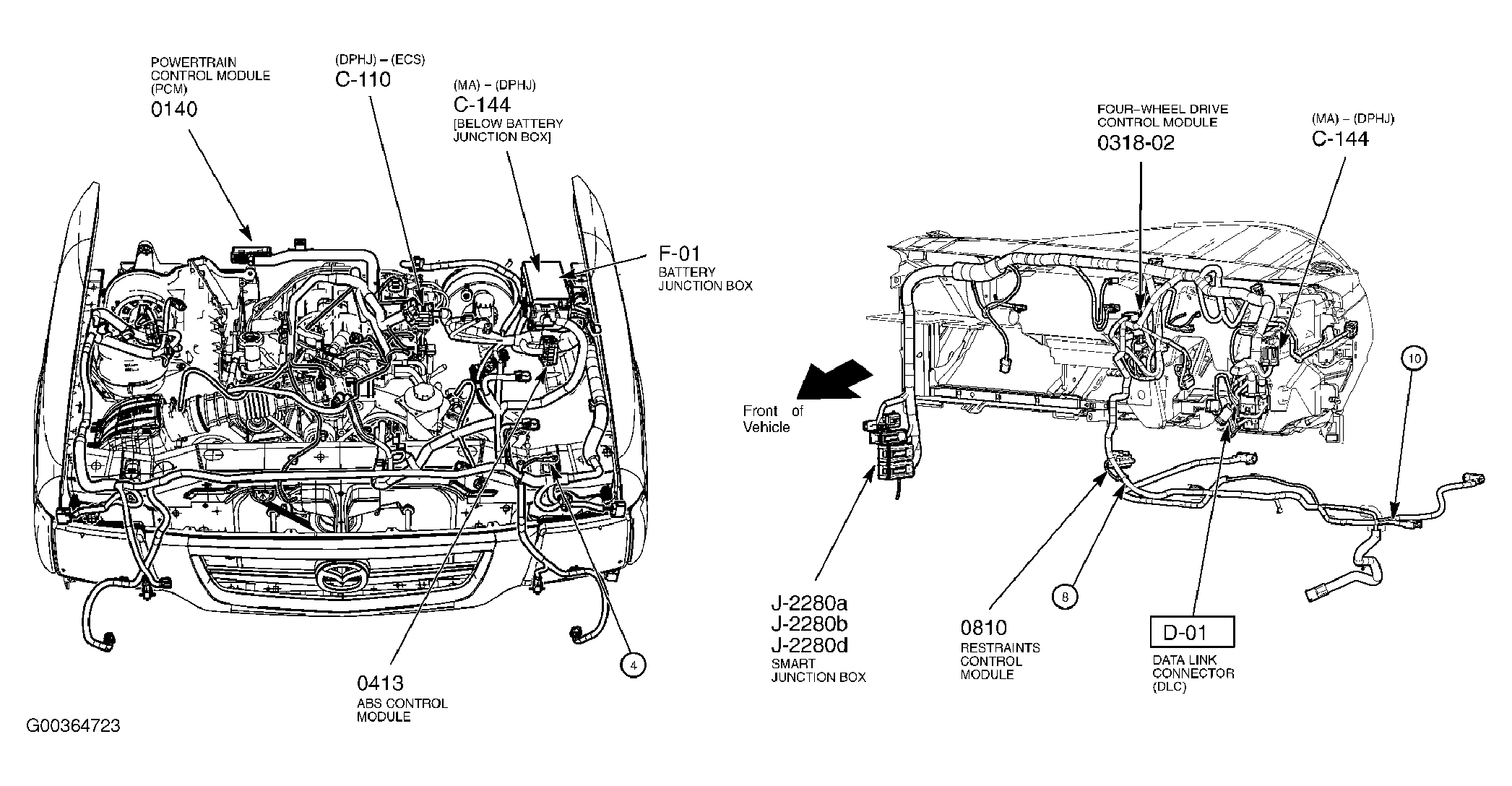

| Smart Junction Box |
At right kick panel. See Figure. |
