R-Clip Fittings: Disconnect

  1. Relieve the fuel pressure. See FUEL PRESSURE RELIEF , .
  2. Remove the shipping tab by bending downward.

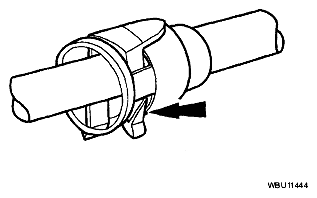

    Fig 1: Locating Shipping Tab
    G04929987Courtesy of MAZDA MOTORS CORP.
  3. Spread the R-clip legs and push the clip into the fitting.
    Fig 2: Spreading R-Clip Legs And Push Clip Into Fitting
    G04929988Courtesy of MAZDA MOTORS CORP.
  4. Separate the fitting from the tube.

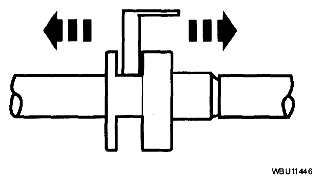

Fig 3: Separating Fitting From Tube
G04929989Courtesy of MAZDA MOTORS CORP.
