Transfer Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Battery, battery try (See BATTERY REMOVAL/INSTALLATION[L3 WITH TC] ).
    2. Engine cover
    3. Intercooler (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC] ).
    4. Front pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 WITH TC] ).
  3. Disconnect the propeller shaft from the transfer side. (See PROPELLER SHAFT REMOVAL/INSTALLATION ).
  4. Remove the transfer oil cooler with the hose still connected. (See TRANSFER OIL COOLER REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

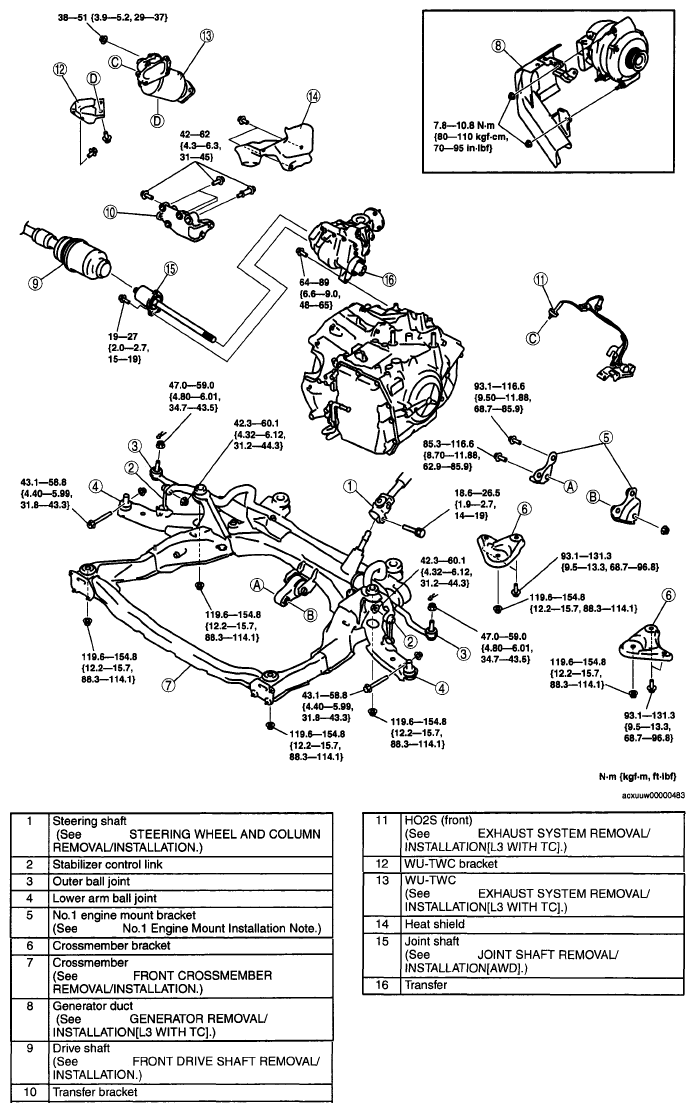

    Fig 1: Exploded View Of Transfer With Torque Specification
    G04860087Courtesy of MAZDA MOTORS CORP.
