Control Units

CONTROL UNITS LOCATION

Component Location

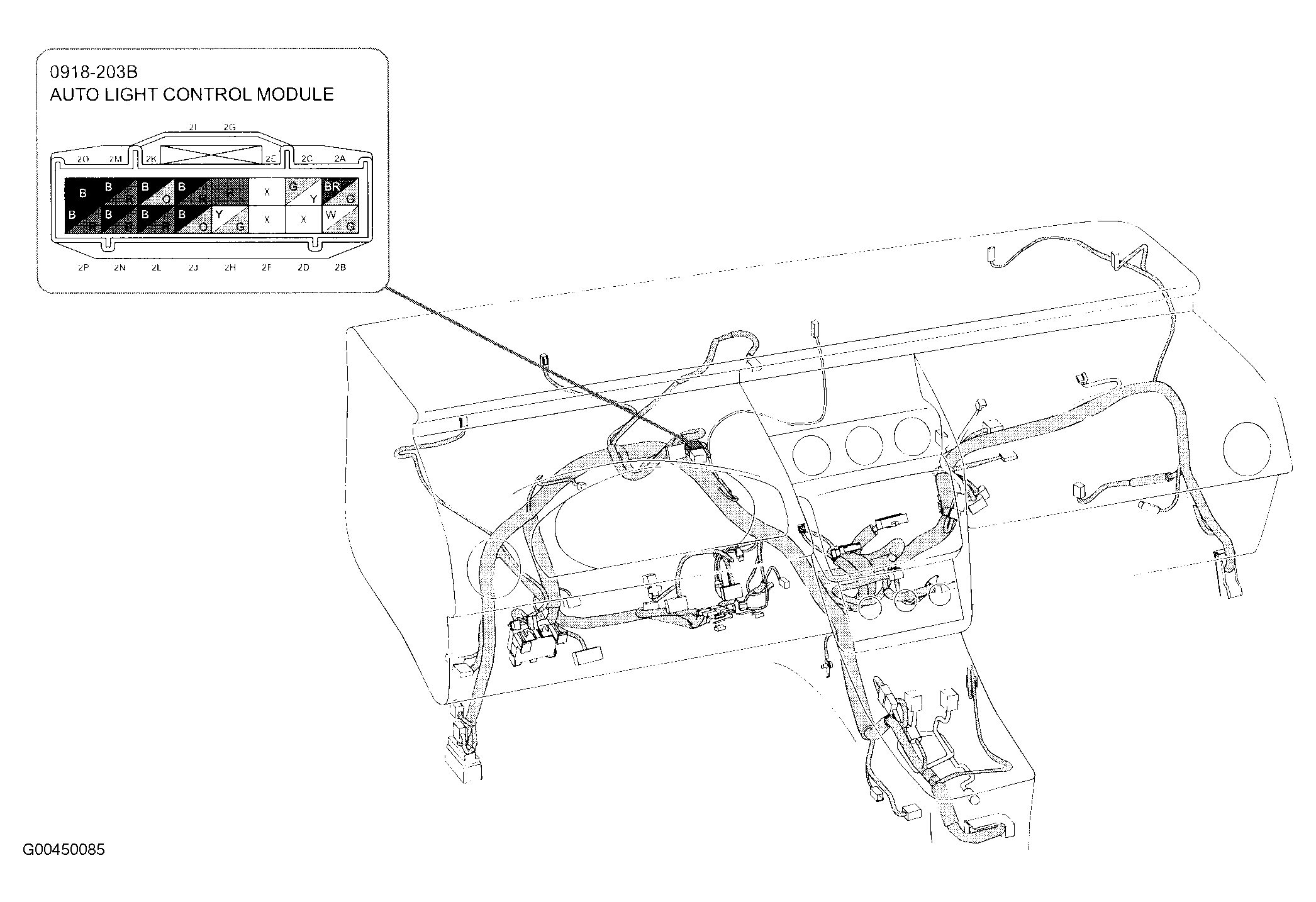

Auto Light Control Module Behind left side of dash. See Figure.

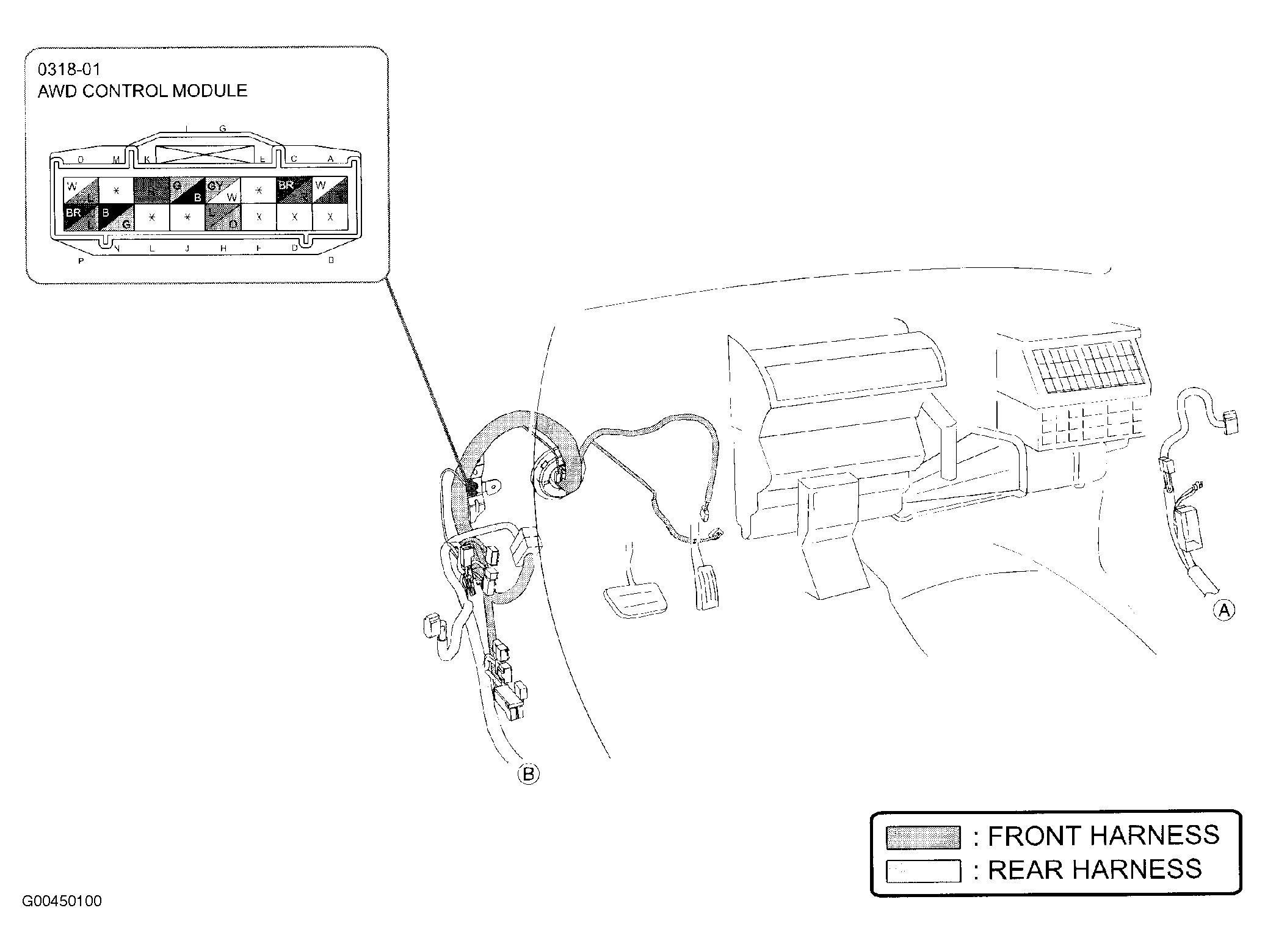

AWD Control Module Behind left end of dash. See Figure.

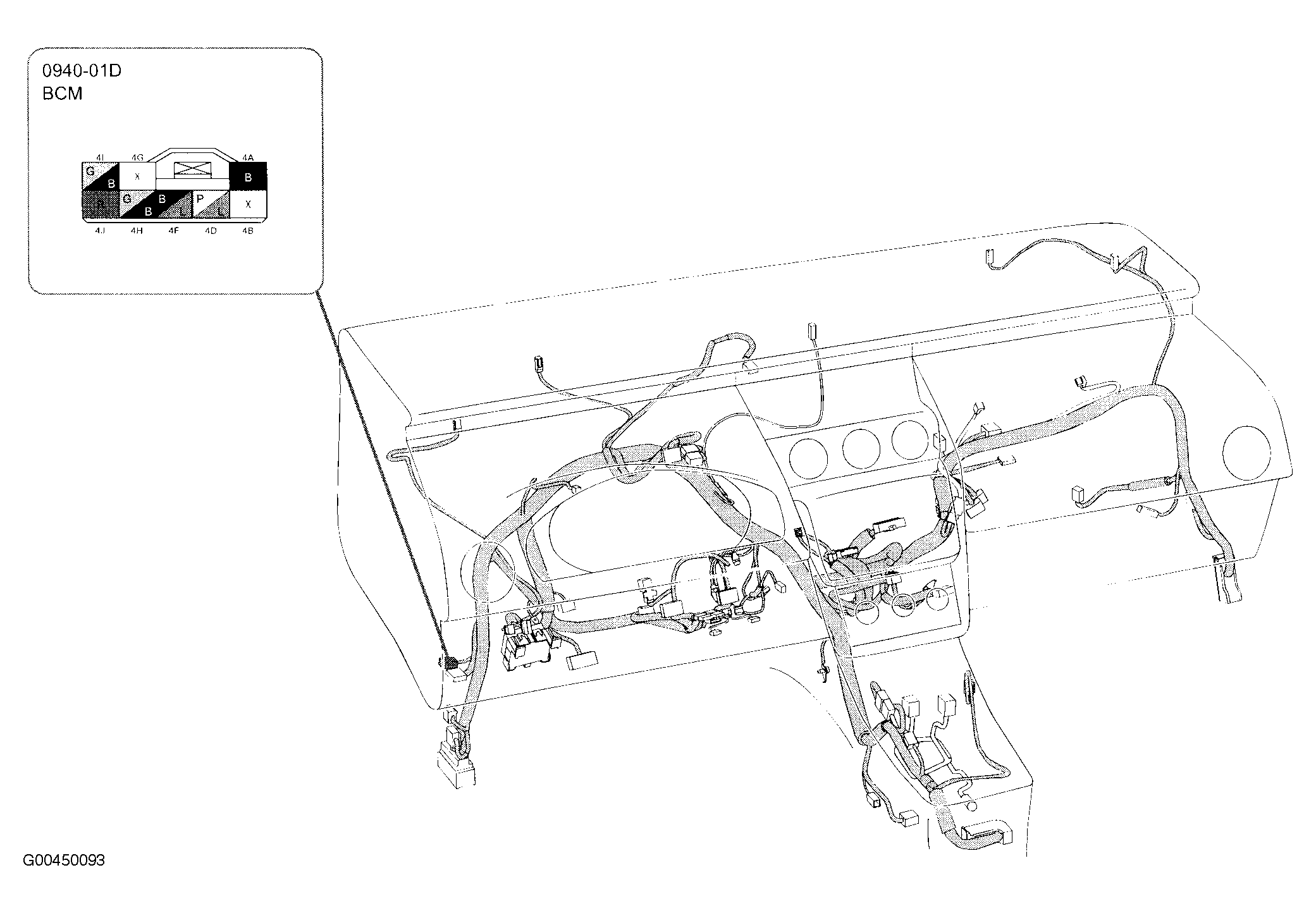

BCM Behind left kick panel. See Figure.

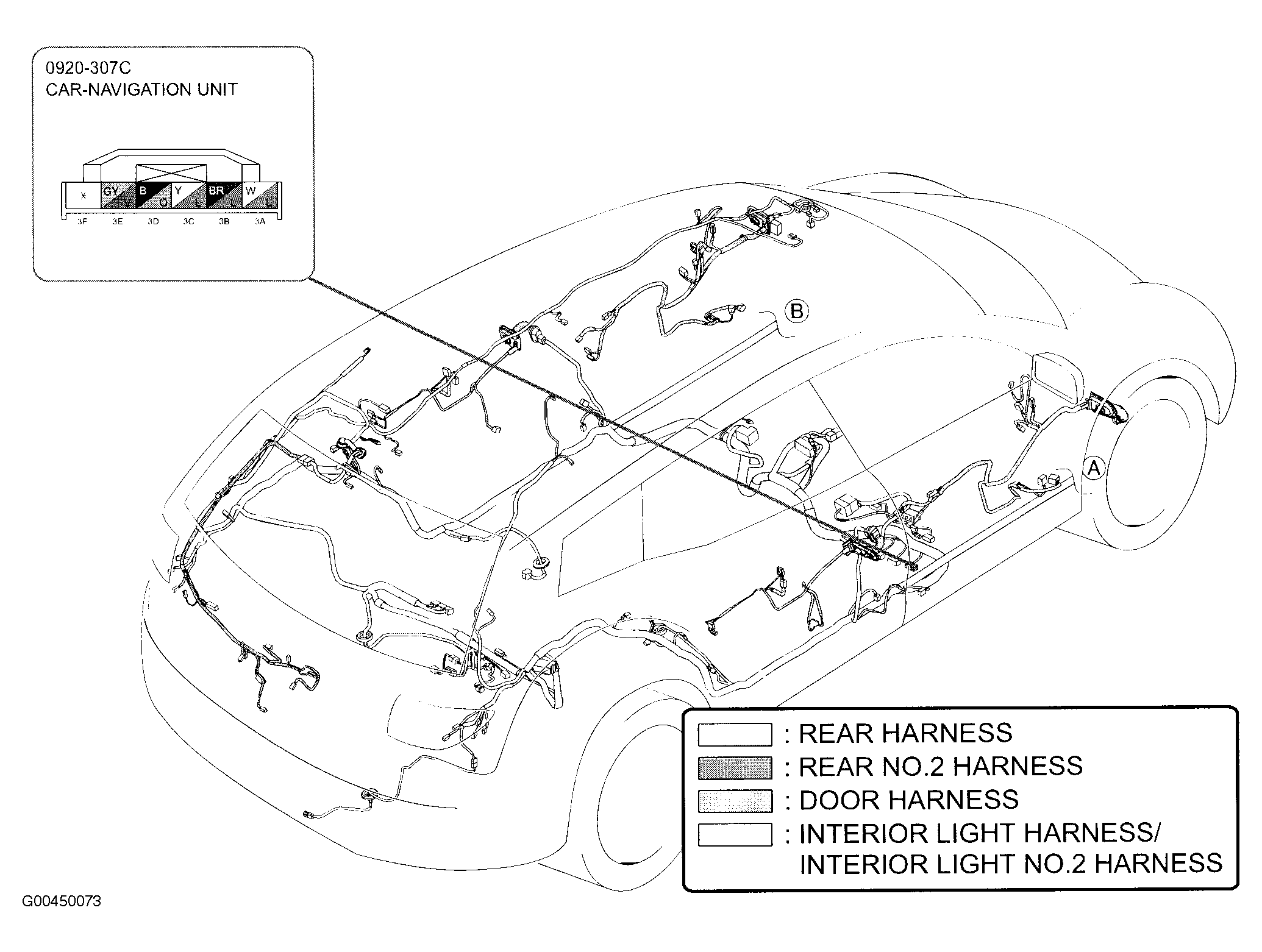

Car-Navigation Unit Under front passenger's seat. See Figure.

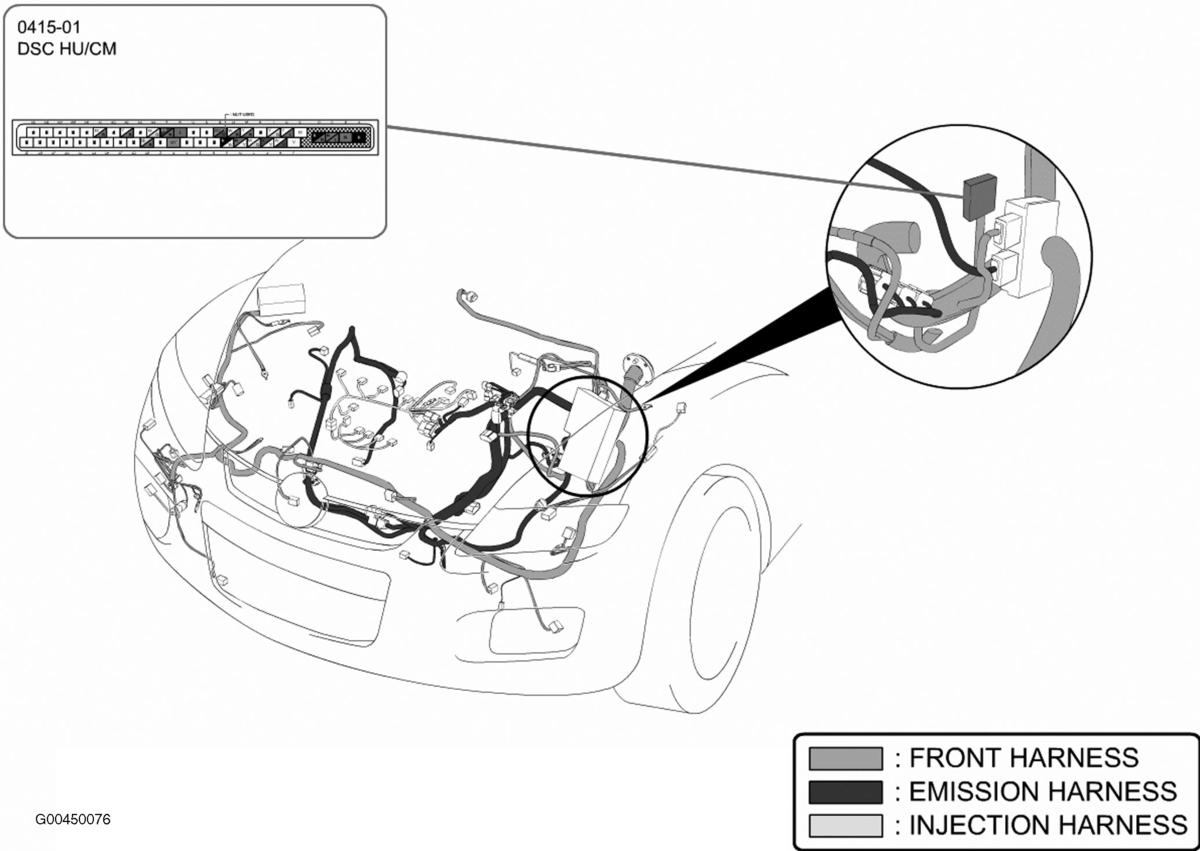

DSC HU/CM Left rear corner of engine compartment. See Figure.
Fan Control Module No. 1 Behind left cooling fan assembly.
Fan Control Module No. 2 Behind right cooling fan assembly.

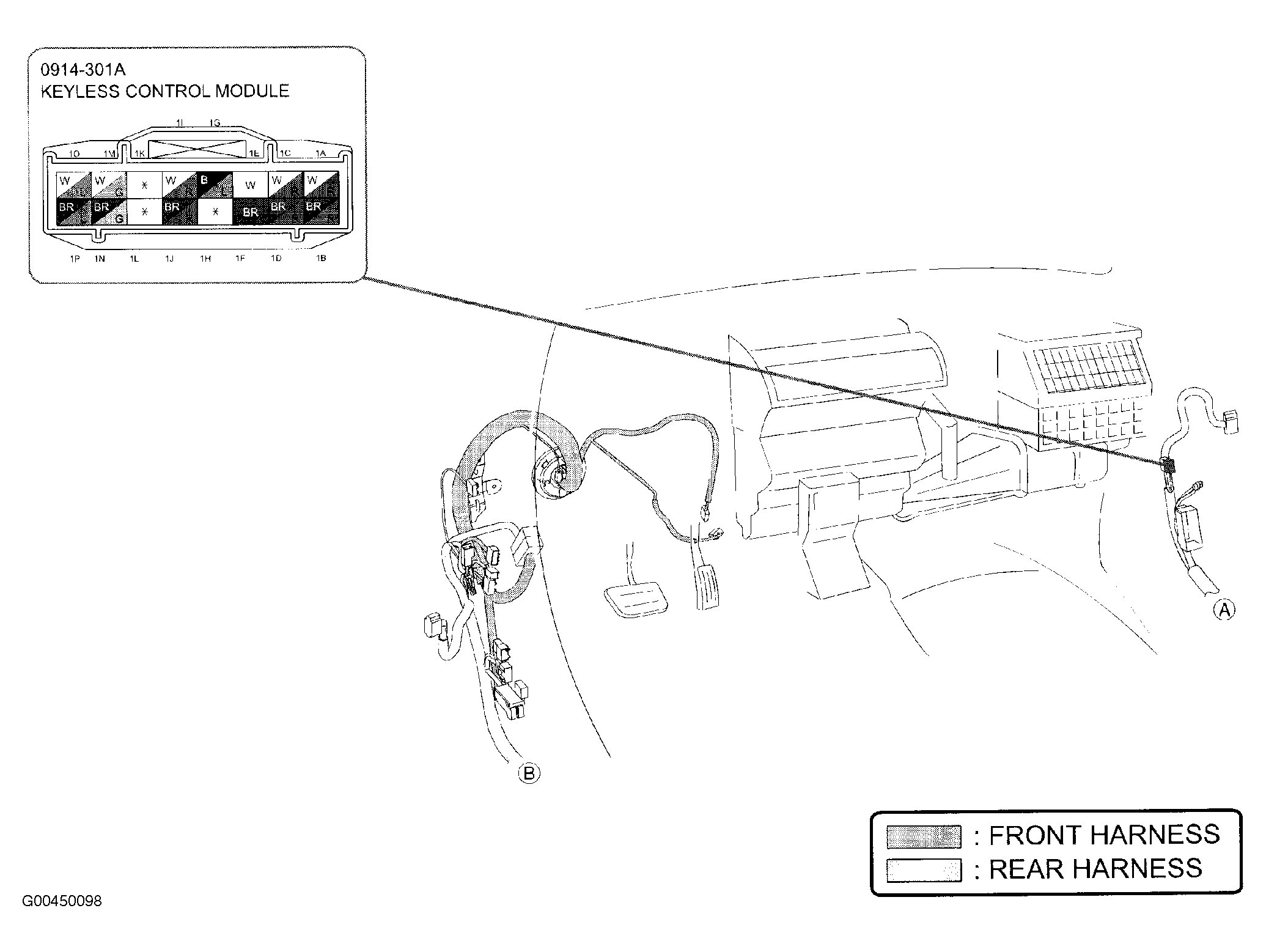

Keyless Control Module Behind right kick panel. See Figure.
Keyless Receiver Behind right side of dash.

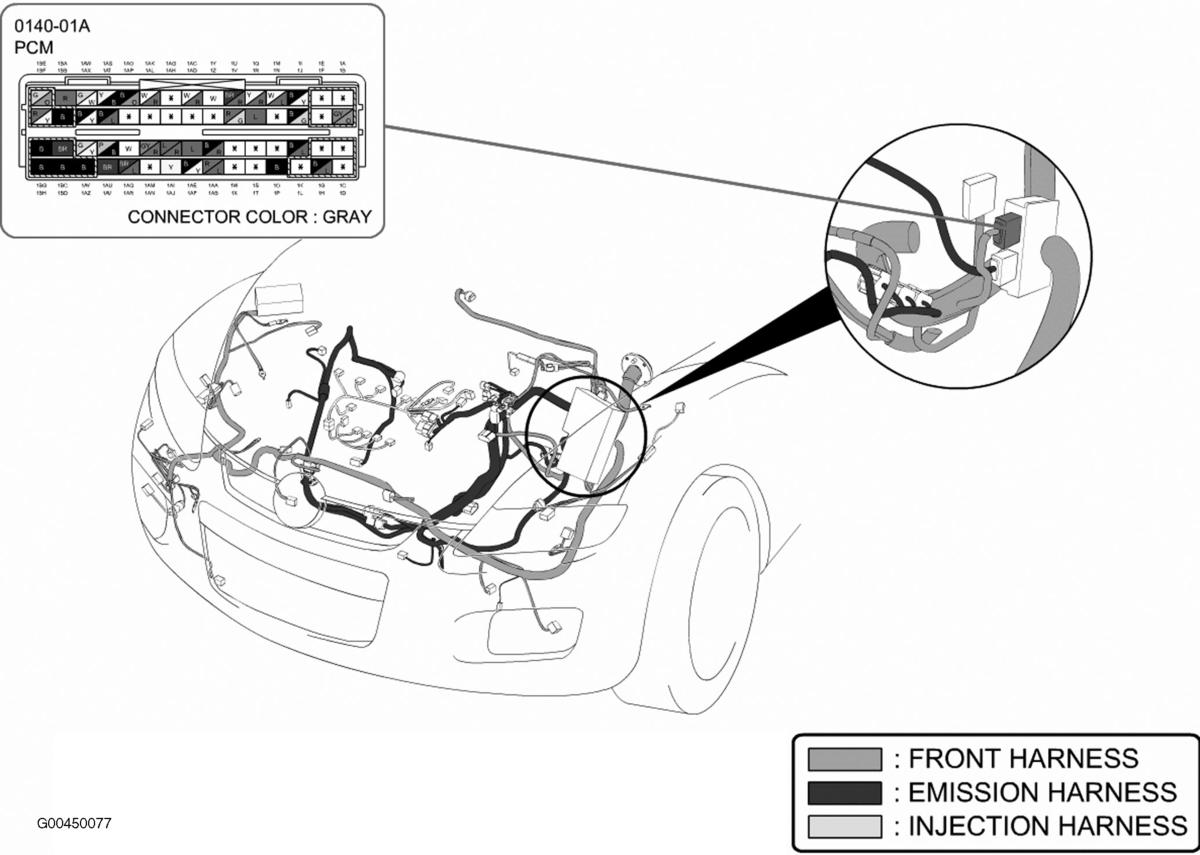

PCM Left rear corner of engine compartment. See Figure.

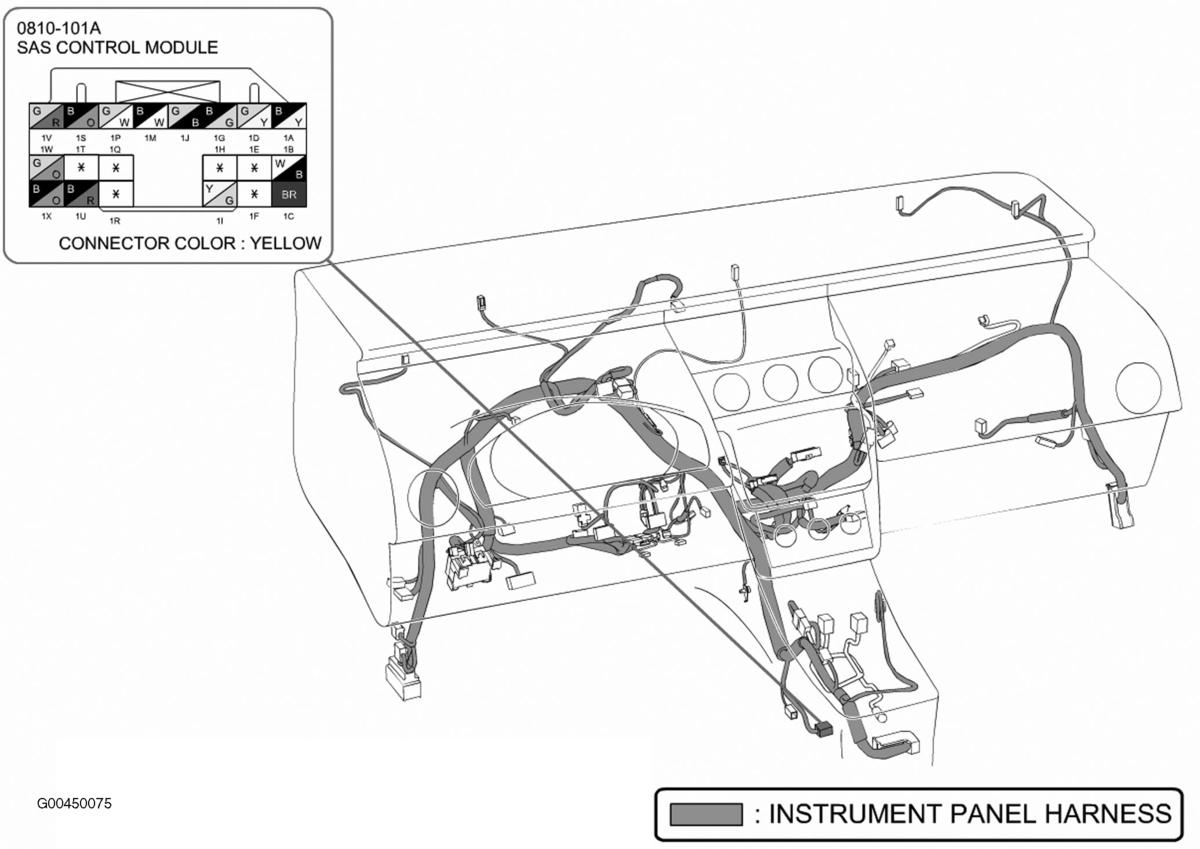

SAS Control Module Under front of center console. See Figure.
Seat Weight Sensor Control Module Under front passenger's seat. See Figure.

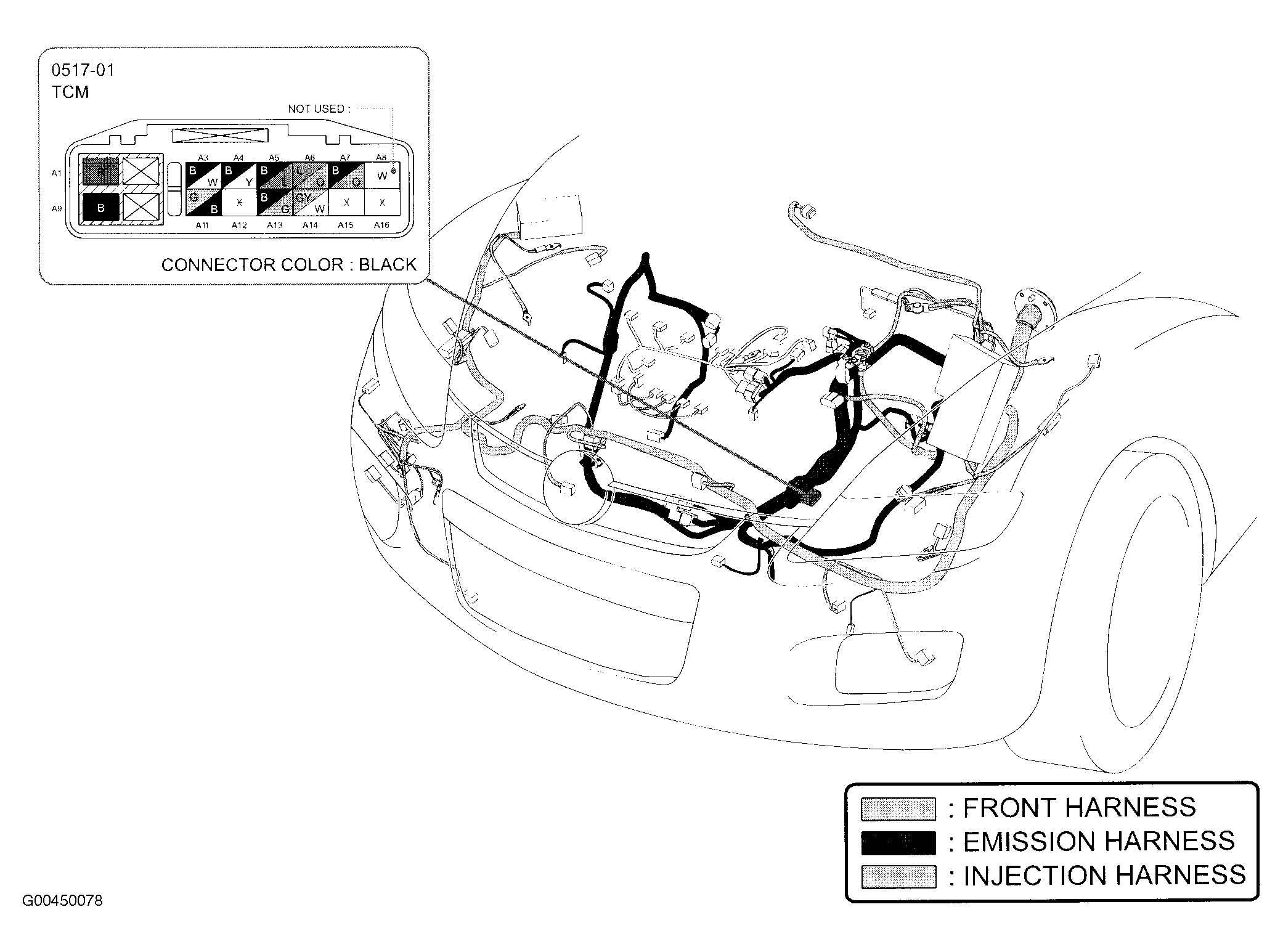

TCM Left side of engine compartment. See Figure.
