Starter Removal/Installation: Notes

WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  • When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
  1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION[L3 WITH TC] ).
  2. Remove the charge air cooler duct, air cleaner and fresh air duct component, and air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove the under cover.
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

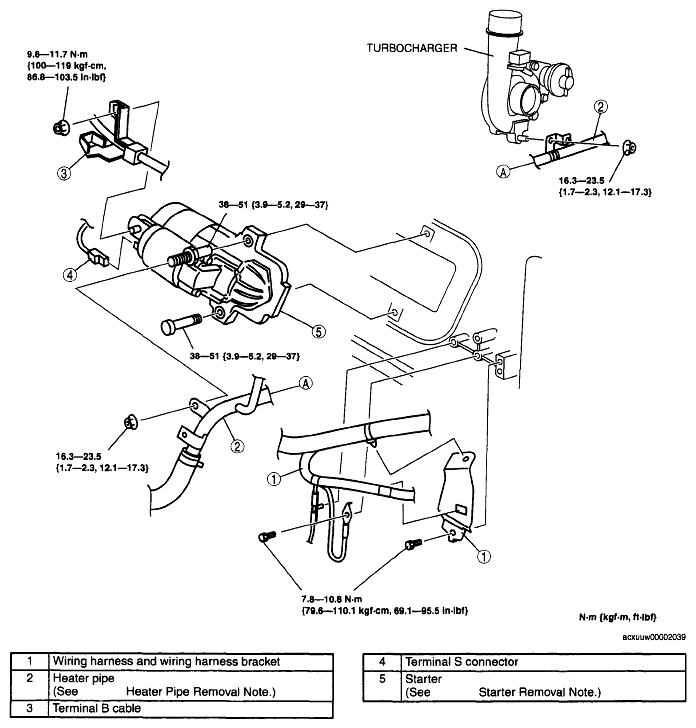

    Fig 1: Starter Replacement Components With Torque Specifications [L3 With TC]
    G04859749Courtesy of MAZDA MOTORS CORP.
