Control System Wiring Diagram

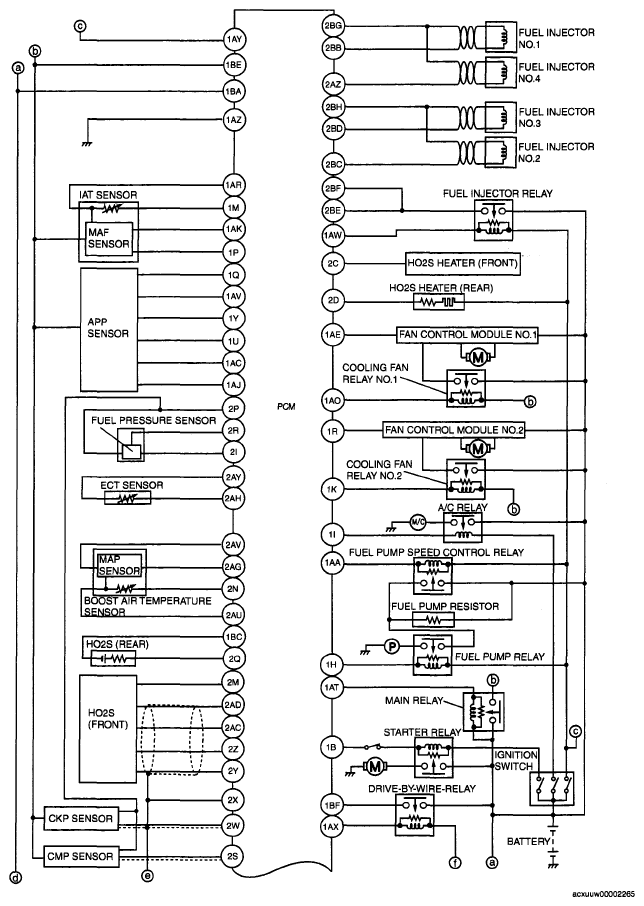

Fig 1: Control System Wiring Diagram - L3 With TC (1 Of 2)
G04859771Courtesy of MAZDA MOTORS CORP.

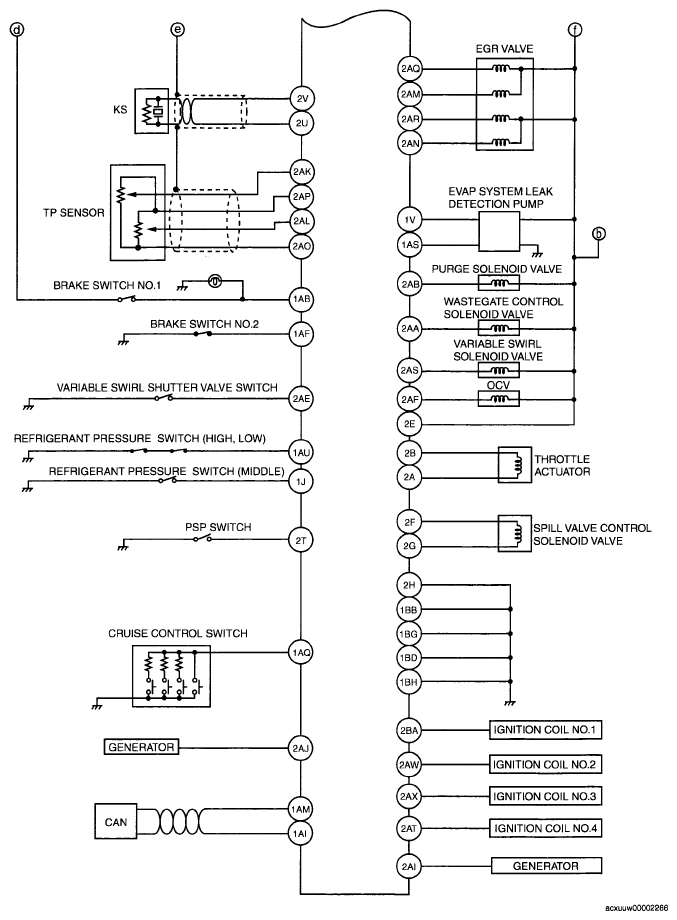

Fig 2: Control System Wiring Diagram - L3 With TC (2 Of 2)
G04859772Courtesy of MAZDA MOTORS CORP.
