Fuel Injector Removal/Installation: Notes
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
NOTE:
- When the fuel pressure sensor replaces, replace a new fuel delivery pipe with a new fuel pressure sensor.(See FUEL INJECTOR REMOVAL/INSTALLATION )
- Complete the "BEFORE REPAIR PROCEDURE". (See BEFORE REPAIR PROCEDURE .)
- Disconnect the negative battery cable.
- Remove the intake manifold. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).

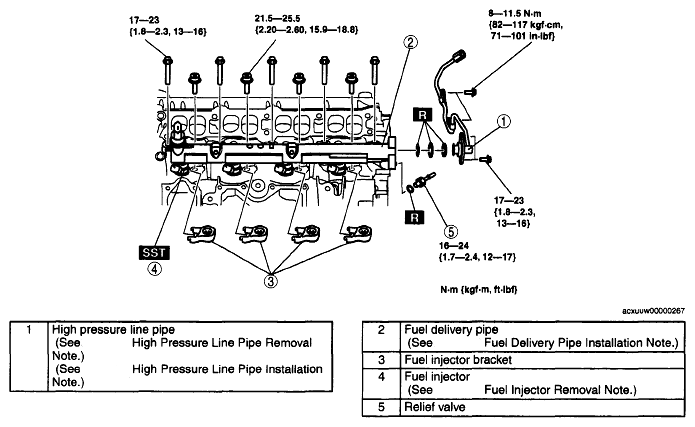

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE .)
