Starter Installation Note

NOTE:

If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

Peel off the insulator from the starter completely using a scraper.

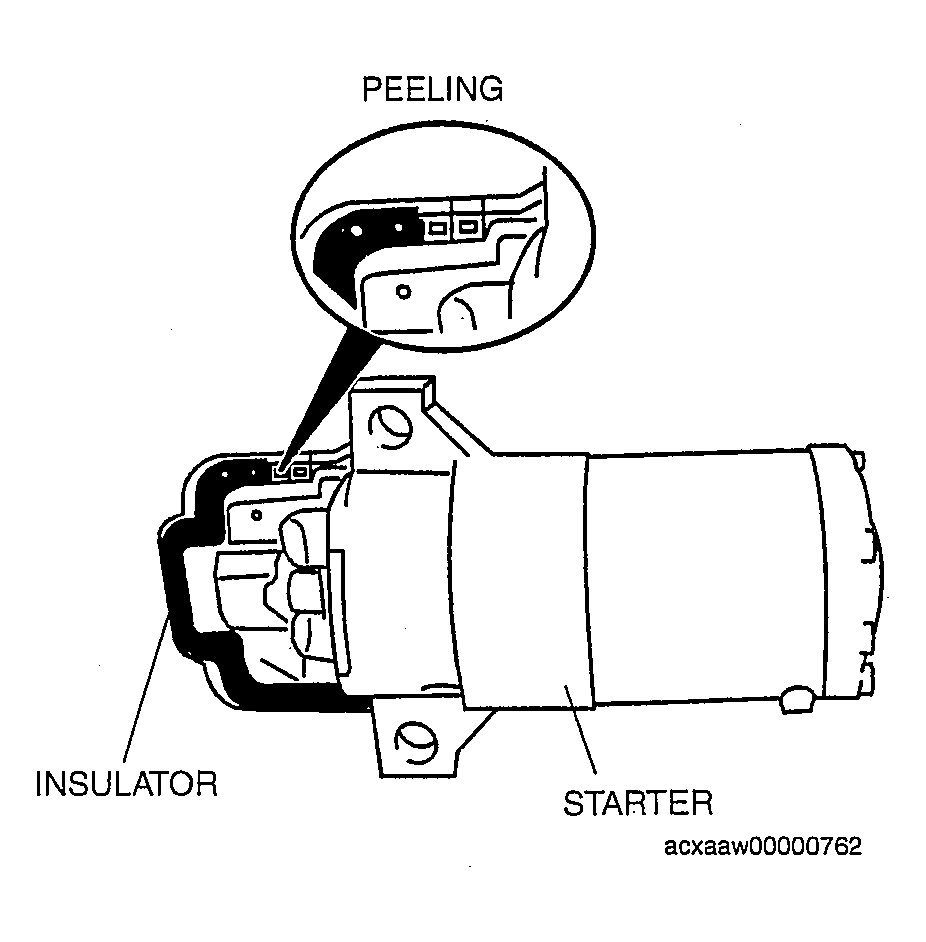

Fig 1: Identifying Starter Insulator
Degrease the insulator attachment area.

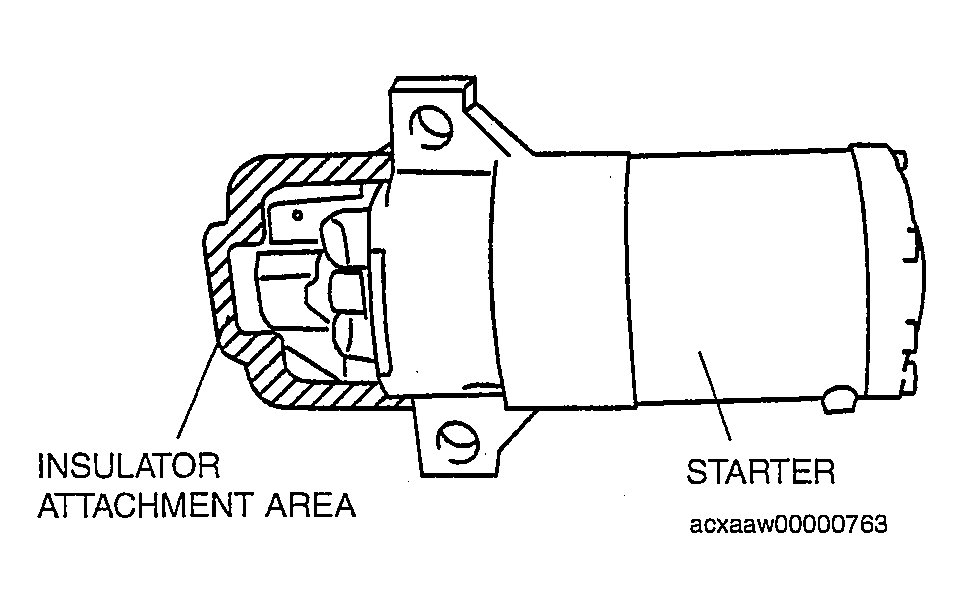

Fig 2: Identifying Insulator Attachment Area
Attach a new insulator to the starter.

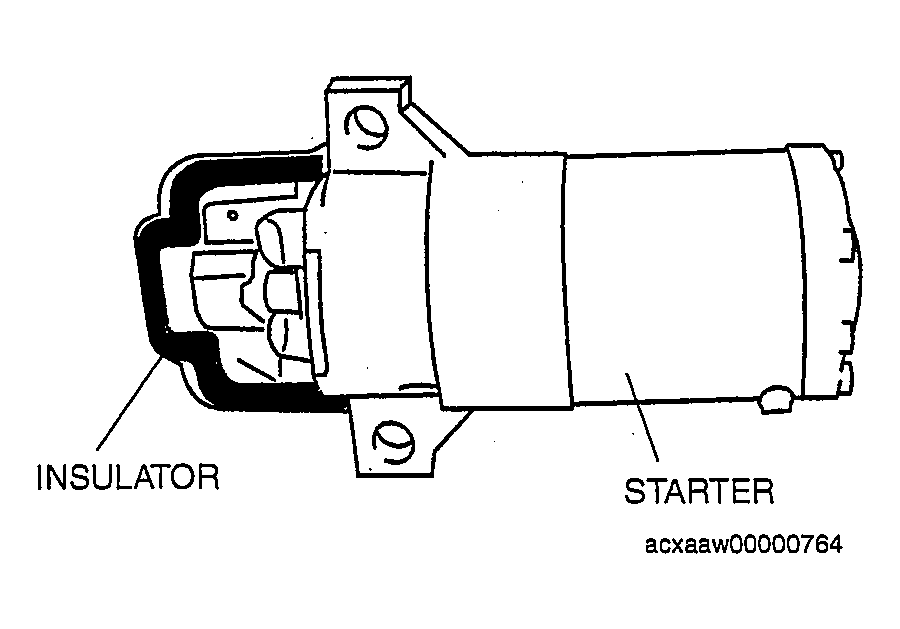

Fig 3: Identifying New Starter Insulator
