Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for open or short circuit (continuity check).

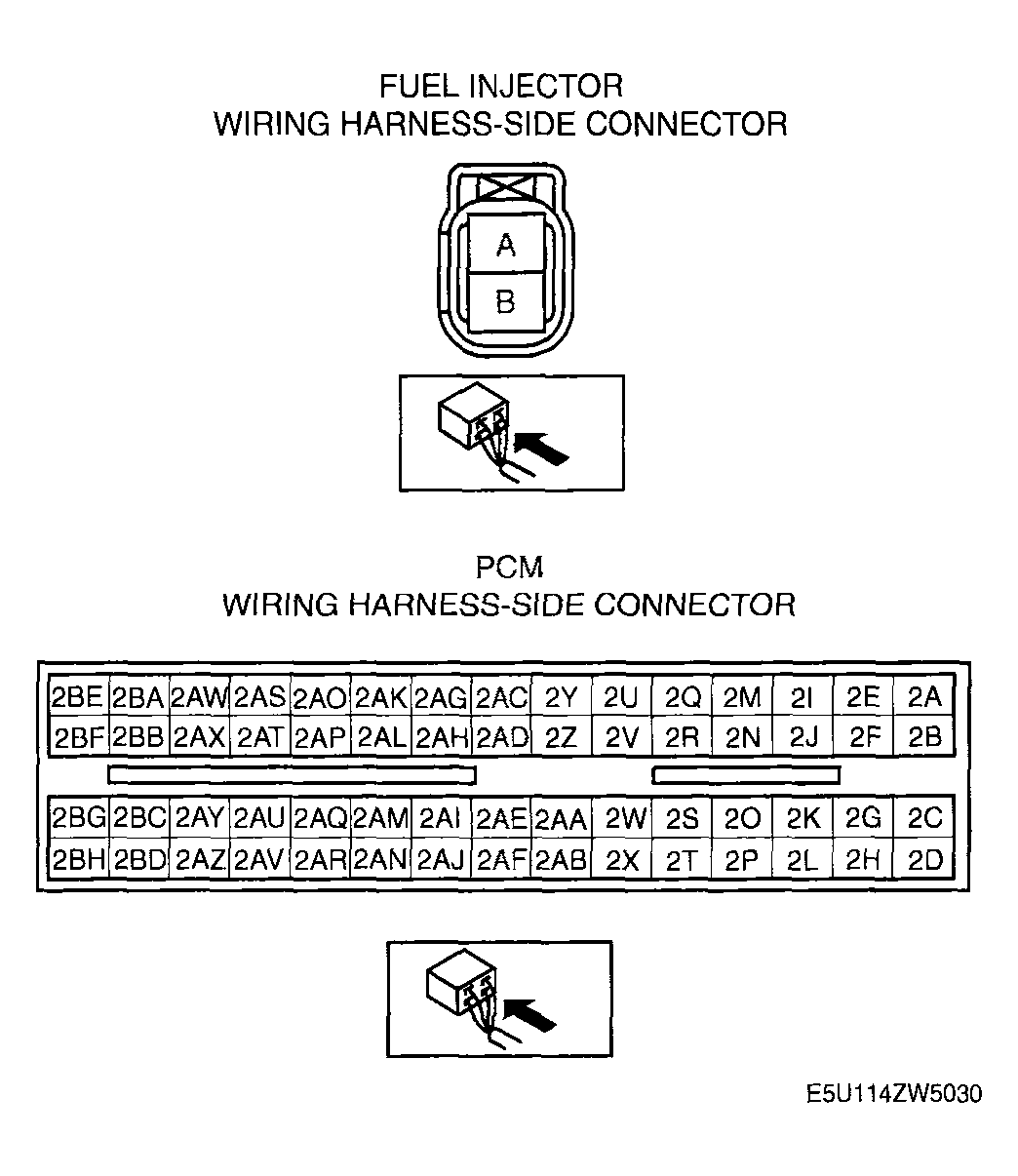

Fig 1: Identifying Fuel Injector Connector & PCM Connector Terminal
G04317943Courtesy of MAZDA MOTORS CORP.
