DSC Configuration

Connect the M-MDS or equivalent to the DLC-2.

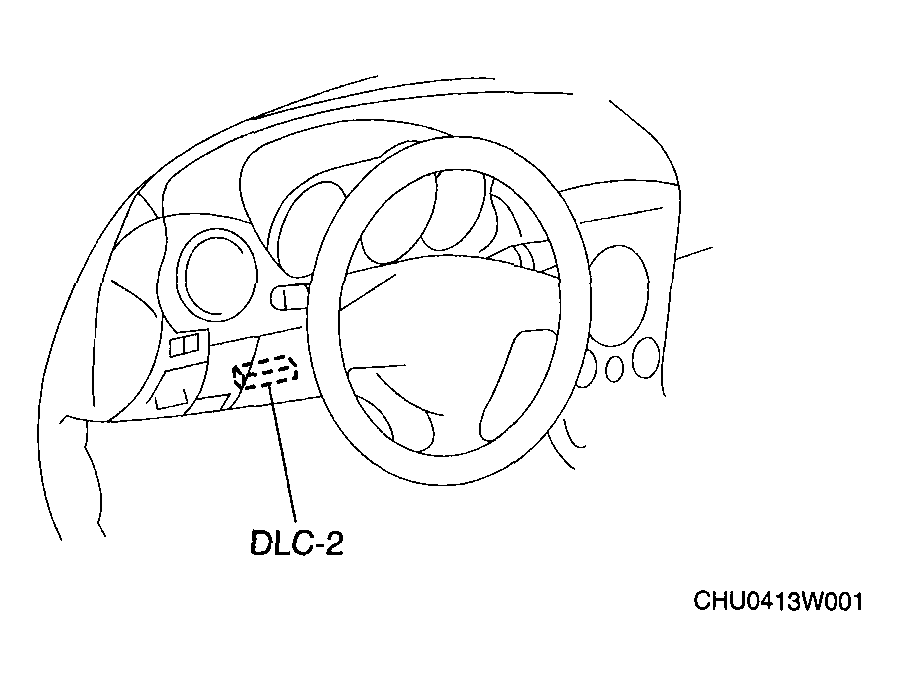

Fig 1: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.
After the vehicle is identified, from the initial screen select the following items:
- When using the IDS (laptop PC)
  1. Select the "Module Programming"
- When using the PDS (Pocket PC)
  1. Select the "Programming"
  2. Select the "Module Programming"
Select "Programmable Module Installation".
Select "ABS/TCS".
Perform the configuration according to the directions on the screen.
Retrieve DTCs using the M-MDS, then verify if DTCs are present.
Clear DTCs using the M-MDS or equivalent, then verify that there is no DTC present.
- If a DTC is present, perform the applicable DTC inspection. (See ONBOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL] ).
