Control System Location Index

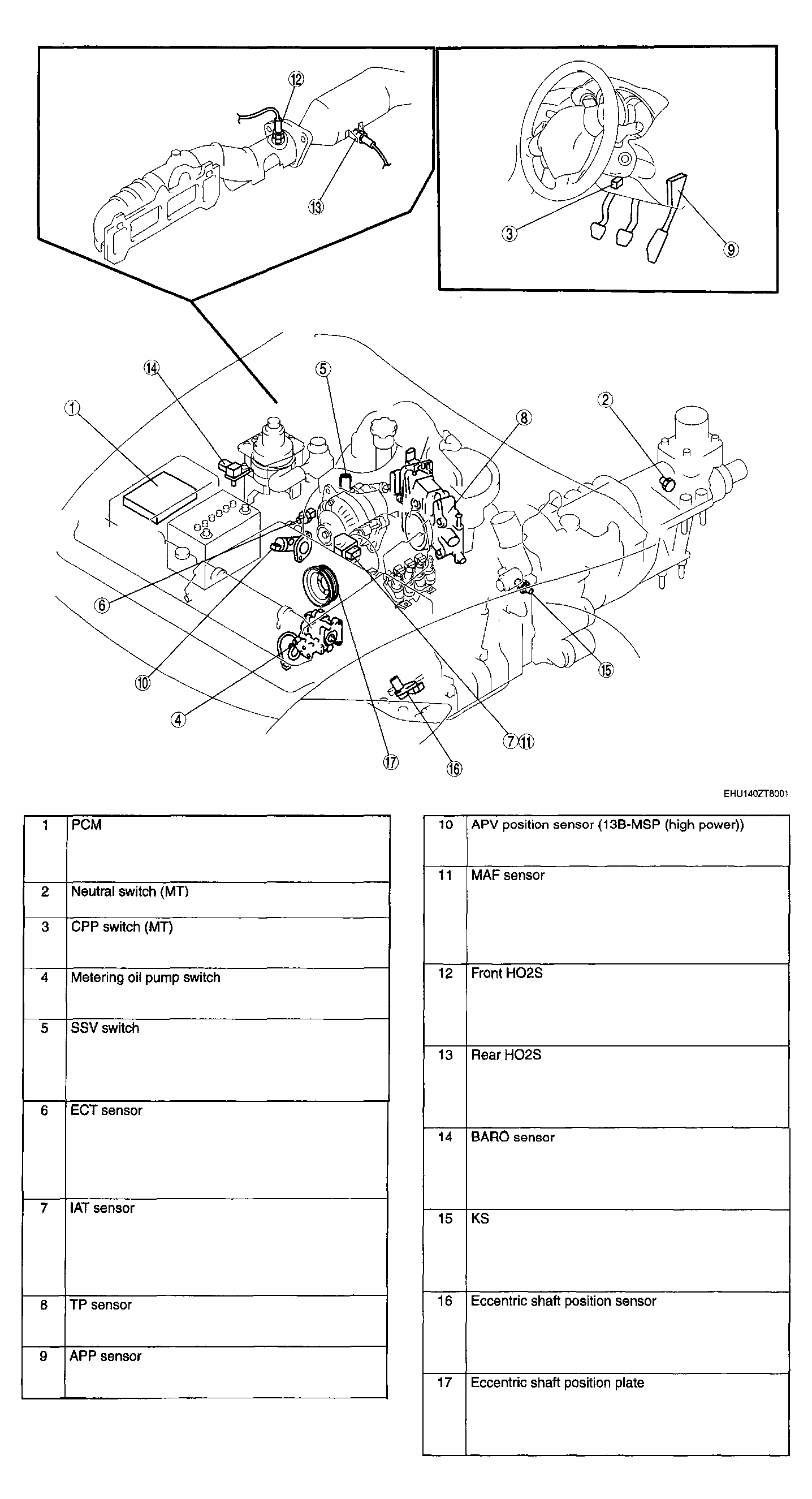

Fig 1: Identifying Control System Location

G04562970

Courtesy of MAZDA MOTORS CORP.
