Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Disconnect the eccentric shaft position sensor connector.
  3. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)

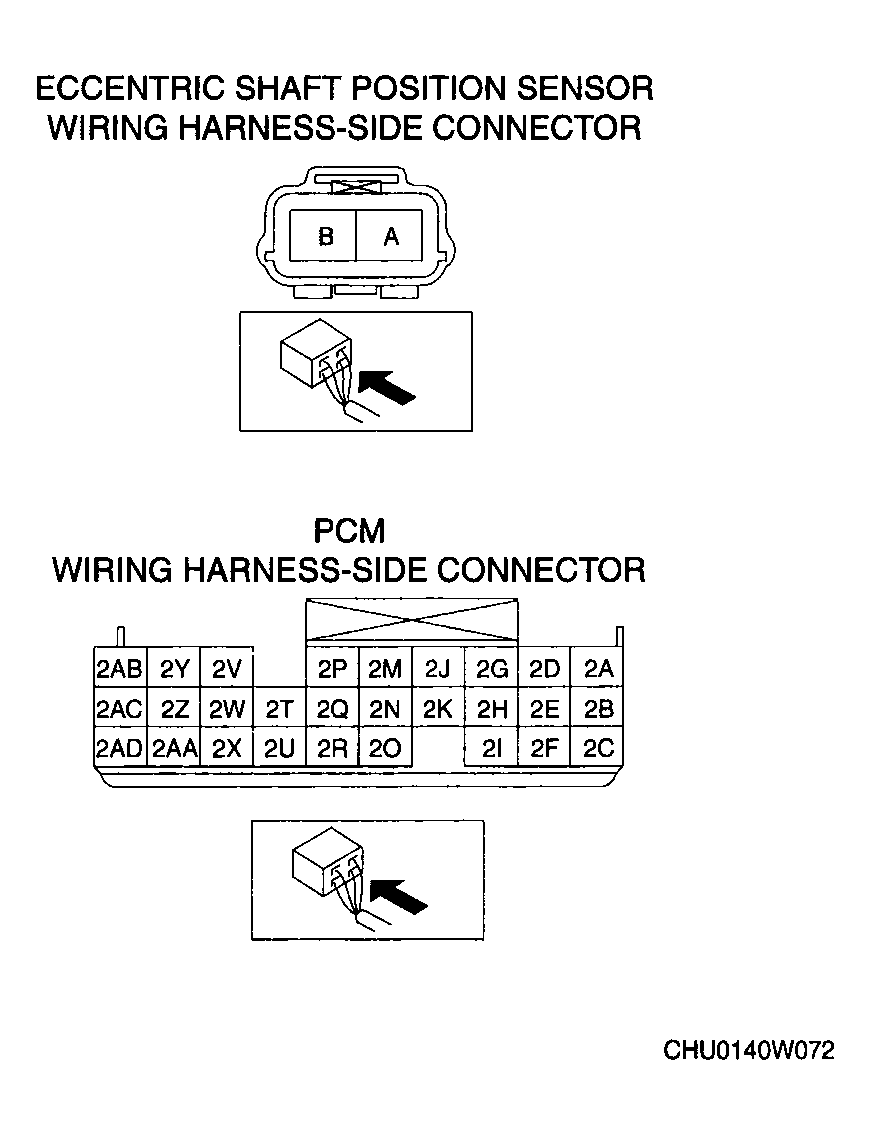

    Fig 1: Identifying Eccentric Shaft Position Sensor & PCM Wiring Harness Side Connector Terminals
    G04563029Courtesy of MAZDA MOTORS CORP.
