Pcm Configuration

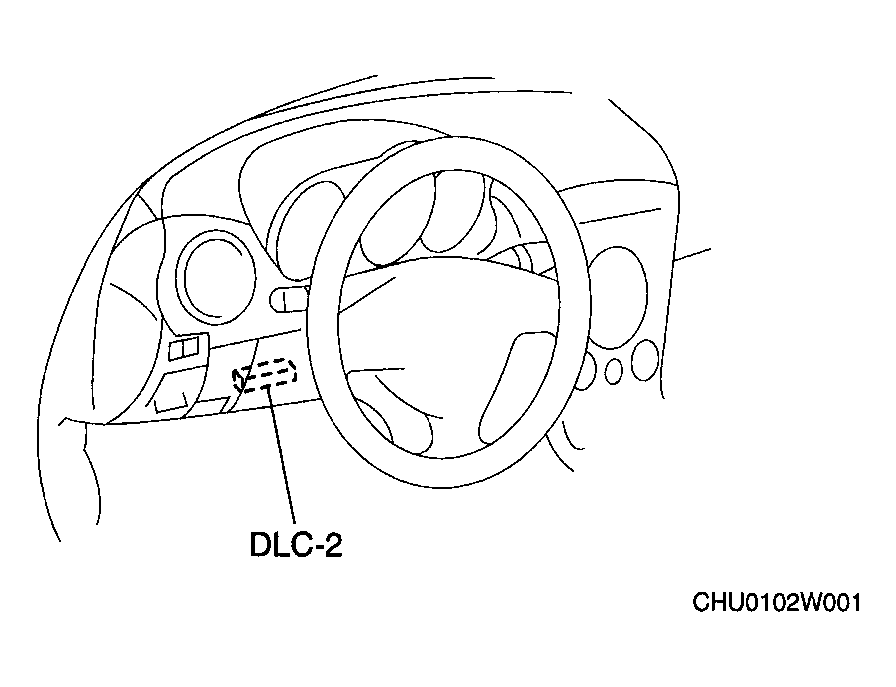

- Connect the M-MDS or equivalent to the DLC-2.
- Set up the M-MDS or equivalent (including the vehicle recognition).
- Select "Module Programming".
- Select "Programmable Module Installation".
- Select "PCM" and perform procedures according to directions on the M-MDS or equivalent screen.
NOTE:
- If the PCM is replaced with a new one, the PCM stores DTC P0602 and illuminates the MIL even though no malfunction is detected. This means the PCM has not been configured yet.
Courtesy of MAZDA MOTORS CORP.
- Retrieve DTCs using the M-MDS or equivalent and verify that there is no DTC present.
- If any DTC is present, perform applicable DTC inspection. (See
DTC TABLE.
)
