Home >> Mazda >> 2008 >> 5 Touring, 2.3 L >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (L3) >> Neutral Switch Inspection [L3] >> Circuit Open/Short Inspection >> Notes

Circuit Open/Short Inspection: Notes

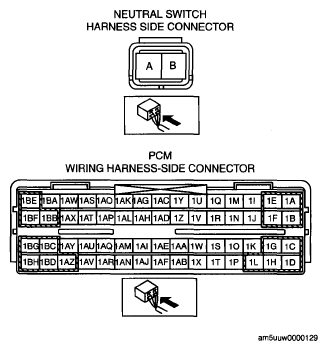

Fig 1: Identifying PCM And Neutral Switch Connector Terminals
G05543218Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for an open or short circuit. (Continuity inspection)
