Removal and Installation

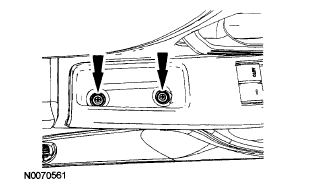

Fig 1: Removing Door Trim Panel Finish Panel Screws
G00461778Courtesy of MAZDA MOTORS CORP.
  1. Remove the 2 door trim panel finish panel screws.

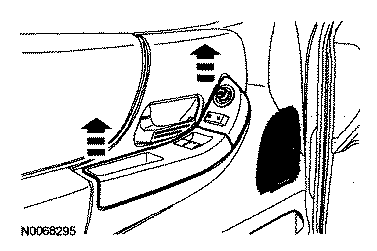

    Fig 2: Removing & Installing Front Door Switch Panel
    G00461773Courtesy of MAZDA MOTORS CORP.
  2. Remove the door trim panel finish panel.
    • Disconnect the electrical connector.
    Fig 3: Window Control Switch From Door Trim Panel Finish Panel
    G00461779Courtesy of MAZDA MOTORS CORP.
  3. Remove the Window control switch from the door trim panel finish panel.
  4. To install, reverse the removal procedure.
