Removal and Installation Note

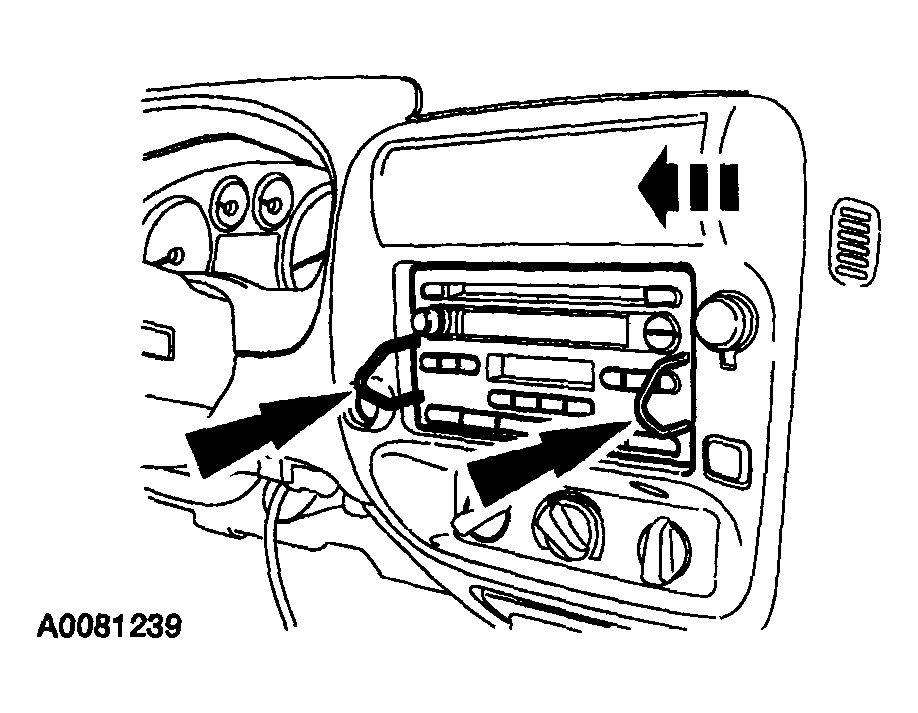

Fig 1: View Of Audio Unit Removal Tool

Courtesy of MAZDA MOTORS CORP.

Remove the audio unit.
- Insert the removal tool.
- Remove and support the audio unit.

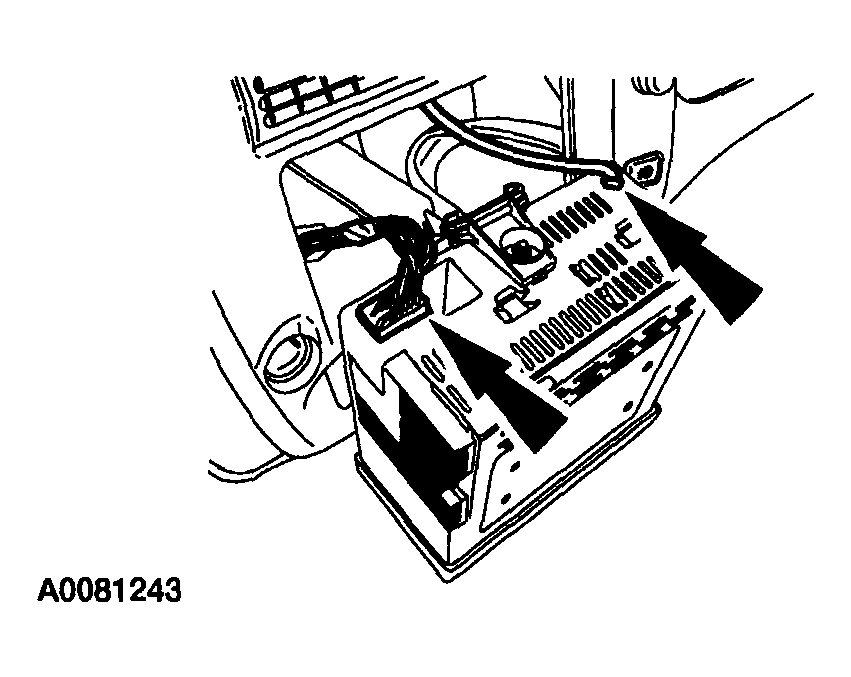

Fig 2: Identifying Audio Unit Electrical Connector And Antenna Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the audio unit electrical connector and antenna cable.

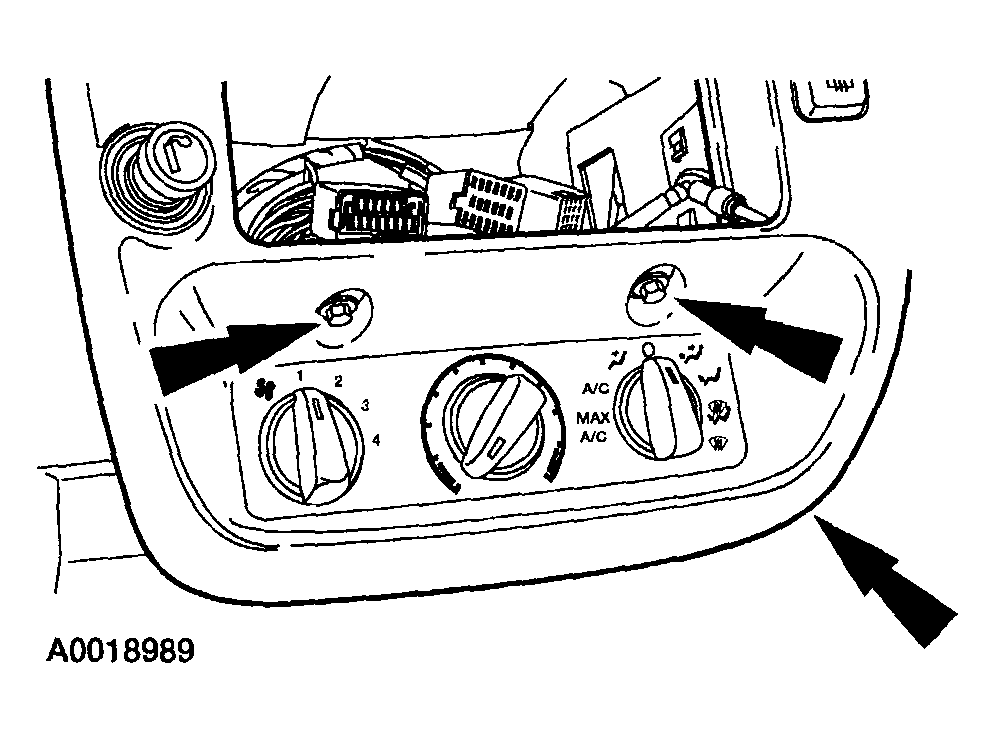

Fig 3: Identifying Instrument Panel Finish Panel Screws
Courtesy of MAZDA MOTORS CORP.
Remove the screws. Disengage the spring clips. Remove the instrument panel finish panel.

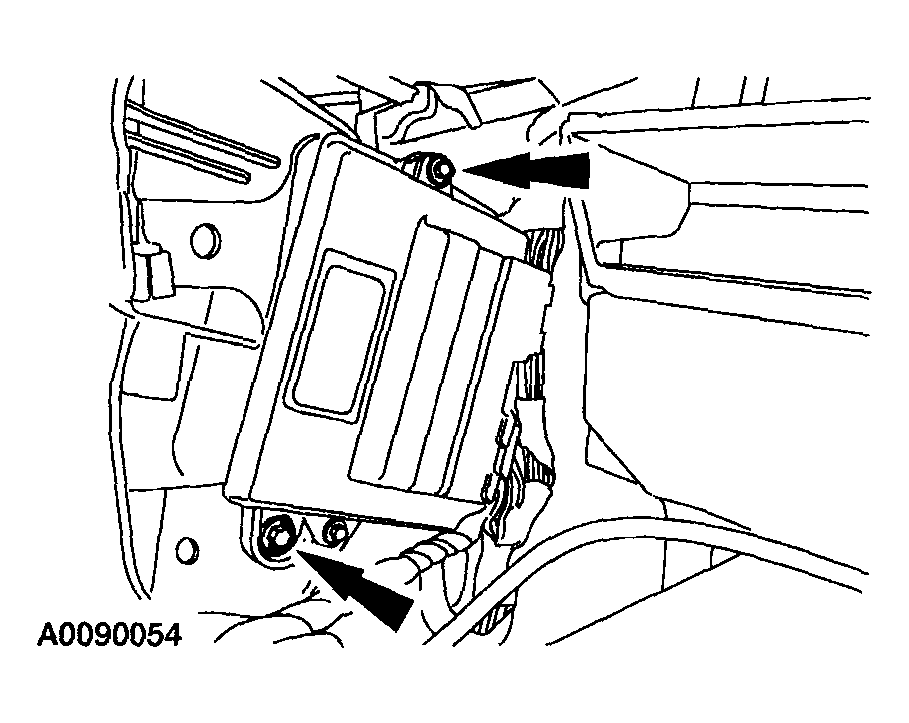

Fig 4: Locating 4WD Control Module Mounting Screws
Courtesy of MAZDA MOTORS CORP.
Remove the 4WD control module.
1. Disengage the locking tangs and remove the harness connectors.
2. Remove the screws.
3. Remove the 4WD control module.
To install, reverse the removal procedure.
