Electrical System: Fuse: Replacement

When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse fails again, the circuit probably has a short and the wiring should be checked. Be sure the negative battery terminal is disconnected before replacing a main fuse. When replacing a pullout fuse, use the fuse puller.

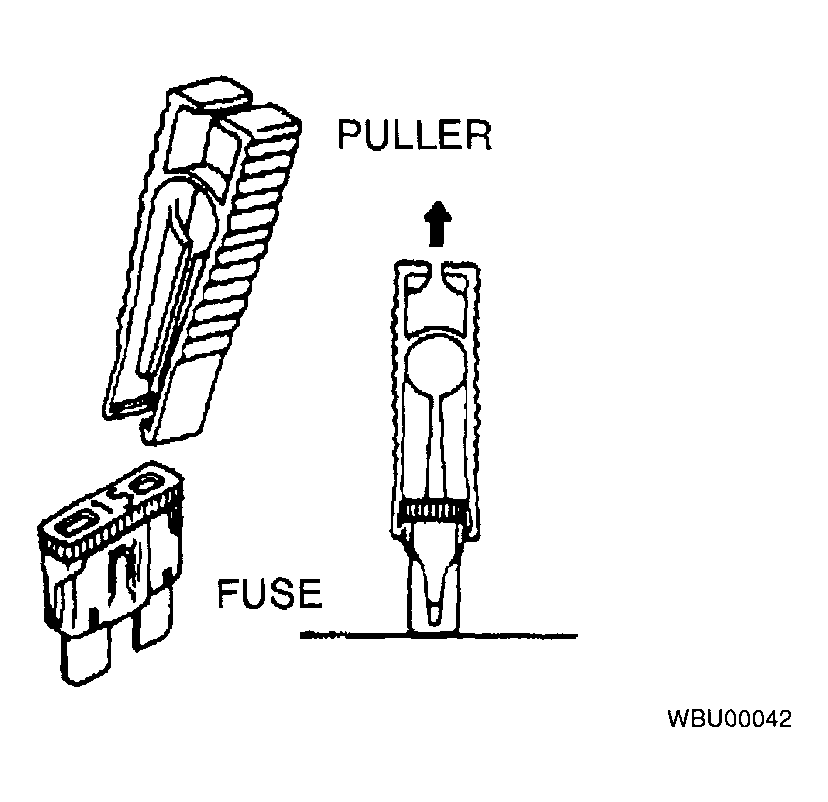

Fig 1: Identifying Fuse
G04306882Courtesy of MAZDA MOTORS CORP.
